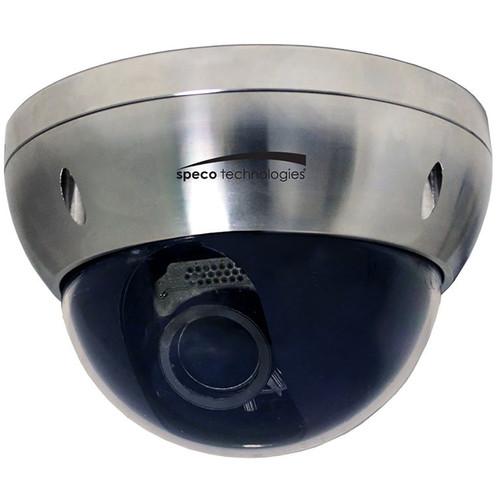

User Manual for Speco Technologies Intensifier T Series 2MP HD-TVI Stainless Steel Waterproof Outdoor Dome Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies Intensifier T Series 2MP
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies Intensifier T Series 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the Intensifier T Series 2MP HD-TVI Stainless Steel Waterproof Outdoor Dome Camera from Speco Technologies. This camera features an IP68-rated stainless steel casing that allows it to be submerged in water to a depth of 3.3'. Its 1/3" progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps over standard coax cable, thanks to HD-TVI technology. Adjust the 2.8mm lens using the 3-axis gimbal to direct its 92° field of view to the needed area. Intensifier T technology, WDR, and automatic day/night helps the camera produce clear images in varying lighting conditions. - HD video over coax using HD-TVI technology
- 2MP 1/3" progressive scan CMOS sensor captures 1080p video at up to 30 fps
- Intensifier T technology amplifies ambient light for clearer video
- Wide Dynamic Range for accurate images in varying lighting conditions
- Up to 1600' signal distance
- 960H video output for additional viewing options
- 12 VDC or 24 VAC operation
- IP68-rated enclosure for use outdoors
- Waterproof to a depth of 3.3'
UPC: 030519021739 In the Box Speco Technologies Intensifier T Series 2MP HD-TVI Stainless Steel Waterproof Outdoor Dome Camera Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies Intensifier T Series 2MP HD-TVI Stainless Steel Waterproof Outdoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies HT724ST8 Specs | Image Sensor | 2 MP 1/3" progressive scan CMOS sensor | | Resolution | 1920 x 1080 at 30 fps | | Lens | 2.8mm fixed | | Field of View | Horizontal: 80°
Vertical: 64°
Diagonal: 92° | | Minimum Illumination | 0.001 lux | | Effective Pixels | 1984 x 1105 | | Total Pixels | 2000 x 1121 | | Signal System | NTSC | | S/N Ratio | 50 dB | | Video Output | 1 V p-p, 75 Ohms
Additional analog output for 960H resolution | | Electronic Shutter Speed | Auto, manual (1/30 to 1/30,000 sec) | | OSD | Supported via UTC | | Backlight Compensation | BLC, HLC, off | | Day/Night | Color, B&W, auto, ext | | Automatic Gain Control | Level adjustable (0-10) | | White Balance | ATW, push, manual | | Sense-Up | 2 to 32x (adjustable) | | Test Monitor Output | CVBS (yellow BNC) | | Intensifier | Auto, off (selectable 2 to 512x) | | Motion Detection | On, off (4 programmable zones) | | Privacy Masking | On, off (16 programmable zones) | | Digital Noise Reduction | Speco DNR (off, low, med, high) | | Sharpness | On, off (level adjustable) | | Mirror | On, off | | Power Supply | 12 VDC or 24 VAC (power supplies available separately) | | Power Consumption | 12 VDC, 150 mA
24 VAC, 2 W | | IP Rating | IP68 | | Submersion | Up to 3.3' (1 m) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Dimensions | 3.5 x 5.1" (8.8 x 13 cm) | | Weight | 4 lb (1.8 kg) |
