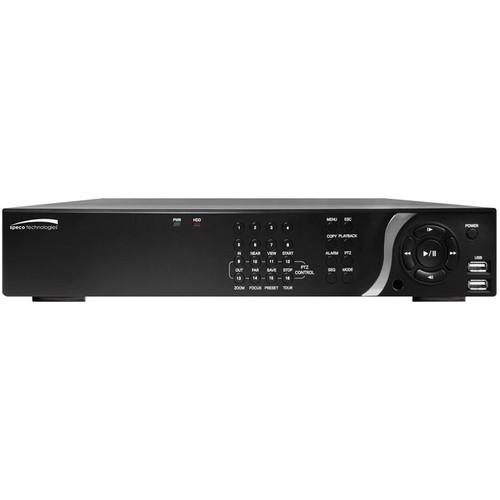

User Manual for Speco Technologies N16NSF 16-Channel 1080p NVR with 8TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies N16NSF 16-Channel 1080p NVR
- Product category: Network Video Recorders (NVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Network Video Recorders (NVRs)
|
User manual for the Speco Technologies N16NSF 16-Channel 1080p NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The N16NSF 16-Channel 1080p NVR with 8TB HDD from Speco Technologies records video onto its preinstalled 8TB HDD and allows for 1920 x 1080 recording and play back video at up to 480 fps. It features two-way audio support and offers remote monitoring and configuration via PC web browsers and mobile devices. - 16-channel NVR records up to 1920 x 1080 video resolution at up to 480 fps
- Dual network ports for isolating IP camera network traffic and remote network
- Supports H.264 compression profiles including baseline, main, and high
- Plug-and-play feature with Speco's OnSIP/VIP/ZIP cameras
- Network video recorder with free DDNS server
- Digital Deterrent triggers audio message via motion detection or sensor
- Manual or programmable recording on motion detection, sensor, schedule, or continuous
- Supports wireless access point for viewing and configuration
- Built-in S.M.A.R.T. Technology (Self-Monitoring, Analysis and Reporting, Technology for HDD)
- USB 2.0 port for snapshot and video clip export
- EZ Camera quickly discovers and installs IP cameras
- EZ Setup for quick system setup
- EZ Network for quick setup on a network
- EZ Search to quickly search events from thumbnails
- EZ Record allows you to quickly set up recording resolutions and recording type
- EZ Copy feature to automatically copy what you are playing onto a USB flash drive
UPC: 030519010313 In the Box Speco Technologies N16NSF 16-Channel 1080p NVR with 8TB HDD Software CD Mouse Remote Control 2 x AAA Batteries Power Adapter and Power Cable Audio Cable Rackmount Ears Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies N16NSF 16-Channel 1080p NVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies N16NSF8TB Specs | | | Input | IP Camera: 16
Resolution: Maximum 1920 x 1080 | | Maximum Bit Rate | 40 Mbps | | Output | Main Monitor: VGA and HDMI
Sub Monitor: CVBS | | | | Input | IP Camera (Network): 16 (channel 1-4: RCA, 3-16: audio cable)
RCA: 16 | | Output | RCA: 1 | | Audio Codec | G.711 | | | | Sensor Input | IP Camera (Network): 16
Local Input (Terminal Block): 4 | | Alarm Output | Local (Terminal Block): 1 | | Motion Detection (From IP Camera) | Yes | | | | LAN | IP Camera, Auto Connection: 10/100/1000Base-T | | Protocols | TCP/IP, UDP, DHCP, HTTP, NTP, SMTP, TRP, RTSP, ONVIF | | | | Compression | H.264 (baseline, main, and high profile) | | Resolutions & Frame Rates | 480 fps at 1920 x 1080 and 1280 x 720 | | Recording Mode | Continuous / Motion / Sensor / Schedule / Manual / Continuous and Sensor / Continuous and Motion | | Pre-Recording Function | Maximum 20 minutes | | Post Recording | Maximum 60 seconds | | | | Search | EZ Search, date/time, event, archive, log | | Multi-Decoding | 1, 4, 9, 16 | | Playback Speed | 0.25, 0.5, 2, 4, 8, 16, 32, 64x | | | | Media | USB drive, external HDD, network | | File Format | BMP, AVI, proprietary format | | Large Backup | Yes (maximum 24 hours) | | | | Storage Capacity | 8 TB | | HDD | Capacity per HDD: Up to 4 TB
Number of HDD Bays: 2
e-SATA: 1 | | USB | Front: 2
Rear: 1 | | | | Input Method | Front buttons, IR mouse, keyboard controller | | | | Viewer | Smartphone Viewer: iPad / iPhone / Android
PC Web Viewer: Windows (IE, Chrome, Firefox, Safari) | | Client | PC: SpecoTech Multi-Client Viewer and Secure Guard VMS
MAC: Speco Client for MAC and Secure Guard VMS | | | | Power Supply Voltage | 110-240 VDC, 50/60 Hz, 250 W (maximum) | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | 14 to 122°F (-10 to 50°C) | | | | Dimensions (W x H x D) | 15 x 2.8 x 13.4" (38 x 72 x 340 mm) | | Weight | 14 lb (6.4 kg) | | | | Package Weight | 15.3 lb | | Box Dimensions (LxWxH) | 17.7 x 16.1 x 5.9" |
