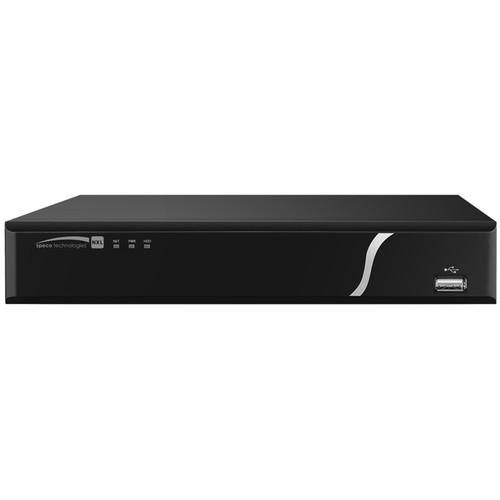

User Manual for Speco Technologies N4NXL 4-Channel 6MP PoE NVR with 1TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies N4NXL 4-Channel 6MP PoE
- Product category: Network Video Recorders (NVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Network Video Recorders (NVRs)
|
User manual for the Speco Technologies N4NXL 4-Channel 6MP PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Stream and record up to four video channels with the N4NXL PoE+ NVR from Speco Technologies at resolutions of up to 6MP. Equipped with one SATA port, this NVR can accommodate up to 6TB of internal storage (1TB preinstalled). The recorder uses H.264 compression to keep file sizes manageable while upholding recording and playback quality.
The NVR's interface includes audio ports for two-way communication, as well as HDMI and VGA connections for video output. An integrated PoE+ switch provides power and video connection to up to four IP cameras, simplifying installation. ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - EZ wizards for easy setup and use
- Supports up to 6MP resolution for recording and playback on all channels
- Up to 80 Mb/s total recording bandwidth
- Built-in PoE+ for all channels
- Plug & play functionality with isolated traffic on PoE ports with Speco Technologies IP cameras
- Find and install IP cameras on local network without needing to locate the cameras manually
- Continuous, Motion, and Sensor recording modes
- Bookmark pins on playback for easy reference
- Instant playback of individual channels directly from the live-view screen
- Smart (Museum) Search allows quick search for specific video events without the need for motion setup
- Network loss triggers automatic recording to SD card and automatic transfer back to NVR when network is restored (with select IP camera models)
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Simultaneous HDMI and VGA video output
- Two-way audio communication
- Digital Deterrent for triggering audio message via an event
- ONVIF Profile S compliant
In the Box Speco Technologies N4NXL 4-Channel 6MP PoE+ NVR with 1TB HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies N4NXL 4-Channel 6MP PoE NVR with 1TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies N4NXL Specs | | | Input Channels | 4 | | Maximum Input Resolution | 6 MP | | Video Output | HDMI and VGA | | Output Resolutions | 1920 x 1080, 1280 x 1024, 1280 x 720, and 1024 x 768 | | Display Split | 1, 4 | | | | Inputs | IP Cameras (Network): 4 channels
Local: 1 x RCA | | Output | Local: 1 x RCA | | Two-Way Audio | Yes | | Audio Codec | G.711 | | | | Compression | H.264 (high, main, and baseline profiles) | | Resolution | 6 MP max. | | Bandwidth | 80 Mb/s max. | | Bit Rate | 8 Mb/s max. per camera | | Recording Modes | Continuous, Motion, Sensor, Schedule, and Manual | | Pre-Recording | 30 seconds max. | | Post Recording | 5 minutes max. | | | | Search Modes | EZ Search, Date/Time, and Smart Search | | Multi-Decoding | 1, 4 | | Playback Speeds | x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, and x16 | | | | Media | USB flash drive, USB HDD, and network | | Format | ASF, JPG, and proprietary format | | | | Interface | 1 x SATA II port | | Capacity | Up to 6 TB
1 TB preinstalled | | USB Ports | 2 x USB 2.0 | | | | Sensor Input | IP Cameras: 4 | | | | PoE | 4 x (IEEE 802.3at) PoE+ | | Ethernet | 10/100Base-T | | Throughput | 48 Mb/s max. | | Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS, DDNS, SMTP, and NTP | | | | Mobile Client | Speco One | | Web Viewer | Windows: Internet Explorer and Firefox
Mac: Safari | | PC Client | SecureGuard VMS | | Remote Setup and Upgrade | Yes | | Simultaneous User Access | 128 users max. | | Other Features | Digital zoom, DST (daylight savings), email notifications, and NTP (Network Time Protocol) | | | | Power Supply | 48 VDC, 1.2 A | | Total PoE Budget | 50 W | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10 to 90% RH | | Dimensions | 10.2 x 1.8 x 8.7" / 25.9 x 4.6 x 22.1 cm | | Weight | Not specified by manufacturer |
