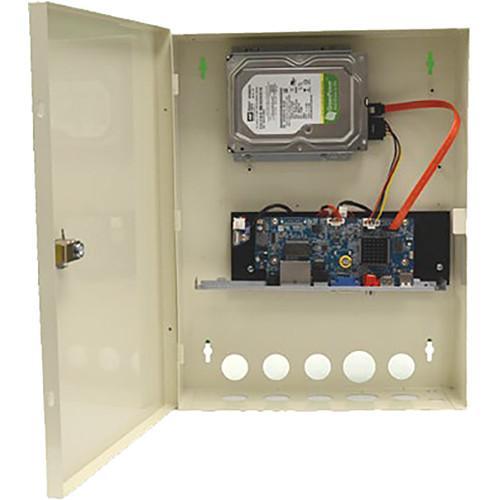

User Manual for Speco Technologies N4WNXL 4-Channel 6MP NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies N4WNXL 4-Channel 6MP NVR
- Product category: Network Video Recorders (NVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Network Video Recorders (NVRs)
|
User manual for the Speco Technologies N4WNXL 4-Channel 6MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Stream and record up to four channels of video with the wall-mountable N4WNXL NVR from Speco Technologies at resolutions of up to 6MP. Equipped with one SATA port, this NVR can accommodate up to 6TB of internal storage (4TB preinstalled). The recorder uses H.264 compression to keep file sizes manageable while maintaining recording and playback quality. An integrated PoE+ on switch enables you to power up to four IP cameras directly via their network connection for a clean, clutter-free installation.
The recorder's connectivity interface includes two USB 2.0 ports, audio input and output for two-way communication, and HDMI & VGA simultaneous video outputs. ONVIF compliance ensures compatibility with a wide range of surveillance devices. - EZ wizards for easy setup and use
- Up to 6MP recording and playback resolution on all channels
- Up to 80 Mb/s total recording bandwidth
- Built-in four-channel PoE+ switch
- H.264 video compression for efficient storage and bandwidth use
- Free US-based DDNS server access
- Isolated traffic on PoE+ ports with Speco Technologies IP cameras
- Continuous, Motion, and Sensor recording modes
- Bookmark pins on playback for easy reference
- Instant playback allows for playback of one channel while the other channels stay in Live mode
- Split view with customizable channel placement
- Network loss triggers automatic recording to SD card; automatic transfer back to NVR when network is restored
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Simultaneous HDMI and VGA video output
- Built-in S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology) for HDD
- Input and output for two-way audio communication with separately available speaker
- Digital Deterrent for event-triggered pre-recorded or live audio messages (with separately available speaker)
- ONVIF Profile S compliant
UPC: 030519026413 In the Box Speco Technologies N4WNXL 4-Channel 6MP NVR with 4TB HDD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies N4WNXL 4-Channel 6MP NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies N4WNXL Specs | | | Input Channels | 4 | | Resolution | Up to 6 MP | | | | Ports | 1 x HDMI
1 x VGA | | Resolutions | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Split Screen | 1, 4 | | | | Inputs | Local: 1 x RCA
IP Cameras: 4 | | Outputs | Local: 1 x RCA | | Audio Codec | G.711 | | | | Compression | H.264 (High, Main, and Baseline Profiles) | | Resolution | Up to 6 MP | | Bandwidth | Up to 80 Mb/s | | Recording Modes | Continuous, Motion, Sensor, Schedule, and Manual | | Pre-Recording | 30 Seconds Max. | | Post Recording | 5 Minutes Max. | | | | Search Modes | EZ Search, Date/Time, and Smart Search | | Multi-Decoding | 1, 4, | | Playback Speed | x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16 | | | | Media | USB Flash Drive, External USB HDD, and Network | | File Format | Proprietary, ASF, JPG | | | | Interface | 1 x SATA II Port | | Capacity | Up to 6 TB
4 TB Preinstalled | | USB Ports | 2 x USB 2.0 | | | | PoE+ | 4 x PoE+ IEEE 802.3at | | Ethernet | 10/100Base-T | | Throughput | Up to 48 Mb/s | | Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS, DDNS, SMTP, NTP | | | | Mobile Client | Speco One | | Web Viewer | Windows: Internet Explorer, Firefox
Mac: Safari | | Windows Client | SecureGuard VMS | | Remote Setup and Upgrade | Supported | | Simultaneous User Access | Max. 128 Users | | | | Digital Deterrent | Yes | | Dynamic DNS | Yes, Free Speco Technologies DDNS | | Other Features | Digital Zoom, DST (Daylight Savings), Email Notifications, and NTP (Network Time Protocol) | | | | Power Supply | 48 VDC, 1.2 A | | Total PoE Budget | 50 W | | | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Relative Humidity | 10 to 90% RH | | Dimensions | 11.5 x 15.0 x 3.5" / 29.2 x 38.1 x 8.9 cm | | Weight | Not Specified by Manufacturer |
