User Manual for Speco Technologies N8NSP 8-Channel NVR with 6TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies N8NSP 8-Channel NVR with
- Product category: Network Video Recorders (NVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Network Video Recorders (NVRs)
|
User manual for the Speco Technologies N8NSP 8-Channel NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

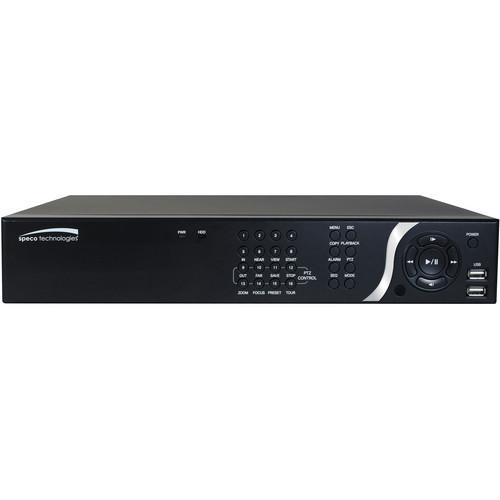

Product description The N8NSP 8-Channel NVR with 6TB HDD from Speco Technologies supports 1920 x 1080 resolution recording and playback from up to 8 cameras and comes with a preinstalled 6TB HDD to store recorded video. It supports H.264 compression for high-quality playback and records video at up to 240 fps in 1080p and 720p. This NVR has EZ Wizards to make setup, configuration, and maintenance easy. HDMI and VGA outputs provide easy connection to monitors for real-time monitoring, and built-in RJ45 PoE ports provide power to the connected cameras. - 8-channel NVR with preinstalled 6TB HDD for storing recorded video
- 1920 x 1080 resolution recording and playback at up to 240 fps using H.264 compression for network bandwidth efficiency
- EZ Wizards including Camera, Setup, Network, and Record make camera setup, configuration, and maintenance easy
- EZ Search allows you to easily search events from thumbnail view
- EZ Copy automatically copies viewed video files to a USB flash drive (available separately)
- Compatible with Windows and Mac computers
- Remote monitoring via web browsers and mobile app for iOS and Android devices
UPC: 030519011402 In the Box Speco Technologies N8NSP 8-Channel NVR with 6TB HDD Software CD Remote Control Mouse Mounting Hardware Rackmount and Hardware Power Adapter Audio Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies N8NSP 8-Channel NVR with 6TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies N8NSP Specs | | | Input | IP Camera: 8
Resolution: Maximum 1920 x 1080 | | Output | Main Monitor: HDMI and VGA
Sub Monitor: CVBS | | | | Input | IP Input (Network): 8
Local Input (RCA): 8 | | Output | Local Output (RCA): 1 | | Audio Codec | G.711 | | | | Sensor Input | IP Input (Network): 8
Local Input (Terminal Block): 4 | | Alarm Output | Local (Terminal Block): 1 | | Digital Deterrent | Default and up to 8 custom audio files | | | | Compression | H.264 (baseline, main, and high profile) | | Multi-Operation | Quadplex (play, record, network, backup) | | Resolutions & Frame Rates | D1: 240 fps
1280 x 720: 240 fps
1920 x 1080: 240 fps | | Recording Mode | Continuous / Schedule / Motion / Sensor / Manual / Continuous + Sensor / Continuous + Motion | | Pre-Recording Function | Maximum 20 minutes | | Post Recording | Maximum 60 seconds | | Motion Detection | Motion detection configured via IP camera | | | | Multi-Decoding | 1, 4, 8 | | Search | EZ Search, date/time, event, archive, log | | | | HDD | Interface: SATA
Capacity of 1 HDD: 4 TB
Internal HDDs: 2
eSATA: 1 | | USB | 3 ports | | Storage Capacity | Preinstalled: 6 TB | | Backup | USB flash drive, external HDD, or network | | | | Menu Display | GUI | | Input Method | Front buttons, IR, mouse, keyboard controller | | | | Interface | 10/100/1000Base-TX Ethernet | | Maximum Throughput | 40 Mbps | | | | Viewer | Mobile Viewer: iOS and Android devices
Web Viewer: Internet Explorer, Chrome, Firefox, Safari (Live, Search, Backup, PTZ, Remote Setup) | | Client | PC: SpecoTech Multi-Client Viewer and SecureGuard VMS (Live, Search, Backup, PTZ, Remote Setup)
Mac: Speco Client for MAC and SecureGuard VMS (Live, Search, Backup, PTZ, Remote Setup) | | | | PoE Standard | 802.3af | | PoE Power | 96 W | | Power Supply Voltage | 12 VDC @ 5 A, 48 VDC at 2 A | | | | Operating Temperature | 41 to 104°F (5 to 40°C) | | Storage Temperature | 14 to 122°F (-10 to 50°C) | | Operating Relative Humidity | 20-80% | | | | DDNS | Speco DDNS (free) | | Software Upgrade | Via USB and remote software upgrade | | Dimensions (W x H x D) | 15 x 2.8 x 13.4" (381 x 71.8 x 340.4 mm) | | Weight | 12 lb (5.44 kg) | | | | Package Weight | 14.3 lb | | Box Dimensions (LxWxH) | 17.7 x 16.4 x 5.9" |
