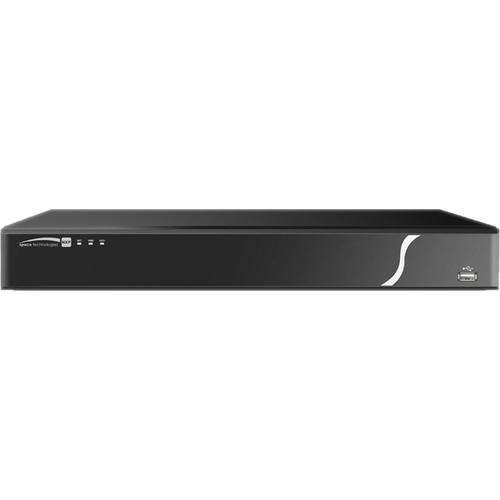

User Manual for Speco Technologies N8NXP 8-Channel 4K PoE NVR with 8TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies N8NXP 8-Channel 4K PoE
- Product category: Network Video Recorders (NVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Network Video Recorders (NVRs)
|
User manual for the Speco Technologies N8NXP 8-Channel 4K PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Stream and record up to 8 channels of video with the N8NXP 8-Channel 4K NVR from Speco Technologies at resolutions up to 3840 x 2160. Featuring an integrated PoE+ switch, this NVR enables you to power up to eight network cameras directly via their network connection, without the need for an external power source or extra cables. The recorder comes with 8TB of HDD storage preinstalled and supports up to 16TB. It features two-way audio support and offers remote monitoring and configuration via PC web browsers and mobile devices. - EZ wizards for easy setup and use
- Supports up to 3840 x 2160 recording and playback resolution on all channels
- Up to 200 Mb/s total recording bandwidth
- Simultaneous HDMI and VGA video output
- Built-in PoE+ (IEEE 802.3at) for all channels
- H.265 and H.264 dual compression
- Plug-and-play functionality with isolated traffic on PoE+ ports with Speco Technologies IP cameras
- Find and install IP cameras on the local network without the need to locate the cameras manually
- Recording modes include Continuous, Motion, and Sensor
- Users can create bookmark pins on playback for easy reference
- Supports instant playback for individual channels directly from the live view screen
- Customizable channel view placement
- Network loss triggers automatic recording to SD card and automatically shifts back to NVR when network is restored
- Remote monitoring, recording, playback, configuration, software upgrades, and PTZ control via internet
- Built-in S.M.A.R.T (Self-Monitoring, Analysis and Reporting, Technology for HDD)
- Supports 2-way audio communication
- Digital Deterrent triggers audio message via an event
- ONVIF Profile S compliant
- Supports digital zoom, daylight saving time, email notifications, and NTP (network time protocol)
UPC: 030519022163 In the Box Speco Technologies N8NXP 8-Channel 4K PoE+ NVR with 8TB HDD Software CD Power Cable Mouse Ethernet Cable Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies N8NXP 8-Channel 4K PoE NVR with 8TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies NXP Series Specs | | | Max IP Channels | 8 | | Input Resolution | Maximum 3840 x 2160 | | Output Ports | 1 x HDMI and 1 x VGA | | Output Resolution | HDMI/VGA: 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | Split | Output Split View: 1, 4, 8 | | | | Input Channels | IP: 8 | | Input / Output | Local: 1 x RCA input / 1 x RCA output | | Codec | G.711 | | | | Compression | H.265 / H.264 | | Recording Resolution | Maximum 3840 x 2160 | | Maximum Bandwidth | 200 Mb/s | | Maximum Bit Rate | 20 Mb/s per channel | | Recording Modes | Continuous, Motion, Sensor, Schedule, and Manual | | Pre-Recording | 30 seconds maximum | | Post Recording | 5 minutes maximum | | | | Search | EZ Search, date/time | | Multi-Decoding | 1, 4, 8 | | Speed | x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16 | | | | Media | USB flash drive, USB HDD, and network | | File Formats | Proprietary format, ASF, and JPG | | | | Interface | SATA III | | Number of HDDs | Maximum 2 | | Capacity | 16 TB total maximum
8 TB preinstalled | | USB Ports | 1 x USB 3.0
1 x USB 2.0 | | | | Sensor Input | 4 local, 8 IP | | Alarm Output | 2 | | | | PoE | 8 x PoE+ (IEEE 802.3at) | | LAN | 10/100/1000Base-T (Gigabit) | | Throughput | 96 Mb/s max. | | Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS, DDNS, SMTP, and NTP | | | | Mobile Client Program | Speco One | | Web Viewer | Windows: Internet Explorer, Firefox
Mac: Safari (plugin required) | | PC Client Program | SecureGuard VMS | | Remote Setup | Setup and upgrade | | Maximum User Access | 128 users | | | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Total PoE Budget | 80 W | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Relative Humidity | 10 to 90% | | Dimensions | 14.8 x 2.1 x 12.9" / 37.6 x 5.3 x 32.8 cm | | Weight | Not specified by manufacturer |
