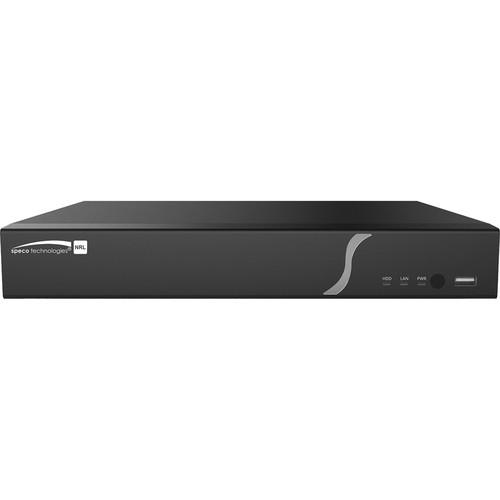

User Manual for Speco Technologies NRL Series 4-Channel 8MP NVR with 4TB HDD Click to enlarge the picture
Contents of the user manual for the Speco Technologies NRL Series 4-Channel 8MP
- Product category: Network Video Recorders (NVRs) Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Network Video Recorders (NVRs)
|
User manual for the Speco Technologies NRL Series 4-Channel 8MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Record from and manage up to 4 cameras with the NRL Series 4-Channel 8MP NVR with 4TB HDD from Speco Technologies at resolutions up to 3840 x 2160. Preinstalled with 4TB of HDD storage, the recorder can be expanded to host one SATA HDD with a maximum internal capacity of 8TB. H.265 and H.264 compressions keep file sizes manageable while maintaining the best quality possible. Two-way audio communication is supported.
This NVR supports simultaneous HDMI and VGA outputs, as well as up to 10 users. It complies with ONVIF version 2.3 for interoperability with cameras that are ONVIF compliant. - Easy video export via USB
- Built-in S.M.A.R.T (Self-Monitoring, Analysis and Reporting Technology for HDD)
- Smart Search with Speco Smart analytic cameras (available separately)
- Compatible with most cameras that comply with ONVIF profile S
- Plug-and-play feature with isolated traffic on PoE ports with Speco IP cameras (available separately)
- EZ Wizards simplify use and setup
- Find and install IP cameras on the local network without the need to locate the cameras manually
- Instant playback for individual channels directly from the live view screen
- Create bookmark pins on playback for easy reference
- Customizable channel view placement
- Smart analytics include abandoned object detection, missing object detection, and line crossing
- Recording modes include analytics, continuous, motion, sensor, schedule, and manual
- Alarm trigger events include recording, PTZ, alarm out, pop-up alarm preview, email, FTP, snapshot, buzzer & screen tips
- Free US-based DDNS and P2P services
- Compatible with Internet Explorer, SecureGuard VMS, and Speco Blue app for iOS and Android
In the Box Speco Technologies NRL Series 4-Channel 8MP NVR with 4TB HDD Optical Mouse 48V Adapter with Power Cord Remote Control Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies NRL Series 4-Channel 8MP NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies N4NRL Specs | | | Input | 4
IP Camera: H.264/H.265 Auto Detection (Maximum 8 MP) | | Output | HDMI: 3840 x 2160 Maximum Resolution
VGA: 1920 x 1080 Maximum Resolution | | | | Audio Input & Output | 1 x RCA, 4-Channel IPC Input
1 x Local Audio Output | | Audio Codecs | G.711A, G.711U | | | | Encoding Resolutions | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p | | Codecs | H.264/H.265 Auto Detection | | Maximum Frame Rate | Per Channel: Any Resolution at 30 fps | | Recording Modes | Analytics, Continuous, Motion, Sensor, Schedule, Manual | | Pre-Recording | Maximum 5 Seconds | | Post-Recording | Maximum 10 Minutes | | | | Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log | | Multi-Decoding | 1, 4 | | Playback Resolution | 8 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p | | Playback Functions | Play, Pause, FF, FB, Digital Zoom | | | | Media | USB Drive, USB Portable HDD, Network | | Format | JPG, AVI, ZIP (Player + Proprietary Data) | | | | HDD | 1 x SATA Port (8 TB Capacity) | | HDD Included | 4 TB Preinstalled | | USB Ports | 1 x Front
1 x Rear | | | | Trigger Events | Recording, PTZ, Alarm Out, Pop-Up Alarm Preview, Email, FTP, Snapshot, Buzzer, and Screen Tips | | | | Input Method | IR Remote, Mouse | | | | Ports | 4 x PoE (100M) | | Dynamic DNS | Free US-Based Speco P2P and DDNS Service | | Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP | | | | Mobile App | Speco Blue App for iOS and Android | | Web Viewer | Windows Internet Explorer | | Video Management Software | SecureGuard | | Maximum User Access | Maximum 10 Users Online (Web Client) | | | | Digital Zoom | Live and Playback, Free Size | | Analytics | Abandoned Object Detection, Missing Object Detection, Line Crossing | | ONVIF Conformance | ONVIF 2.3 | | S.M.A.R.T. | Temperature, Power On Time, Bad Sectors & Health | | | | Input Voltage | 48 VDC | | Power Consumption | ≤5 W (Without HDD) | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Humidity | 10 to 90% Humidity (Non-Condensing) | | Dimensions | 11.8 x 9.8 x 2" / 300 x 248 x 52 mm |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 44 owners. Add your rating and experience with the product.
