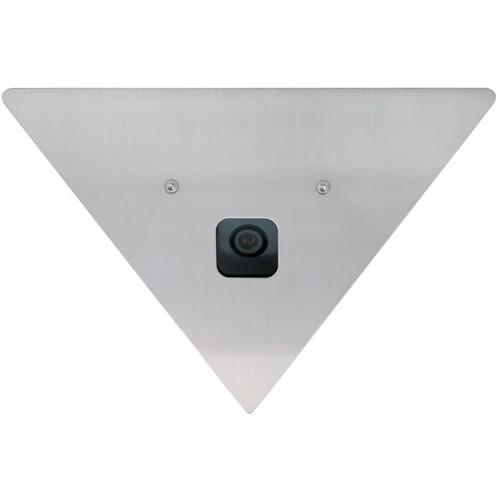

Product description The O2i605CM Intensifier IP 1080p Network Corner Mount Camera from Speco Technologies uses a progressive scan 1/3” CMOS image sensor to provide video at a resolution of 1920 x 1080 at 30 fps. The camera captures color video in low light without IR LEDs, preventing problems caused by objects that reflect or absorb IR light sources. It features built-in standard PoE (IEEE 802.3af) and supports 2-way audio communication. -
- View color in low light without IR LEDs
- Supports up to Full HD resolution at 30fps
- Built-in standard PoE (IEEE 802.3af)
- Presets include Outdoor, Indoor, Elevator, Lobby, Hallway, & Low Light
- Attached 16’ cable connects camera unit to the main unit for flexible placement
- Wide dynamic range (WDR) operation
- Suitable for use in elevators
- Supports H.264 and MJPEG codecs
- 2-way audio capable
- microSD card slot (card not included)
- Sensor input and relay output
- Conformant with ONVIF Profile S
UPC: 030519020114 In the Box Speco Technologies O2i605CM Intensifier IP 1080p Network Corner Mount Camera Software CD Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O2i605CM Intensifier IP 1080p Network Corner Mount Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O2I605CM Specs | | | Image Sensor | Progressive scan 1/3" CMOS, 2 MP | | Maximum Resolution | 1920 x 1080 | | Minimum Illumination | f/1.2, Color: 0.001 lux (Maximum Intensify) | | White Balance | ATW, Manual, Push | | Intensifier | Selectable / Off | | Exposure Control | Yes | | Defog | Yes | | Backlight | WDR, BLC | | DNR | 3D (0 to 20) | | | | Resolution | 1920 x 1080 at 30 fps | | Compression | H.264 (HP/MP/BP), MJPEG | | Bitrate Control | VBR, CBR | | Streaming | 5 profiles | | | | Input | Mono: 64 kb/s G.711 / 32 kb/s G.726 | | Output | Mono: 64 kb/s G.711 | | | | Ethernet | 10/100 MB/s | | Alarm | 1 sensor input, 1 relay output | | Audio | 1 mic in, 1 line out | | Power | DC jack | | Storage | microSD slot | | | | Protocols | IPv4, TCP, UDP, RTP, RTSP, HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, DNS | | DDNS | Speco DDNS | | Security | User ID & Password protection, IP address filtering, digest authentication, user access log | | User Access | 8 simultaneous users at D1 resolution
Number of users may vary depending on resolution | | | | PoE | Standard (IEEE 802.3af) | | Analytics | Motion detection (3 regions), audio detection | | Alarm Triggers | Analytics & sensor input | | Alarm Events | FTP video file upload, email image upload, microSD card recording, relay out | | Video Buffer | Configurable pre-record & post-record | | Image Settings | Privacy mask | | | | Web Browser Support | Windows (Internet Explorer 8 and up) Chrome and Firefox use Java which requires an initial Internet connection | | PC Platform | SecureGuard | | | | Power Supply | PoE, 12 VDC (power supply not included) | | Power Consumption | 6 W | | Operating Temperature | 14 to 122° F (-10 to 50°C) | | Operating Humidity | 8 to 80% RH | | Certifications | FCC, RoHS | | | | Dimensions | 9 x 7 x 4" (23 x 18 x 10 cm) | | Weight | 1.4 lb (0.6 kg) |
