User Manual for Speco Technologies O2IB8M 2MP Outdoor Network Bullet Camera with Heater Click to enlarge the picture
Contents of the user manual for the Speco Technologies O2IB8M 2MP Outdoor Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O2IB8M 2MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

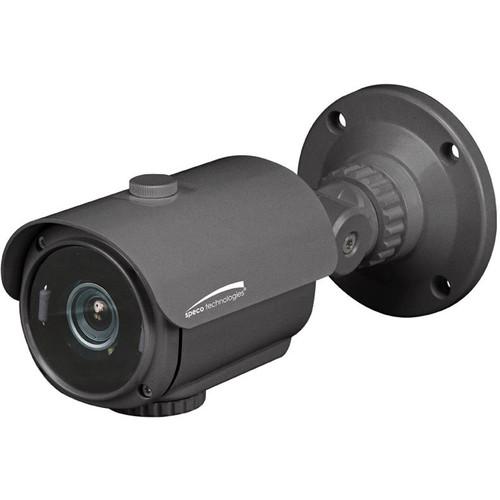

Product description The dark gray O2IB8M from Speco Technologies uses a 1/3" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. Intensifier technology enables low-light visibility in color without IR LEDs. The 2.8-12mm motorized varifocal lens delivers a 103-32° horizontal field of view. Two-way audio communication is possible thanks to a mic input and line output. Integrated PoE technology allows data and power to be transmitted over one cable.
This bullet camera is ONVIF-compliant for profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66-rated enclosure that is suitable for outdoor use. A built-in heater and anti-fog glass reduces condensation. A junction box is included for cable management. - Intensifier technology for use in varied lighting environments
- Intensify selectable up to 32x
- Objects that reflect or absorb IR light sources pose no operational issues
- Equipped with a built-in heater and anti-fog glass to reduce condensation
- 2.8-12mm motorized varifocal lens with auto focus
- PoE and 12 VDC power (DC power supply available separately)
- H.265 (Main and Baseline profiles), H.264 (High, Main, and Baseline profiles), and MJPEG video compression
- Backlight and highlight compensation
- White balance (auto, presets, and manual)
- Analytics include motion and audio detection
- One alarm sensor input and relay output (terminal block)
- Alarm triggers via analytics and sensor input
- Alarm events include FTP video file upload, email upload, and relay output
- BNC video output (test monitor)
- Audio I/O (terminal block)
- Up to 10 users (number of users may vary depending on bandwidth)
- Supports Internet Explorer 8 and above (Windows)
- SecureGuard Mobile app for iOS and Android
UPC: 030519021968 In the Box Speco Technologies O2IB8M 2MP Outdoor Network Bullet Camera with Heater (Dark Gray) Junction Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O2IB8M 2MP Outdoor Network Bullet Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O2IB8M Specs | | | Sensor | 2 MP 1/3" CMOS | | Focal Length | 2.8 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.3x | | Lens Field of View | Horizontal: 103 to 32° | | Minimum Illumination | Color: 0.05 Lux | | Shutter Speed | 1/10,000 to 1/30 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, G.726 | | External Audio Input | Terminal Block (Unspecified Pin Count) | | External Audio Output | Terminal Block (Unspecified Pin Count) | | | | Security | Digest Authentication, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection
Audio Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC | | Video Management Software | SecureGuard VMS for PC Applications
SecureGuard Mobile for iOS and Android | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5 W (With Heater) | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | Dimensions | H: 3.9 x W: 3.9 x L: 8.3" / H: 99.1 x W: 99.1 x L: 210.8 mm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 3.565 lb | | Box Dimensions (LxWxH) | 13.9 x 7.4 x 5.2" |
