User Manual for Speco Technologies O2iBD3 Intensifier 2MP Network Board Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies O2iBD3 Intensifier 2MP Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
 |
User manual for the Speco Technologies O2iBD3 Intensifier 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

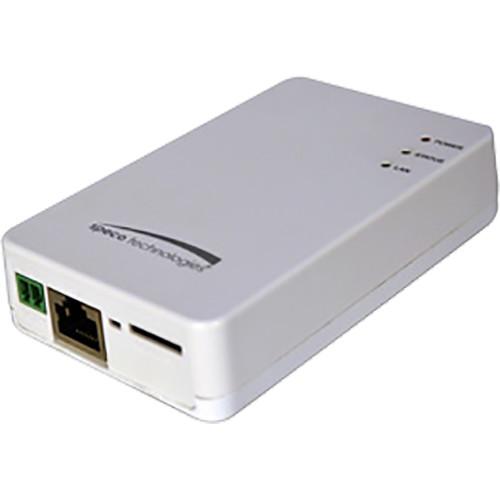

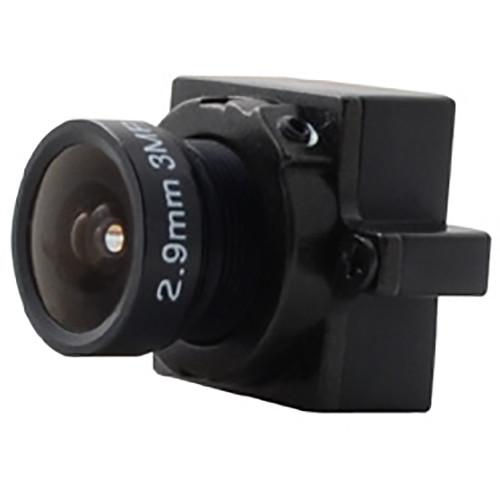

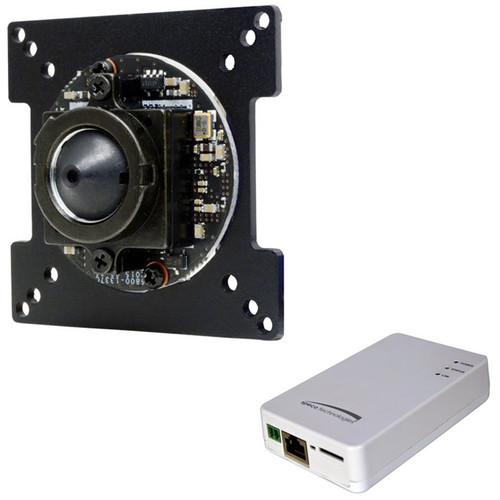

Product description The O2iBD3 Intensifier 2MP Network Board Camera from Speco Technologies uses a 1/2.8" progressive scan CMOS sensor to capture 1920 x 1080 resolution video at 30 fps. It has a 2.9mm fixed lens that delivers a 117° horizontal field of view. A 3.6mm pinhole lens that delivers an 85° horizontal field of view is also included. Two-way audio is possible thanks to a mic input and a line output. An onboard memory card slot accepts microSD cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.

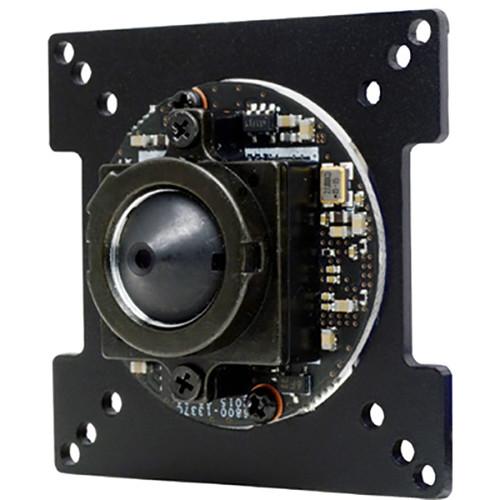

This board camera complies with ONVIF profile S, making it compatible with a wide range of surveillance devices. - Mini board design is suitable for tight spaces
- Intensifier technology (selectable up to 32x) enables the camera to produce color images in low-light conditions without IR LEDs
- Objects that reflect or absorb IR light sources pose no operational issues
- H.264 and MJPEG video compressions
- White balance modes include ATW and AWB
- Analytics include motion detection, tampering, and sensor input
- Alarm triggers via analytics
- Alarm events include FTP upload, email upload, microSD card recording, and relay output
- Sensor input and relay output
- Up to eight simultaneous users

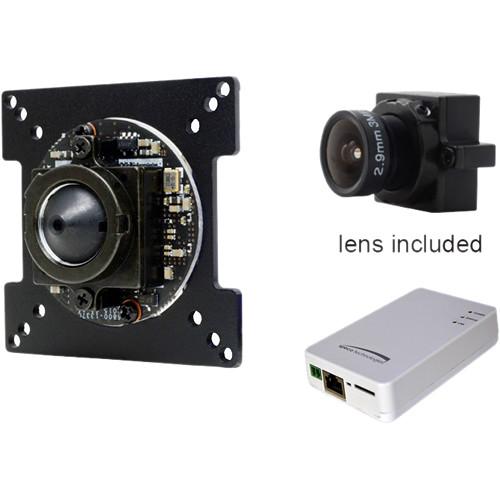

- Includes a 3.6mm pinhole lens with an 85° field of view
- PoE or 12 VDC power (power supply available separately)
UPC: 030519021913 In the Box Speco Technologies O2iBD3 Intensifier 2MP Network Board Camera 3.6mm Lens Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O2iBD3 Intensifier 2MP Network Board Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O2IBD3 Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 2.9mm | | Maximum Aperture | f/1.4 | | Lens Field of View | Horizontal: 117° | | Minimum Illumination | Color: 0.2 Lux | | Shutter Speed | 1/10,000 to 1/30 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30 fps | | Supported Video Compression | H.264, H.265 | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711 | | External Audio Input | Terminal Block (Unspecified Pin Count) | | External Audio Output | Terminal Block (Unspecified Pin Count) | | | | Security | Digest Authentication, IP Address Filtering, Password Protection | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, IPv4/v6, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection
Tampering
Sensor Input | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | None | | Video Management Software | SecureGuard VMS, SecureGuard Mobile App | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 4 W | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 0 to 90% | | Dimensions | H: 1.2 x W: 2.6 x L: 4.2" / H: 30.5 x W: 66.0 x L: 106.7 mm | | Weight | 4 oz / 113 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.1 x 7.0 x 3.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
