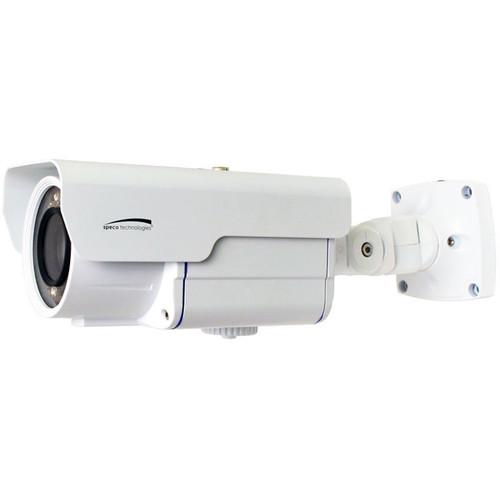

User Manual for Speco Technologies O2LPR67 2MP Outdoor Network License Plate Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O2LPR67 2MP Outdoor Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O2LPR67 2MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Able to capture clear images of license plates moving at up to 60 MPH, the O2LPR67 2MP Outdoor Network License Plate Camera with Night Vision from Speco Technologies features a 2MP 1/3" CMOS sensor to record 1920 x 1080 resolution video at up to 30 fps. 15 IR LEDs allow the camera to produce clear images of objects in complete darkness from up to 165' away. The camera features wide dynamic range (108 dB) and high-contrast imaging for accurate images in varying lighting conditions. Housed in an IP66-rated enclosure, this camera is suitable for outdoor use. - 2MP 1/3" CMOS sensor captures 1080p video at up to 30 fps
- Can take clear images of license plates moving at up to 60 MPH
- 5-50mm motorized auto iris varifocal lens (10x auto focus/zoom)
- IR LEDs for night vision up to 165'
- Monochrome image capture, switchable to color via OSD
- Wide dynamic range up to 108 dB for clear images in varying lighting conditions
- IP66-rated enclosure for protection from dust and water, making it suitable for outdoor use
- RJ45 Ethernet connection with PoE and secondary BNC video output
UPC: 030519021265 In the Box Speco Technologies O2LPR67 2MP Outdoor Network License Plate Camera with Night Vision Mounting Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O2LPR67 2MP Outdoor Network License Plate Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O2LPR67 Specs | Image Sensor | 2 MP 1/3" CMOS sensor | | Maximum Resolution | 1920 x 1080 at 30 fps | | Lens | 5-50mm motorized auto iris varifocal lens (10x auto focus/zoom) | | Minimum Illumination | 0 lux (IR LEDs on) | | Type | Monochrome | | Number of IR LEDs and Range | 15 x IR LEDs, up to 165' (50 m) | | TV System | NTSC | | S/N Ratio | >50 dB | | Resolution | 1920 x 1080 (1080p), 1280 x 720 (720p), 704 x 480 (D1), 640 x 360, 352 x 240 | | Compression | H.265, H.264, MJPEG | | Bit Rate Control | VBR, CBR | | Streaming | 3 streams | | Ethernet | 10/100 Mbps | | Power | DC jack | | Audio | 1 x mic input | | Video Output | 1 x BNC | | Audio Input / Output | 1 x line in
1 x line out | | Alarm Input | 1TTL, NC/NO programmable, 4.3 V (NC) or 0.3 V (NO) threshold, 5 VDC | | Alarm Output | 1 x relay out, NO only, 0.3 A at 125 VAC, 1 AC at 30 VDC | | Protocols | IPv4, TCP, UDP, RTSP, HTTP, SMTP, FTP, DHCP | | Security | User ID and password protection, IP address filtering | | User Access | 4 users maximum | | PoE | Standard (IEEE 802.3af) | | Analytics | Motion detection, tampering | | Alarm Triggers | Analytics | | Alarm Events | Email, alarm, FTP | | Image Settings | Privacy mask | | Web Browser Support | Microsoft Internet Explorer 8 and later | | Application | Windows: SecureGuard VMS | | Mobile OS Support | SecureGuard Mobile for iOS and Android | | Power | PoE, 12 VDC (power supply available separately) | | Power Consumption | 1.1 A maximum with IR LEDs on | | Dimensions | 13.6 x 7.2 x 5.1" (34.5 x 18.4 x 13 cm) | | Weight | 4.4 lb (2 kg) | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 13.7 x 7.2 x 5.2" |
Rating40% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
