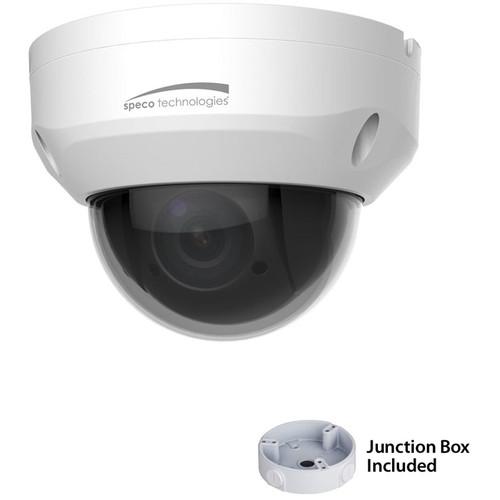

User Manual for Speco Technologies O2P4X 2MP Outdoor PTZ Network Dome Camera with Junction Box Click to enlarge the picture
Contents of the user manual for the Speco Technologies O2P4X 2MP Outdoor PTZ
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O2P4X 2MP Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Monitor an outdoor area with the O2P4X 2MP Outdoor PTZ Network Dome Camera with Junction Box from Speco Technologies. The camera has a 2MP 1/2.7" progressive scan CMOS sensor to capture 1080p video at up to 30 fps. Position the 2.7-11mm varifocal lens using its PTZ functionality to monitor the desired area. H.264 and MJPEG compression formats are included to ensure high-quality recording and playback, while optimizing network bandwidth. PoE technology allows for quick installation by supplying the camera with power and a data connection over a single Ethernet cable. A junction box is included for safe cable storage and added versatility. - 2MP 1/2.7" progressive scan CMOS sensor captures 1080p video at up to 30 fps
- 0 to 355° pan, 0 to 90° tilt, and 4x optical zoom
- RJ45 Ethernet connection with PoE for simple installation
- Motion and face detection
- Up to 120 dB WDR for accurate images in varying lighting conditions
- IP66- and IK10-rated enclosure for protection against dust, water, and impact
- SecureGuard Mobile App for iOS and Android devices
UPC: 030519021357 In the Box Speco Technologies O2P4X 2MP Outdoor PTZ Network Dome Camera with Junction Box Junction Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O2P4X 2MP Outdoor PTZ Network Dome Camera with Junction Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O2P4X Specs | | | Image Sensor | 2 MP 1/2.7" progressive scan CMOS sensor | | Resolution | 1920 x 1080 at 30 fps | | Lens | 2.7-11mm varifocal | | Minimum Illumination | Color: 0.05 lux at f/1.6
B&W: 0.005 lux at f/1.6 | | White Balance | Auto, manual | | Day/Night | IR cut filter | | Wide Dynamic Range | 120 dB | | Light Compensation | BLC, HLC | | Digital Noise Reduction | 2D/3D-DNR | | | | Supported Resolutions | 1920 x 1080 and 1280 x 720 at 30 fps | | Compression | H.264 and MJPEG | | Bit Rate Control | VBR, CBR | | Streaming | 3 streams | | | | Pan | Range: 0 to 355°
Manual Speed: 100° per sec
Preset Speed: 100° per sec | | Tilt | Range: 0 to 90°
Manual Speed: 60° per sec
Preset Speed: 60° per sec | | Presets | 300 positions | | Tour | Maximum 8 programmable tours | | Pattern | 5 programmable patterns | | | | Ethernet | 10/100 Mbps | | Storage | Supports microSD card up to 128 GB (available separately) | | Power | DC jack | | | | Protocols | IPv4, IPv6, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, SMTP, SNMP, UPnP, FTP, DHCP, Bonjour, QoS, 802.1x | | DDNS Support | Speco DDNS | | Security | User ID and password protection, IP address filtering | | User Access | 20 simultaneous users (performance may vary depending on resolution and number of connections) | | | | PoE | IEEE 802.3af standard | | Analytics | Motion and face detection | | Alarm Triggers | Analytics, network loss | | Alarm Events | FTP video/image file upload, email image upload, microSD card recording, relay out | | Video Buffer | Configurable pre-record and post-record | | Image Settings | Privacy mask | | | | Web Browser | Windows Internet Explorer 11 | | Application | PC: SecureGuard
iOS and Android: SecureGuard Mobile app | | | | ONVIF | Profile S | | Power | PoE, 12 VDC (power supply available separately) | | Maximum Power Consumption | 10 W | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | 0 to 95% RH | | Certifications | FCC, RoHS, UL | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | 4.8 x 3.5" (12.2 x 8.9 cm) | | Weight | 1.5 lb (0.7 kg) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 6.9 x 6.8 x 6.6" |
