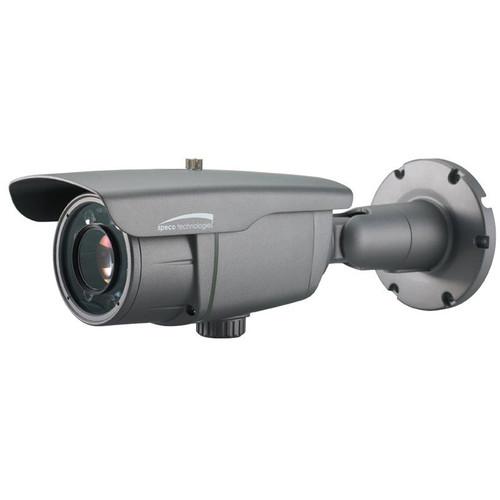

Product description The dark gray O3FB56M 3MP Outdoor Network Bullet Camera with Night Vision & Heater from Speco Technologies has a 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at 30 fps. IR LEDs provide up to 200' of night vision, and Flexible Intensifier technology for use in varied lighting environments. The 5-60mm motorized varifocal lens delivers a 64-6° horizontal field of view. Two-way audio communication is possible thanks to a mic input and line output. An onboard microSD slot supports cards up to 64GB. microSD cards are available separately. Integrated PoE technology allows data and power to be transmitted over one cable.
This bullet camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP67-rated enclosure that is suitable for outdoor use. A built-in heater and anti-fog glass reduce condensation. - Flexible Intensifier technology for use in varied lighting environments
- Intensify selectable up to 8x
- Built-in heater and anti-fog glass reduce condensation
- 5-60mm motorized varifocal lens with auto focus
- H.265 (Baseline and Main profiles), H.264 (Baseline, Main, and High profiles), and MJPEG video compression
- IR cut filter enables day and night functionality
- AWT and AWB white balance modes
- DSS, corridor view in H.264, brightness, contrast, and sharpness image settings
- Analytics include sensor input, tampering, and motion detection
- One alarm sensor input and relay output
- Alarm triggers via analytics
- Alarm events include FTP upload, email upload, microSD card recording, and relay output
- Pre- and post-alarm video buffer
- Up to 8 users (number of users may vary depending on bandwidth)
- Supports Internet Explorer 8 and above
- SecureGuard Mobile app for iOS and Android
- Firmware upgrades via network
- IP67-rated enclosure that is suitable for outdoor use
UPC: 030519021920 In the Box Speco Technologies O3FB56M 3MP Outdoor Network Bullet Camera with Night Vision & Heater (Dark Gray) 3 x Tapping Screws 3 x Plastic Anchors L-Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O3FB56M 3MP Outdoor Network Bullet Camera with Night Vision & Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O3FB56M Specs | | | Sensor | 3 MP 1/2.8" CMOS | | Focal Length | 5 to 60mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 12x | | Lens Field of View | Horizontal: 64 to 6° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/30 Seconds | | | | Streaming Resolution | 2048 x 1536 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Tampering, Motion Detection, Sensor Input | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 250 MB RAM / 250 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 200' / 60.96 m | | Video Management Software | SecureGuard VMS for PC Applications
SecureGuard Mobile for iOS and Android | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 11 W (With Heater) | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 90% | | IP Rating | IP67 | | Dimensions | H: 5.8 x W: 4.0 x L: 9.5" / H: 147.3 x W: 101.6 x L: 241.3 mm | | Weight | 3.4 lb / 1.5 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 24.1 x 12.6 x 6.1" |
