User Manual for Speco Technologies O3FD8M 3MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O3FD8M 3MP Outdoor Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O3FD8M 3MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

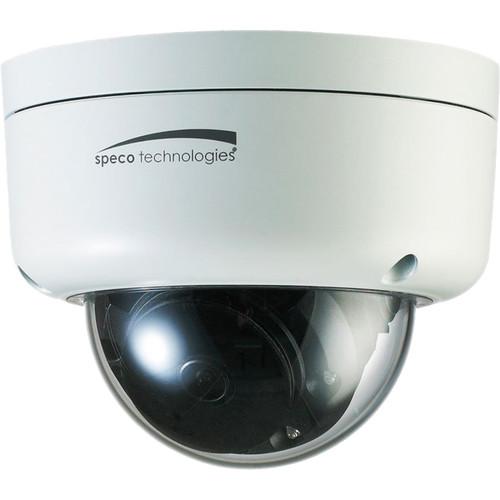

Product description The white O3FD8M 3MP Outdoor Network Dome Camera with Night Vision from Speco Technologies uses a 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at 30 fps. Four IR LEDs provide up to 100' of night vision. The 2.9-12mm motorized varifocal lens delivers a 90-29° horizontal field of view. An onboard microSD slot supports cards up to 64GB. microSD cards are available separately. Integrated PoE technology allows data and power to be transmitted over one cable.
This dome camera is ONVIF-compliant for profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. - Flexible Intensifier technology for use in varied lighting environments
- IR cut filter enables day and night functionality
- PoE or 12 VDC power (DC power supply available separately)
- H.264 (High, Main, and Baseline profiles) and MJPEG compression
- DSS, corridor view in H.264, mirror, vertical flip, brightness, contrast, sharpness, auto white balance, auto exposure, 2D-DNR, 3D-DNR, wide dynamic range, and defog image settings
- Privacy masking for up to 8 areas
- Integrated motion detection with pre- and post-alarm image/video buffering
- Alarm triggers via analytics
- Alarm events include FTP upload, email upload, and microSD card recording
- Up to 8 users (number of users may vary depending on bandwidth)
- Supports Internet Explorer 8 and above
- SecureGuard Mobile app for iOS and Android
- Firmware upgrades via network
- IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism
UPC: 030519021951 In the Box Speco Technologies O3FD8M 3MP Outdoor Network Dome Camera with Night Vision (White) Drilling Template 3 x Tapping Screws 3 x Plastic Anchors Torx Wrench Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O3FD8M 3MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O3FD8M Specs | | | Sensor | 3 MP 1/2.8" CMOS | | Focal Length | 2.9 to 12mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 4.1x | | Lens Field of View | Horizontal: 90 to 29° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/30 Seconds | | | | Streaming Resolution | 2048 x 1536 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Security | Digest Authentication, HTTPS, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection, Tampering | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 250 MB RAM / 250 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 100' / 30.48 m | | Video Management Software | SecureGuard VMS for PC Applications
SecureGuard Mobile for iOS and Android | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 8.5 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
