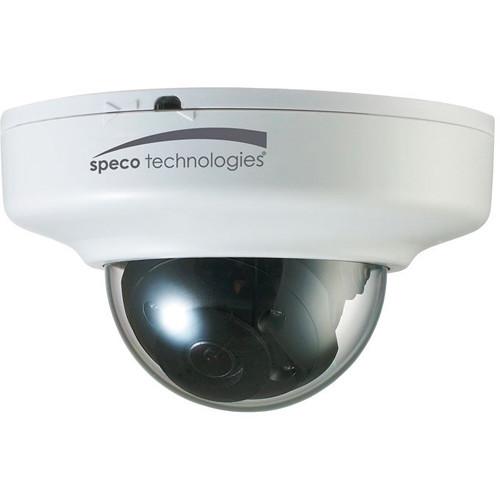

User Manual for Speco Technologies O3FDP9 3MP Network Mini-Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O3FDP9 3MP Network Mini-Dome
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O3FDP9 3MP Network Mini-Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The white O3FDP9 3MP Network Mini-Dome Camera with Night Vision from Speco Technologies has a 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at 30 fps. IR LEDs provide up to 65' of night vision, and Flexible Intensifier technology for use in varied lighting environments. The 2.8mm fixed lens delivers a 108° horizontal field of view. An onboard microSD slot supports cards up to 64GB. microSD cards are available separately. Integrated PoE technology allows data and power to be transmitted over one cable.
This indoor mini-dome camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. - Flexible Intensifier Technology for use in varied lighting environments
- PoE or 12 VDC power (DC power supply available separately)
- H.264 (Baseline, Main, and High profiles) and MJPEG compression
- IR cut filter enables day and night functionality
- AWT and AWB white balance modes
- DSS, corridor view in H.264, brightness, contrast, and sharpness image settings
- Analytics include tampering and motion detection
- Alarm triggers via analytics
- Alarm events include FTP upload, email upload, and microSD card recording
- Up to 8 users (number of users may vary depending on bandwidth)
- Supports Internet Explorer 8 and above
- SecureGuard Mobile app for iOS and Android
- Firmware upgrades via network
UPC: 030519021944 In the Box Speco Technologies O3FDP9 3MP Network Mini-Dome Camera with Night Vision (White) Drilling Template 3 x Tapping Screws 3 x Plastic Anchors Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O3FDP9 3MP Network Mini-Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O3FDP9 Specs | | | Sensor | 3 MP 1/2.8" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/1.4 | | Lens Field of View | Horizontal: 108° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.1 Lux
B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/30 Seconds | | | | Streaming Resolution | 2048 x 1536 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Security | Digest Authentication, HTTPS, IP Address Filtering, Password Protection, User Access Log | | Supported Protocols | DDNS, DHCP, DNS, FTP, HTTP, ICMP, IPv4/v6, RTP, RTSP, SMTP, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Tampering, Motion Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Memory | 250 MB RAM / 250 MB Flash | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 65' / 19.81 m | | Video Management Software | SecureGuard VMS for PC Applications
SecureGuard Mobile for iOS and Android | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 0 to 90% | | Dimensions |
