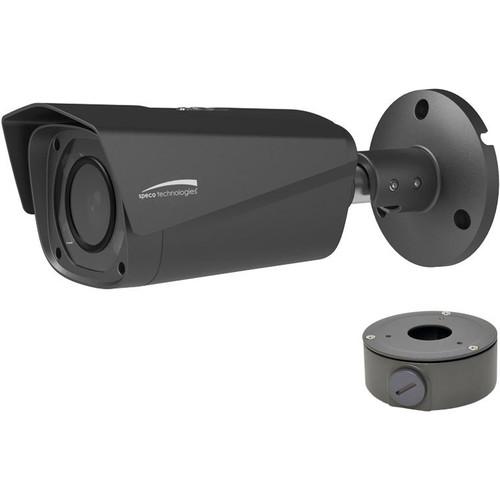

User Manual for Speco Technologies O3VFBM 3MP Outdoor Network Bullet Camera with 2.7-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O3VFBM 3MP Outdoor Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O3VFBM 3MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark gray O3VFBM 3MP Outdoor Network Bullet Camera with 2.7-12mm Lens & Night Vision from Speco Technologies has a 3MP 1/2.8" progressive scan CMOS sensor to capture 2048 x 1536 resolution video at 30 fps. The 2.7-12mm motorized varifocal lens features IR LEDs that deliver up to 190' of night vision, and an 87-29° horizontal field of view. H.264 and MJPEG compression formats manage file sizes while maintaining the best video quality possible. A built-in slot supports microSD cards up to 128GB. microSD cards are available separately. Integrated PoE technology allows data and power to be transmitted over one cable.
This device in ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance products. Additionally, this device is IP67-rated for outdoor use. A junction box is included for cable management. - Uses PoE and 12 VDC power (power supply available separately)
- IR cut filter enables true day and night functionality
- Digital wide dynamic range, backlight compensation, and highlight compensation
- Auto and manual white balance
- Analytics include motion and face detection
- Alarm triggers include analytics and network loss
- Alarm events include FTP video/image file upload, email image upload, microSD card recording, and relay out
- CBR and VBR bit rate control
- Up to 20 simultaneous users
- IP67-rated enclosure that is suitable for outdoor use
UPC: 030519021296 In the Box Speco Technologies O3VFBM 3MP Outdoor Network Bullet Camera with 2.7-12mm Lens & Night Vision Installation Accessories Bag Junction Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O3VFBM 3MP Outdoor Network Bullet Camera with 2.7-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O3VFBM Specs | | | Image Sensor | 3 MP 1/2.8" CMOS | | Scanning System | Progressive | | Maximum Resolution | 2048 x 1536 | | Minimum Illumination | Color: 0.1 lux at f/1.4
B&W: 0 lux with IR LED on | | Focal Length | 2.7-12mm | | Horizontal Field of View (degree) | 87-29° | | IR Range | 190' / 57.91 m depending on scene reflection | | White Balance | Auto, manual | | Compensation | DWDR, BLC, HLC | | Day/Night | IR cut filter | | Exposure Control | Digital slow shutter | | Electronic Shutter Speed | 1/100,000 to 1/30 seconds | | 3D-DNR | Yes | | | | Supported Resolutions | 2048 x 1536 / 1920 x 1080 / 1280 x 720 at 30 fps | | Compression | H.264, MJPEG | | Bit Rate Control | VBR, CBR | | Streaming | 3 streams | | | | Protocols | IPv4, IPv6, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, SMTP, SNMP, UPnP, FTP, DHCP, Bonjour, QoS, 802.1x | | DDNS Support | Speco DDNS | | Security | User ID & password protection, IP address filtering | | User Access | 20 simultaneous users, performance may vary depending on resolution and number of connections | | | | Web Browser Support | Windows, Internet Explorer 11 | | Application | SecureGuard for PC
SecureGuard mobile for iOS and Android | | | | Ethernet | 10/100 Mb/s | | Power | DC jack | | Storage | microSD slot supports cards up to 128 GB, available separately | | | | PoE | Standard IEEE 802.3af | | Analytics | Motion and face detection | | Alarm Triggers | Analytics, network loss | | Alarm Events | FTP video/image file upload, email image upload, microSD card recording, and relay out | | Video Buffer | Configurable pre-record and post-record | | Image Settings | Privacy mask | | | | Power | PoE
12 VDC, power supply sold separately | | Power Consumption | 8.5 W maximum | | IP Rating | IP67 | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% RH | | Certifications | FCC, RoHS, UL | | Dimensions (W x H x L) | 3.8 x 3.6 x 8.7" / 96.5 x 91.4 x 220.9 mm | | Weight | 1.5 lb / 0.68 kg | | | | Package Weight | 2.825 lb | | Box Dimensions (LxWxH) | 13.5 x 6.8 x 6.6" |
