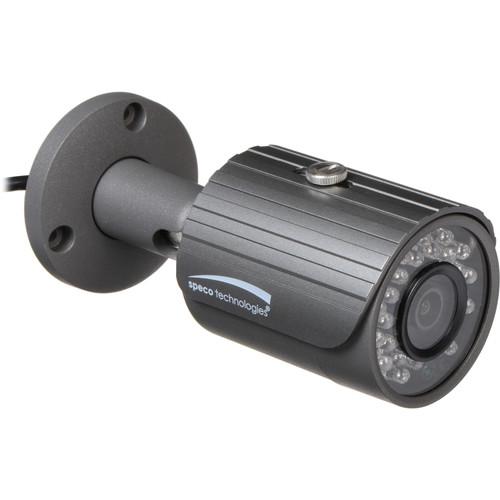

User Manual for Speco Technologies O3VLB3 IP 3MP Outdoor Network Bullet Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies O3VLB3 IP 3MP Outdoor
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O3VLB3 IP 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The dark grey O3VLB3 IP 3MP Outdoor Network Bullet Camera from Speco Technologies comes equipped with a 1/3" progressive scan CMOS sensor and a 2.8mm fixed focal lens. Using these, the camera can capture images at a maximum resolution of up to 2304 x 1296. With a built-in IR cut filter and integrated IR LEDs, this camera can capture clear images of objects up to 98' away in complete darkness. The camera supports H.264 and MJPEG compression formats with simultaneous dual streaming. With the IP67-rated weather-resistant housing, the camera is suitable for outdoor applications. -
- Supports 3MP at 20 fps and 1080p at 30 fps
- Built-in standard PoE (IEEE 802.3af)
- True Day/Night operation (IR cut filter)
- IP67-compliant
UPC: 030519019941 In the Box Speco Technologies O3VLB3 IP 3MP Outdoor Network Bullet Camera Junction Box L Wrench Mounting Screw Software CD Limited 2-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O3VLB3 IP 3MP Outdoor Network Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Speco Technologies O3VLB3 IP 3MP Outdoor Network Bullet Camera can be downloaded in PDF format at the link stated below.
Technical parametersSpeco Technologies O3VLB3 Specs | | | Image Sensor | Progressive scan 1/3" CMOS, 3 MP | | Lens | 2.8 mm | | Maximum Resolution | 2304 x 1296 | | Minimum Illumination | Color: 0.37 lux at f/2.0
B&W: 0 lux | | White Balance | Auto, Manual | | Exposure Control | Yes | | Digital Slow Shutter | Yes | | Backlight | BLC, HLC, D-WDR | | DNR | 3D | | | | Resolution | 2304 x 1296 at 20 fps
1920 x 1080 or 1280 x 720 at 30 fps | | Compression | H.264 (HP/MB/BP), MJPEG | | Bitrate Control | VBR, CBR | | Streaming | 2 simultaneous profiles | | | | Ethernet | 10/100 Mbps | | Power | DC jack | | | | Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, HTTP, HTTPS, SMTP, FTP, DHCP, DNS | | DDNS | Speco DDNS (free of charge) | | Security | User ID & password protection, IP address filtering, digest authentication, user access log, HTTPS | | User Access | 20 simultaneous users Number of users may vary depending on resolution. | | | | PoE | Standard (IEEE 802.3af) | | Analytics | Motion detection (4 regions), tamper detection | | Alarm Triggers | Analytics | | Alarm Events | Email, record, snapshot | | Video Buffer | Configurable pre-record & post-record | | Image Settings | Privacy mask, corridor mode | | | | Web Browser Support | Windows (Internet Explorer 8 and up, Chrome, Firefox) | | | | Power Supply | PoE, 12 VDC (power supply not included) | | Power Consumption | 4 W | | Operating Temperature | -20 to 140° F (-29 to 60°C) | | Operating Humidity | Less than 95% RH | | Certifications | FCC, RoHS | | | | Unit Dimensions | 6.49 x 2.75" (16.48 x 6.98 cm) | | Unit Weight | 13 oz (367 g) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 11.2 x 5.45 x 5.25" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 99 owners. Add your rating and experience with the product.
