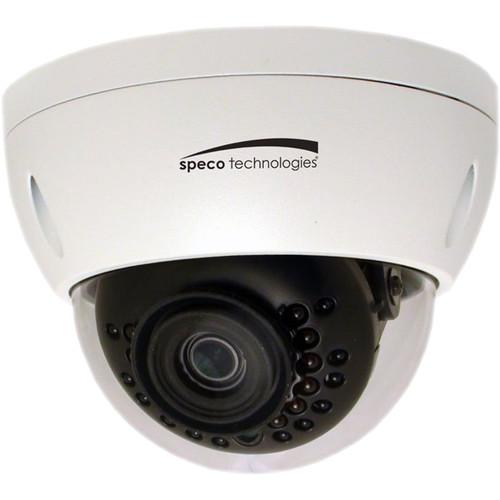

User Manual for Speco Technologies O3VLD1 3MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O3VLD1 3MP Outdoor Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O3VLD1 3MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The outdoor-ready, O3VLD1 3MP Outdoor Network Dome Camera with Night Vision from Speco Technologies is an IP67- and IK10-rated camera with a 1/3" progressive scan CMOS sensor. Its 2.8mm lens is able to capture 3MP video at up to 20 fps. H.264 and MJPEG compression are included to ensure high-quality recording and playback, while PoE technology allows for quick installation by transmitting data and providing power via a single Ethernet cable. IR LEDs surround the lens to provide the camera with up to 98' of night vision. Digital Wide Dynamic Range (DWDR) further helps the camera produce accurate images in varying lighting conditions. - 3MP 1/3" progressive scan CMOS sensor captures 2304 x 1296 resolution video at up to 20 fps
- IR cut filter and IR LEDs for night vision up to 98'
- DWDR for accurate images in varying lighting conditions
- PoE technology for simplified installation
- IP67- and IK10-rated enclosure for protection against dust, water, and impact
- Free SecureGuard Mobile app for iOS and Android devices
UPC: 030519019958 In the Box Speco Technologies O3VLD1 3MP Outdoor Network Dome Camera with Night Vision Software CD L Wrench Mounting Hardware Limited 2-Year Warranty Brochure PDF 723.8kbbewyuwwazxrefzwbwubqvwawcbaqyydf Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O3VLD1 3MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O3VLD1 Specs | | | Image Sensor | 3 MP 1/3" progressive scan CMOS sensor | | Maximum Resolution | 2304 x 1296 at 30 fps | | Minimum Illumination | Color: 0.37 lux at f/2.0
B&W: 0 lux | | Night Vision Range | Up to 98' (30 m) | | White Balance | Auto, manual | | Exposure Control | Yes | | Digital Slow Shutter | Yes | | Backlight | BLC, HLC | | Wide Dynamic Range | DWDR | | Day/Night | IR cut filter | | Digital Noise Reduction | 3D-DNR | | Angle Adjustment | Pan: 0 to 355°
Tilt: 0 to 64°
Rotate: 0 to 355° | | | | Resolutions | 2304 x 1296 at 20 fps
1920 x 1080 and 1280 x 720 at 30 fps | | Compression | H.264 (high, middle, base profiles) and MJPEG | | Bit Rate Control | VBR, CBR | | Streaming | 2 streams | | | | Ethernet | RJ45 10/100 Mbps | | Power | DC jack | | | | Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, HTTP, HTTPS, SMTP, FTP, DHCP, DNS | | DDNS Support | Speco DDNS | | Security | User ID and password protection, IP address filtering, digest authentication, user access log, HTTPS | | User Access | 20 users maximum Number of simultaneous users may vary depending on resolution. | | | | Connectivity | PoE IEEE 802.3af standard | | Analytics | Motion detection (4 regions), tamper detection | | Alarm Trigger | Analytics | | Alarm Events | Email, record, snapshot | | Video Buffer | Configurable pre-record and post-record | | Image Settings | Privacy mask, corridor mode | | | | Web Browser Support | Windows: Internet Explorer 8 and later, Chrome, Firefox | | Application Software | SecureGuard | | Mobile App | SecureGuard Mobile for iOS and Android | | ONVIF | Profile S | | | | Power | PoE, 12 VDC (power supply available separately) | | Power Consumption | 4 W | | Operating Temperature | -20 to 140°F (-29 to 60°C) | | Operating Humidity | <95% RH | | Certifications | FCC, RoHS | | Dimensions | 3.2 x 4.3" (8.1 x 11 cm) | | Weight | 1 lb (0.45 kg) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 5.5 x 5.4 x 4.8" |
