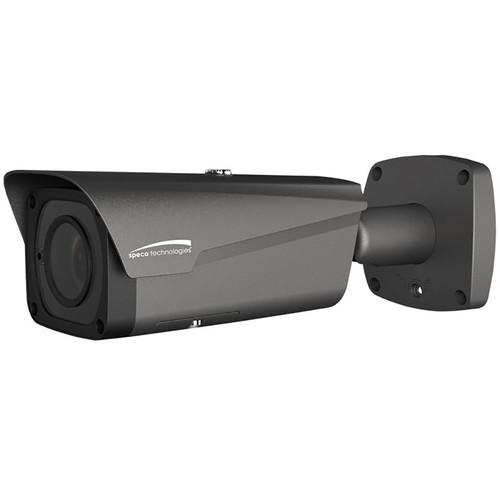

User Manual for Speco Technologies O4B2M 4MP Outdoor Network Bullet Camera with 2.7-12mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O4B2M 4MP Outdoor Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O4B2M 4MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The O4B2M 4MP Outdoor Network Bullet Camera from Speco Technologies utilizes a 1/2.5" progressive scan CMOS sensor and a 2.7-12mm motorized varifocal lens to capture video at a resolution up to 2688 x 1520. It supports H.264 and MJPEG codecs with triple streaming. Equipped with smart IR function, this camera can capture video in complete darkness. It is enclosed in an IP67-rated weather-resistant housing. - Supports up to 4MP at 30 fps
- Features built-in standard PoE (IEEE 802.3af)
- True day/night operation (IR cut filter)
- Equipped with microSD slot (card not included)
- Supports IR range up to 160' (depending on scene reflection)
- 2-way audio communication
- Features two sensor inputs and one relay output
- Conformant with ONVIF Profile S
UPC: 030519020589 In the Box Speco Technologies O4B2M 4MP Outdoor Network Bullet Camera with 2.7-12mm Lens & Night Vision (Dark Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O4B2M 4MP Outdoor Network Bullet Camera with 2.7-12mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O4B2M Specs | Image Sensor | 4 MP 1/2.5" progressive scan CMOS sensor | | Maximum Resolution | 2688 x 1520 | | Minimum Illumination | Color: 0.03 lux
B&W: 0 lux (IR LED on) | | Aperture | f/1.4 | | IR Range | 160' / 48.8 m depending on scene reflection | | White Balance | Auto/Presets/Manual | | Compensation | WDR/BLC/HLC | | Day/Night | IR cut filter | | Exposure Control | Digital slow shutter | | Electronic Shutter Speed | 1/100,000 to 1/3 seconds | | DNR | 3D | | | | Supported Resolutions | 2688 x 1520 / 2560 x 1440 / 1920 x 1080 / 1280 x 720 at 30 fps | | Compression | H.264, MJPEG | | Bit Rate Control | VBR, CBR | | Streaming | 3 streams | | | | Ethernet | 10/100 Mb/s | | Alarm | 2 x sensor inputs, 1 x relay output | | Video | CVBS analog out | | Audio | 1 x mic in, 1 x line out (RCA) | | Storage | microSD slot (128 GB maximum) | | Power | DC jack | | | | Protocols | IPv4, IPv6, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, SMTP, SNMP, UPnP, FTP, DHCP, Bonjour, QoS, and 802.1x | | DDNS Support | Speco DDNS | | Security | User ID and Password protection, IP address filtering | | User Access | 20 simultaneous users | | | | PoE | Standard (IEEE 802.3af) | | Analytics | Motion detection, audio detection, and face detection | | Alarm Triggers | Analytics, network loss, and sensor input | | Alarm Events | FTP video/image file upload, email image upload, microSD card recording, and relay out | | Video Buffer | Configurable pre-record and post-record | | Image Settings | Privacy mask, region of interest | | | | Web Browser Support | Windows (Internet Explorer 11) | | PC | PC Application: SecureGuard | | Mobile | SecureGuard Mobile (iPhone and Android) | | | | Power | PoE, 12 VDC (power supply not included) | | Power Consumption | 11.5 W maximum | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% RH | | Certifications | FCC, RoHS | | Housing | Dark gray | | Dimensions | 10.7 x 3.7 x 3.7" / 271.8 x 94.0 x 94.0 mm | | Weight | 2.4 lb / 1 kg |
