Speco Technologies O4D1 4MP Outdoor Network

Search your instruction manual in PDF to download

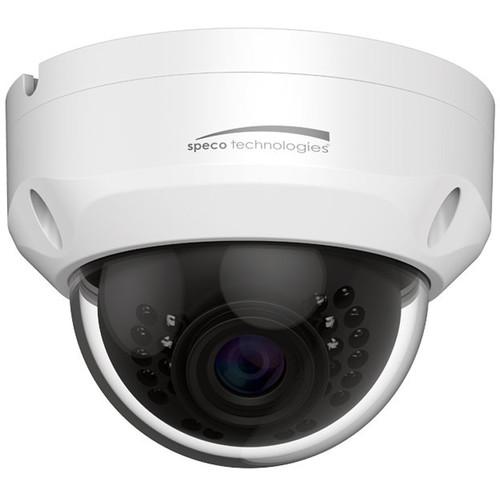

User Manual for Speco Technologies O4D1 4MP Outdoor Network Dome Camera with Night Vision

Click to enlarge the picture
Speco Technologies O4D1 4MP Outdoor Network Dome Camera with Night Vision Contents of the user manual for the Speco Technologies O4D1 4MP Outdoor Network
  • Product category: Wired IP Cameras Speco Technologies
  • Brand: Speco Technologies
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Speco Technologies Wired IP Cameras

User manual for the Speco Technologies O4D1 4MP Outdoor Network contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Speco Technologies product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!



Product description

The white O4D1 4MP Outdoor Network Dome Camera from Speco Technologies features a 1/3" progressive scan CMOS sensor and 2.8mm fixed lens for capturing videos at a maximum resolution of 2688 x 1520. This day/night camera provides 24-hour surveillance thanks to its removable IR cut filter and built-in IR LEDs with a range of up to 98'. Enclosed in an IP67- and IK10-rated housing, the camera can be used for both indoor and outdoor applications.
  • Supports up to 4MP at 30 fps in 16:9 widescreen format
  • Built-in standard PoE (IEEE 802.3af)
  • Adaptive IR LEDs reduce IR saturation
  • Up to 98' IR Range
  • True day/night operation (IR cut filter)
  • True WDR (Wide Dynamic Range) operation
  • 2-way audio communication
  • microSD card slot for edge recording (card sold separately)
  • Sensor input and relay output
  • IP67-rated weather-resistant and IK10-rated vandal-resistant housing
  • ONVIF Profile S
  • Includes a junction box
UPC: 030519021319 In the Box Speco Technologies O4D1 4MP Outdoor Network Dome Camera with Night Vision
  • O2VLJBD Junction box
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Speco Technologies O4D1 4MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Speco Technologies O4D1 Specs

    Image Sensor 1/3" Progressive scan CMOS
    Maximum Resolution 2688 x 1520, 4 MP
    Focal Length 2.8mm
    Minimum Illumination Color: 0.08 lux at f/2.0
    B&W: 0 lux (IR LED on) at f/2.0
    IR Range 98' (29.87 m) (depending on scene reflection)
    White Balance Auto / Presets / Manual
    Compensation WDR (120 dB) / BLC / HLC
    Day/Night IR cut filter
    Exposure Control Digital slow shutter
    Electronic Shutter Speed 1/3 to 1/100,000 sec
    DNR 3D
    Supported Resolutions 2688 x1520 / 2560 x 1440 / 1920 x1080 / 1280 x 720 at 30 fps
    Compression H.264, MJPEG
    Bit Rate Control VBR, CBR
    Streaming 3 streams
    Input G.711 (mono)
    Output G.711 (mono)
    Ethernet 10/100 Mbps
    Alarm 1 x sensor input, 1 x relay output
    Audio 1 x mic in, 1 x line out (RCA)
    Storage microSD slot (128 GB maximum), card sold separately
    Power DC jack
    Protocols IPv4, IPv6, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, SMTP, SNMP, UPnP, FTP, DHCP, Bonjour, QoS, and 802.1x
    DDNS Support Speco DDNS
    Security User ID and password protection, IP address filtering
    User Access 20 simultaneous users (performance may vary depending on resolution and number of connections)
    PoE Standard (IEEE 802.3af)
    Analytics Motion detection, audio detection, and face detection
    Alarm Triggers Analytics, network loss, and sensor input
    Alarm Events FTP video / image file upload, email image upload, micro SD card recording, and relay out
    Video Buffer Configurable pre-record, post-record
    Image Settings Privacy mask
    Web Browser Support Windows Internet Explorer 11
    Application Windows: SecureGuard
    Mobile: SecureGuard mobile (iPhone and Android)
    Power PoE, 12 VDC (power supply sold separately)
    Power Consumption 5 W maximum
    Operating Temperature -22 to140°F (-30 to 60°C)
    Operating Humidity 0 to 95% RH
    Certifications FCC, RoHS, UL
    Dimensions (Ø x H) 4.3 x 3.2" (109.2 x 81.3 mm)
    Weight 1 lb (0.45 kg)
