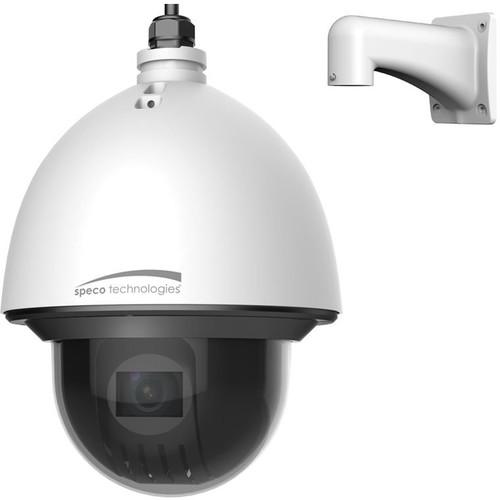

User Manual for Speco Technologies O4P30X 4MP Outdoor PTZ Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies O4P30X 4MP Outdoor PTZ
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O4P30X 4MP Outdoor PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The white O4P30X 4MP Outdoor PTZ Network Dome Camera from Speco Technologies has a 1/3" progressive scan CMOS sensor to capture 2592 x 1520 resolution video at 30 fps. An IR cut filter enables day and night functionality. The 4.5-135mm varifocal lens delivers a 60-2.2° horizontal field of view with 30x optical zoom. PTZ functionality offers endless panning and a 0-180° tilting range. Two-way audio communication is possible thanks to an audio input and output. An onboard microSD slot supports cards up to 128GB. microSD cards are available separately. Integrated PoE technology allows data and power to be transmitted over one cable.
This PTZ camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. Additionally, this device is IP66- and IK10-rated for outdoor use in areas at risk of vandalism. A wall mount bracket is included. - Supports up to 4MP resolution video at 30 fps in 16:9 widescreen format
- PoE or 24 VAC power (power supply available separately)
- H.264 and MJPEG compression
- IR cut filter enables day and night functionality
- True wide dynamic range (120 dB), backlight compensation, and highlight compensation
- Auto and manual white balance
- Analytics include motion, audio, and face detection
- Alarm triggers include analytics and network loss
- Alarm events include FTP video/image file upload, email image upload, microSD card recording, and relay out
- Configurable pre- & post-record video buffer
- Seven alarm sensor inputs and two relay outputs
- Supports Internet Explorer 11
- SecureGuard Mobile app for iOS and Android
- Up to 20 simultaneous users (performance may vary depending on resolution and number of connections)
- Wall mount bracket included
- IP66- and IK10-rated for outdoor use in areas at risk of vandalism
- FCC, RoHS, and UL certified
- PTZ Functionality
-
- 0 to 360° endless panning
- 0 to 180° tilt range (auto flip)
- 300°/sec manual pan speed
- 150°/sec manual tilt speed
- 600°/sec preset pan speed
- 500°/sec preset tilt speed
- 300 presets
- A maximum of 8 programmable group tours
- 5 programmable patterns
UPC: 030519021340 In the Box Speco Technologies O4P30X 4MP Outdoor PTZ Network Dome Camera (White) Wall Mount Bracket Installation Accessories Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O4P30X 4MP Outdoor PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O4P30X Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 4.5 to 135mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 30x | | Lens Field of View | Horizontal: 60 to 2.2° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0.005 Lux | | | | Streaming Resolution | 2592 x 1520 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, Password Protection | | Supported Protocols | Bonjour, DHCP, FTP, HTTP, IPv4/v6, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion, Audio, and Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | Remote Pan: 360° at 600°/s
Remote Tilt: 180° at 500°/s | | Alarm I/O | 7 / 2 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC
1 x 9-Pin Serial (RS-485) | | Video Management Software | SecureGuard VMS for PC Applications
SecureGuard Mobile for iOS and Android | | Internal Storage | None | | Power Source | AC, PoE 802.3at (30 W) | | Power Consumption | 22 W | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
