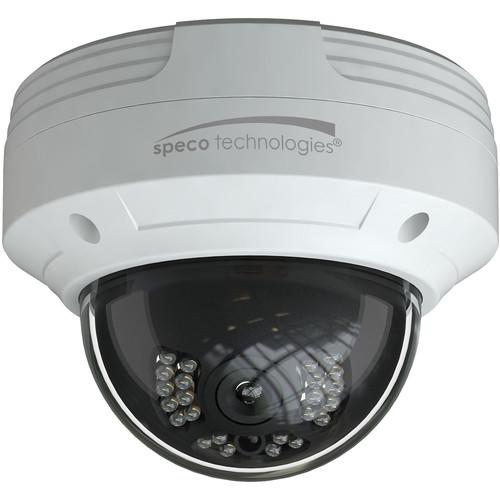

User Manual for Speco Technologies O4VLD5 4MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O4VLD5 4MP Outdoor Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O4VLD5 4MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The O4VLD5 4MP Outdoor Network Dome Camera with Night Vision from Speco Technologies has a 4MP 1/3" progressive scan CMOS sensor to capture 2592 x 1520 resolution video at 30 fps. The 2.8mm fixed lens features IR LEDs that deliver up to 65' of night vision, and a 103° horizontal field of view. Audio is possible thanks to a microphone input. H.265, H.264, and MJPEG compression formats manage file sizes while maintaining the best video quality possible. Integrated PoE technology allows data and power to be transmitted over one cable.
This device in ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance products. Additionally, this device is IP66- and IK10-rated for outdoor use in areas at risk of vandalism. A junction box is included for cable management. - Uses PoE and 12 VDC power (DC power supply available separately)
- ONVIF-compliant for Profile S
- IR cut filter enables true day and night functionality
- Camera view can pivot 240° horizontally, and 68° vertically
- True wide dynamic range, backlight compensation, and highlight compensation
- White balance modes include auto, indoor, outdoor, and manual
- Analytics include motion detection, object removal, abnormality, line crossing, and intrusion
- CBR and VBR bit rate control
- Up to 10 simultaneous users
- Image settings include privacy mask, region of interest, and OSD
- Support for Internet Explorer 8 and above
- SecureGuard mobile app for iOS and Android
- IP66- and IK10-rated enclosure is suitable for outdoor use in areas at risk of vandalism
UPC: 030519023054 In the Box Speco Technologies O4VLD5 4MP Outdoor Network Dome Camera with Night Vision Junction Box Installation Accessories Bag Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O4VLD5 4MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O4VLD5 Specs | | | Sensor | 4 MP 1/3" CMOS | | Focal Length | 2.8mm | | Maximum Aperture | f/1.2 | | Lens Field of View | Horizontal: 103° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | B&W: 0 Lux | | Shutter Speed | 1/100000 to 1/25 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 240°
Vertical: 0 to 68° | | | | Streaming Resolution | 2592 x 1520 at 30 fps
2560 x 1440 at 30 fps
2304 x 1296 at 30 fps
1980 x 1080 at 30 fps
1280 x 720 at 30 fps | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | , 3 Streams | | | | Streaming | Single | | Audio Formats | G.711 | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | | | Security | Digest Authentication, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | DDNS, DHCP, FTP, HTTP, IPv4/v6, ONVIF Profile S, RTP, RTSP, SMTP, TCP, UDP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion detection, object removal, abnormality, line crossing, intrusion | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x BNC
2 x RCA
1 x Power | | IR Range | 65' / 19.81 m | | Video Management Software | SecureGuard VMS for PC applications | | Internal Storage | None | | External Storage Options | Cloud, Local PC | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 4 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
