User Manual for Speco Technologies O8D2M 8MP Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O8D2M 8MP Outdoor Network
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O8D2M 8MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

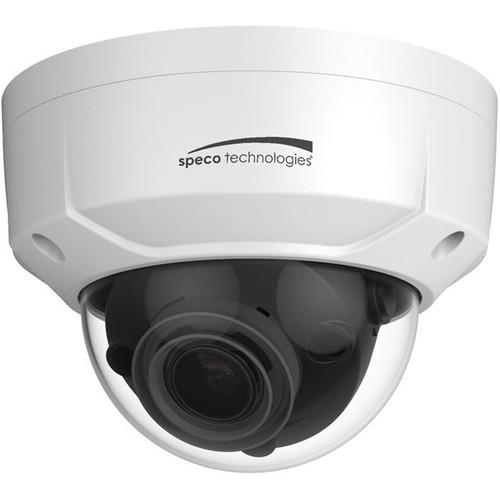

Product description The white O8D2M 8MP Outdoor Network Dome Camera with Night Vision from Speco Technologies has a 1/2.5" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 160' of night vision. The 2.7-12mm motorized varifocal lens delivers a 102-39° horizontal field of view. Two-way audio communication is possible thanks to a mic input and line output. An onboard microSD slot supports cards up to 128GB. microSD cards are available separately. Integrated PoE technology allows data and power to be transmitted over one cable.
This 4K camera is ONVIF-compliant for Profile S, making it compatible with a wide range of surveillance devices. Additionally, this device is IP67- and IK10-rated for outdoor use in areas at risk of vandalism. A junction box for cable management is included. - Supports up to 4K resolution video in 16:9 widescreen format
- H.264 and MJPEG compression
- IR cut filter enables true day and night functionality
- Digital wide dynamic range, backlight compensation, and highlight compensation
- Auto, presets, and manual white balance
- Analytics include motion, audio, and face detection
- Alarm triggers include analytics, network loss, and sensor input
- Alarm events include FTP video/image file upload, email image upload, microSD card recording, and relay out
- One alarm sensor input and relay output
- One mic input and line output (RCA)
- Configurable pre-& post-record video buffer
- Supports Internet Explorer 11
- SecureGuard Mobile app for iOS and Android
- Up to 20 simultaneous users (performance may vary depending on resolution and number of connections)
- Integrates with Exacq Technologies, Mirasys, OnSSI, Savant, and Synology
- IP67- and IK10-rated for outdoor use in areas at risk of vandalism
- FCC, RoHS, and UL certified
UPC: 030519021869 In the Box Speco Technologies O8D2M 8MP Outdoor Network Dome Camera with Night Vision (White) Installation Accessories Bag O4JBD Junction Box for Large Dome Cameras vfqewwubbusbcbrrusxuebcdsuwbvstqsd Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O8D2M 8MP Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O8D2M Specs | | | Sensor | 8 MP 1/2.5" CMOS | | Focal Length | 2.7 to 12mm | | Maximum Aperture | f/1.6 | | Zoom | Optical: 4.4x | | Lens Field of View | Horizontal: 102 to 39° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | Color: 0.05 Lux
B&W: 0 Lux | | | | Streaming Resolution | 3840 x 2160 at 30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | Bonjour, DDNS, DHCP, FTP, HTTP, IPv4/v6, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion, Audio, and Face Detection | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 160' / 48.77 m | | Video Management Software | SecureGuard VMS for PC Applications
SecureGuard Mobile for iOS and Android | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 12.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP67 | | IK Rating | IK10 | | Dimensions |
