User Manual for Speco Technologies O8D6M 4K UHD Outdoor Network Dome Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies O8D6M 4K UHD Outdoor
- Product category: Wired IP Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired IP Cameras
|
User manual for the Speco Technologies O8D6M 4K UHD Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

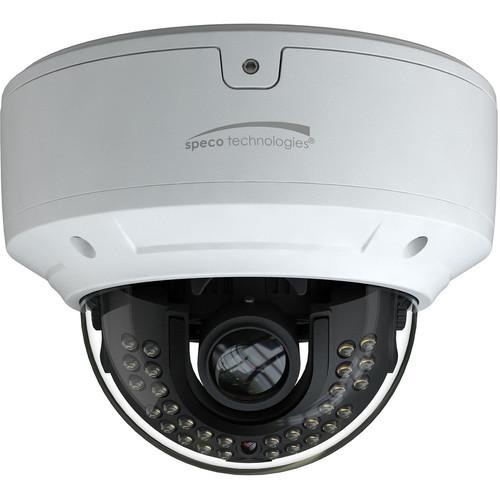

Product description The white O8D6M 4K UHD Outdoor Network Dome Camera with Night Vision from Speco Technologies uses a 1/2.5" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. The 3.3-12mm motorized varifocal lens delivers a 97.5-38.5° horizontal field of view. Two-way audio communication is possible thanks to a 3.5mm audio jack. An onboard microSD slot supports cards up to 128GB. microSD cards are available separately. Integrated PoE technology allows data and power to be transmitted over one cable.
This dome camera is ONVIF-compliant for profile S, making it compatible with a wide range of surveillance devices. It is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. A junction box is included for cable management. - IR cut filter enables day and night functionality
- Adaptive IR LEDs that reduce IR saturation
- 3.3-12mm motorized varifocal lens with autofocus
- Camera pivots horizontally from 0 to 360° and vertically from 0 to 77°
- PoE or 12 VDC power (DC power supply available separately)
- H.265, H.264 (High, Main, and Baseline profiles), and MJPEG video compression
- 128 kb/s to 12 Mb/s video bit rate
- Digital wide dynamic range, backlight compensation, and highlight compensation
- White balance modes include auto, indoor, outdoor, and manual
- Privacy masking, region of interest (ROI), and OSD
- Analytics include motion detection, object removal, abnormality, line crossing, and intrusion
- Alarm sensor input and relay output
- Alarm triggers via analytics
- Alarm events include FTP and email upload
- Up to 10 users (number of users may vary depending on bandwidth)
- Compatible with Internet Explorer 8 or higher
- SecureGuard Mobile app for iOS and Android
- IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism
UPC: 030519023085 In the Box Speco Technologies O8D6M 4K UHD Outdoor Network Dome Camera with Night Vision (White) Junction Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies O8D6M 4K UHD Outdoor Network Dome Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies O8D6M Specs | | | Sensor | 8 MP 1/2.5" CMOS | | Focal Length | 3.3 to 12mm | | Maximum Aperture | f/1.2 | | Zoom | Optical: 3.6x | | Lens Field of View | Horizontal: 97.5 to 38.5° | | IR Cut Filter | Mechanical | | Day/Night | True | | Minimum Illumination | B&W: 0 Lux | | Shutter Speed | 1/100,000 to 1/25 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: 0 to 77° | | | | Streaming Resolution | 3840 x 2160 at 30 fps (12 Mb/s ) | | Supported Video Compression | H.264, H.265, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711 | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | Digest Authentication, IP Address Filtering, MAC Address Filtering, Password Protection | | Supported Protocols | DDNS, DHCP, FTP, HTTP, IPv4/v6, RTP, RTSP, SMTP, TCP, UDP | | | | Application Programming Interface (API) | ONVIF Profile S | | Analytics | Motion Detection, Object Removal, Abnormality, Line Crossing, Intrusion | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | | | Mobile Operating Systems | iOS, Android | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power
1 x BNC
1 x 9-Pin Serial (RS-485) | | IR Range | 98' / 29.87 m | | Video Management Software | SecureGuard VMS for PC Applications
SecureGuard Mobile for iOS and Android | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 8 W | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
