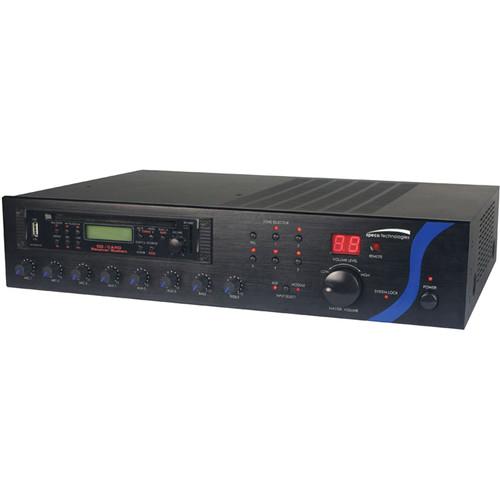

User Manual for Speco Technologies PBM240AU Public Address Mixer and Amplifier with Tuner, CD, and USB Click to enlarge the picture
Contents of the user manual for the Speco Technologies PBM240AU Public Address Mixer
- Product category: Mixer/Amplifiers Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Mixer/Amplifiers
|
User manual for the Speco Technologies PBM240AU Public Address Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description Powering 240W into 70V, 4 Ohms, or 8 Ohms systems, the PBM240A from Speco Technologies is a public address amplifier and mixer designed for any situation in which music-on-hold (MOH) is a must. This amplifier features a pre-installed combination CD/USB/SD/Tuner module already installed. Through this module, you can play audio off of CDs, USB thumb drives, and SD/SDHC card readers. You can create presets or instantiate randomized play, and should you wish to play audio off the radio, this is possible via the tuner option.
For inputs, the PBM240AU sports three pairs of RCA auxiliary channels, three balanced microphones, one RS-232 (for console control) and a terminal TEL input. In addition to its five 70V zones for commercial speakers and its 4/8 Ohm outputs, the PBM240AU also gives you the option to route outgoing signal via RCA or XLR connections.
Turn your attention to the front panel and you'll notice a panoply of controls. Note, for instance, the six zone selection buttons; with these, you can turn specific speaker runs on or off. The front panel is adorned with level controls over each input, as well as a master volume output, and an input selector for the auxiliary channel. Use this feature to choose between a sound-source plugged into the device or the included module.
Additionally, the PBM240AU provides connection possibilities for telephone paging and music-on-hold applications, including a priority paging switch which mutes all other channels when signal is passing through the microphone 1 input. This unit includes an IR remote control and a set of rack-mounting hardware. - Notable Features
-
- Pre-installed CD/USB/tuner module
- Includes IR remote and rack-mounting kit
- 5 zoned 70V speaker outputs
- Non-zoned 4/8 Ohms output
- Master digital volume control with display
- Individual volume control for each input
- Front bass and treble controls
- Phantom power for all mic inputs
- Mic 1 selectable priority paging
- Digital front panel lock
- RCA or XLR line output
- Telephone paging input and Music-on-hold output
- RS232 input for integration with popular control systems
UPC: 030519016988 In the Box Speco Technologies PBM240AU Public Address Mixer and Amplifier with Tuner, CD, and USB - IR Remote Control (Battery Included)
- Set of Rack-Mounting Hardware
- AC Power Cord
- Limited 5-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies PBM240AU Public Address Mixer and Amplifier with Tuner, CD, and USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies PBM240AU Specs | RMS Output Power | 240 W | | Max Output Power | 480 W | | Zones | 5x | | Speaker Output | 4/8 Ohms (non-zoned), 70 V (zoned) | | Auxiliary Output | RCA and XLR | | Inputs | 1x AM antenna (press terminal)
1x FM antenna (BNC)
3x aux (stereo RCA)
3x mic (XLR)
1x RS-232
1x TEL (terminal) | | Frequency Response | 50 Hz to approximately 20 kHz | | Tone Control (Treble / Bass) | ±10 | | THD | Less than 1% @ 1 kHz | | Signal to Noise Ratio | > 88 dB | | Controls | Volume for each source
Master volume
Vox volume
MoH volume
Tone
Source selector
Zone selector
Module | | Telephone Interface | TEL in and MoH Out | | Indicators | Volume level, power, source, system Lock | | AC Power Consumption | 320 W | | Power Supply | 115 VAC, 60 Hz | | Dimensions (W x H x D) | 16.9 x 3.4 x 11.8" / 42.9 x 8.6 x 29.8 cm | | Weight | 18.0 lb / 8.2 kg | | | | Package Weight | 21.95 lb | | Box Dimensions (LxWxH) | 22.0 x 17.3 x 9.4" |
