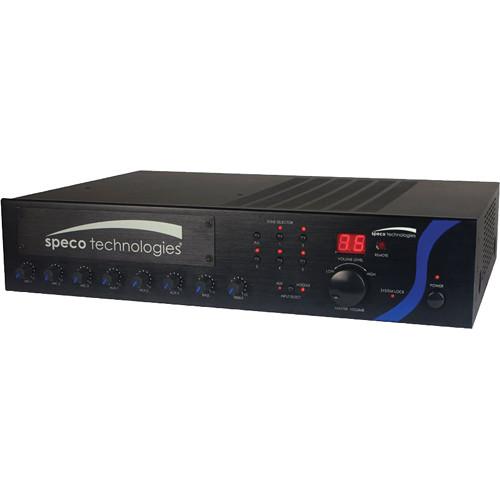

User Manual for Speco Technologies PBM60A - 60W RMS P.A. Amplifier With Module Bay Click to enlarge the picture
Contents of the user manual for the Speco Technologies PBM60A - 60W RMS
- Product category: Mixer/Amplifiers Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Mixer/Amplifiers
|
User manual for the Speco Technologies PBM60A - 60W RMS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The Speco Technologies PBM60A is designed for commercial public address applications such as providing music and paging at a restaurant or bar. For audio inputs, the back panel of the unit provides one AM antenna press terminal, one FM antenna BNC terminal, three pairs of stereo RCA inputs, and three XLR microphone inputs with selectable phantom power and Mic 1 selectable priority paging. For control inputs the back panel features both an RS-232 and a TEL (terminal) connector for integration with control systems and telephone paging systems respectively. The included rackmount kit allows for convenient installation within a professional AV rack.
For outputs, the amplifier can provide 60 W RMS power or 120 W peak to five different zones at 70/25 V as well as drive 4, 8, and 16 ohm loads through the non-zoned outputs of the amplifier. An auxiliary output is provided on both an XLR-3M connector as well as an RCA stereo pair.
In addition to each source having its own volume control, the unit includes controls for master volume, vox volume, MOH volume, ±10 dB Bass, ±10 dB Treble, source selection, zone selection, module TEL in, and MoH out. These controls are also conveniently accessible through the included IR remote control. Front panel controls can be digitally locked to prevent unauthorized changes to the system. This model comes with an open module bay into which either an AM/FM tuner or a combination AM/FM tuner and CD/USB drive player may be installed. - Module Bay
- Allows for installation of either an AM/FM tuner or a combination AM/FM tuner and CD/USB player
- Digital Lock
- Prevents unauthorized changes to the system
- IR Remote
- Provides convenient control over functions such as source selection, zone selection, bass level, treble level, volume level, and more
UPC: 030519013055 In the Box Speco Technologies PBM60A - 60W RMS P.A. Amplifier With Module Bay Power Cord IR Remote Control Rackmount Kit Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies PBM60A - 60W RMS P.A. Amplifier With Module Bay in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies PBM60A Specs | Inputs | 1x AM antenna (press terminal)
1x FM antenna (BNC)
3x Aux (stereo, RCA)
3x Mic (XLR)
1x RS-232
1x TEL (terminal) | | RMS Power | 60 W | | Max Power Draw | 120 W | | AC Power Consumption | 100 W | | Power Supply | 115 VAC 60 Hz | | Zones | 5 | | Speaker Output | 4/8/16 ohms (non zoned)
70/25V (zoned) | | AUX Outputs | Aux (RCA or XLR) | | Frequency Response | 50 to 20,000 Hz | | Tone Control | Bass: ±10 dB
Treble: ±10 dB | | THD | Less than 1% at 1,000 Hz | | Signal to Noise Ratio | >88 dB | | Controls | Volume for each source
Master volume
Vox volume
MoH volume
Tone
Source selector
Zone selector
Module TEL in and MoH out | | Indicators | Volume level
Power
Source
System lock | | Listings | CE, FCC, RoHS | | Dimensions (W x H x D) | 16.90 x 3.40 x 11.75" (42.93 x 8.64 x 29.85 cm) | | Weight | 20 lb (9.1 kg) |
