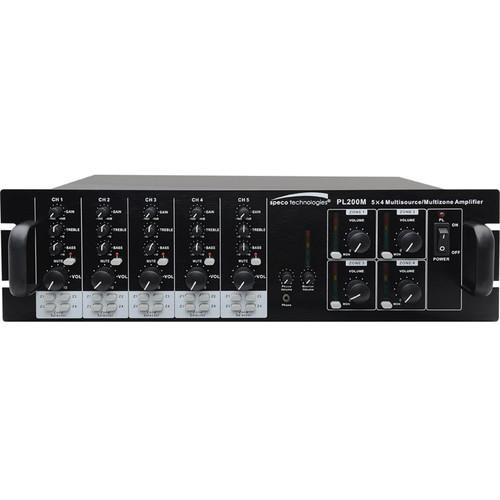

User Manual for Speco Technologies PL200M Commercial Amplifier Click to enlarge the picture
Contents of the user manual for the Speco Technologies PL200M Commercial Amplifier
- Product category: Mixer/Amplifiers Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Mixer/Amplifiers
|
User manual for the Speco Technologies PL200M Commercial Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The 160W Speco Technologies PL200M Commercial Amplifier is well suited for offices, hospitality, hotels, retail markets, restaurants, schools, houses of worship, and more. The unit features matrix technology that routes up to five inputs to four distinct zones, allowing for the simultaneous playback of different sources to each zone. Each channel features gain, treble, bass, and volume controls. To assign a zone output, simply press one of the four buttons at the bottom of each channel. Additionally, each zone has a dedicated volume control. Channels 1-3 offer mic/line switchable inputs via combo XLR-1/4" inputs, while channels 5 & 6 utilize line-level RCA connectors. -
- Simultaneous playback of up to 5 sources into up to 4 zones
- Telephone paging function and monitor output for a limited music-on-hold function
- Microphone 1 priority with VOX mute function
- Intelligent cooling fan
- Separate controls (gain, bass, treble, volume) and mute for each source
- Separate volume control & LED level indication for each zone
- 19” rackmount design with built-in handles (3 RU)
UPC: 030519995443 In the Box Speco Technologies PL200M Commercial Amplifier (160W) Power Cord Limited 5-Year Warranty Brochure PDF 367.1kbstdbbrexfdywdtfdeverqdfberwsurzfcrvzx Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies PL200M Commercial Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies PL200M Specs | Inputs | 3 x Combo XLR-1/4" / 6.35 mm inputs with phantom, mic, or line-level selection switch
2 x RCA inputs | | Outputs | 4 x 4/8 Ohms or 25/70 V | | Power Output | 40 W RMS power output per zone for 160 W RMS total | | Frequency Response | 60 Hz to 17 kHz (±3 dB) | | Dimensions | 19.0 x 5.2 x 12.2" (48.3 x 13.2 x 30.9 cm) | | Weight | 33.3 lb (15.1 kg) | | | | Package Weight | 39.0 lb | | Box Dimensions (LxWxH) | 22.75 x 17.75 x 9.85" |
