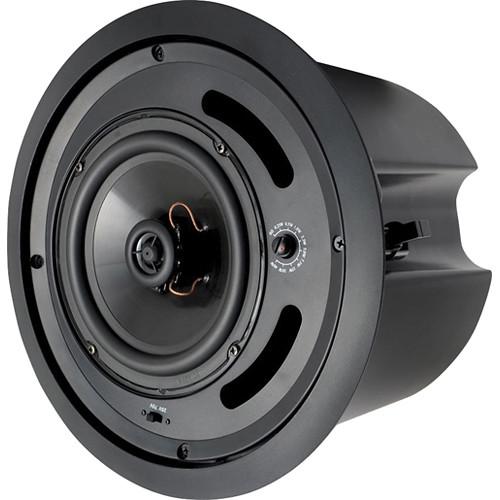

User Manual for Speco Technologies SP5MATB 5.25" 70 25V Back Can Speaker Click to enlarge the picture
Contents of the user manual for the Speco Technologies SP5MATB 5.25" 70 25V
- Product category: Installed Speakers Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Installed Speakers
|
User manual for the Speco Technologies SP5MATB 5.25" 70 25V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The black SP5MATB 5.25" 2-Way 25/70V Speaker with Back Can from Speco Technologies is an all-in-one unit, which comes pre-assembled with back can and mounted transformer. The speaker features a coaxially mounted 1" dome tweeter, and the SP5MATB has a frequency response of 57 to 20,000 Hz and will handle 30 watts of RMS power. A quick-flip 70 or 25 Volt selector switch and an easy-select transformer wattage dial are both located on the front baffle of the speaker housing. The choice of 8 individual wattage tap settings covers a full range of uses.
This flame-retardant ABS unit also comes with insulated wires and has an attached metal seismic safety loop and built-in easy mount tabs for securing the unit.
The SP5MATB was designed to simplify installation for contractors in a time-efficient manner. The Multi-Application (MA) Series covers a wide range of commercial applications while retaining a uniform speaker appearance. The furnished 8 Ohm tap selector also means this speaker can be kept on-hand for unexpected multi-use residential installation needs. In the Box Speco Technologies SP5MATB 5.25" 70/25V Back Can Speaker (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies SP5MATB 5.25" 70 25V Back Can Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies SP5MATB Specs | Frequency Response | 57 Hz to 20 kHz | | Low Frequency Driver | 5.25" Polypropylene woofer with rubber surround
Magnet: 10 oz. ferrite | | High Frequency Driver | 1" Coaxially mounted Mylar dome tweeter | | Sensitivity | 87 dB (1W/1M) | | Impedance | 8 ohms | | Voltage | 70/25 V | | RMS Power | 30 W | | Maximum Power | 60 W | | Transformer Setting | 30 W, 15 W, 7.5 W, 2.5 W, 1 W, 0.5 W, 0.25 W & 8 ohms | | Baffle Material | Fire-resistant ABS | | Back Can Material | Fire-resistant ABS | | Grille Material | Metal | | Wire Connection Type | Push terminal | | Cutout Diameter | 8.38" (213 mm) | | Mounting Depth | 5.6" (142 mm) (minimum) | | Dimensions (Diam. x Depth) | 9.43 x 6.12" (240 x 156 mm) | | Weight | 4.5 lb (2.0 kg) |
