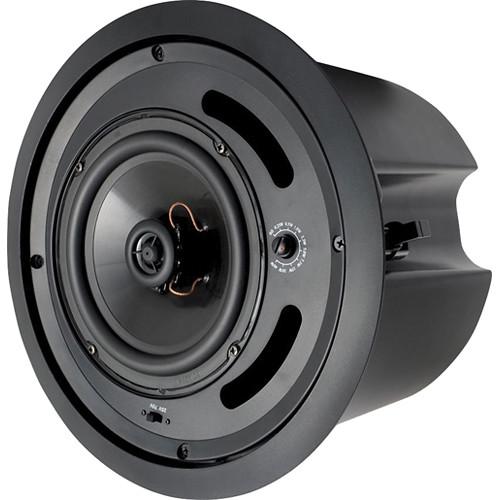

User Manual for Speco Technologies SP6MATB 6.5" 70 25V Commercial ABS Plastic Back Can Speaker Click to enlarge the picture
Contents of the user manual for the Speco Technologies SP6MATB 6.5" 70 25V
- Product category: Installed Speakers Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Installed Speakers
|
User manual for the Speco Technologies SP6MATB 6.5" 70 25V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The black SP6MATB 6.5" 70/25 V Commercial ABS Plastic Backcan Speaker from the Speco Technologies MA-Series, is a 2-way coaxial all-in-one unit, which comes pre-assembled with a backcan and a mounted transformer. With a speaker complement of a 6.5" woofer and 1" dome tweeter and a frequency response of 34 to 20,000 HZ, it will handle 40 watts of RMS power. The SP6MATB features a quick-flip 70 or 25 Volt selector switch and a selectable transformer wattage dial. The choice of 9 individual wattage tap settings covers a wide range of uses. Both the quick-flip voltage selector and easy-select transformer wattage dial are located on the front of the speaker baffle.
This flame-retardant ABS unit also comes with insulated wires, has an attached metal seismic safety loop and built-in easy-mount tabs for securing the unit. The MA Series is an all-purpose value speaker covering a variety of commercial applications. The furnished 8 Ohm tap selector also means the speakers can be kept on-hand for unexpected residential installation needs. UPC: 030519014656 In the Box Speco Technologies SP6MATB 6.5" 70/25V Commercial ABS Plastic Back Can Speaker (Black) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies SP6MATB 6.5" 70 25V Commercial ABS Plastic Back Can Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies SP6MATB Specs | Color (housing) | Black | | Frequency Response | 34 Hz to 20 kHz | | Low Frequency Driver | 6.5" Polypropylene woofer with rubber surround
Magnet: 11.0 oz (0.31 kg) ferrite | | High Frequency Driver | 1" Coaxially mounted mylar dome tweeter | | Sensitivity | 88 dB (1 W/1 M) | | Impedance | 8 ohms, 70/25 V | | RMS Power | 40 W | | Maximum Power | 80 W | | Transformer Setting | 40 W, 30 W, 15 W, 7.5 W, 5 W, 2.5 W, 1 W, 0.5 W, 0.25 W & 8 ohms | | Material of Construction | Baffle and Back Can - Fire-resistant ABS Grille - Metal | | Wire Connection Type | Push Terminal | | Mounting | Cut-out: 9.88" (25.01 cm)
Minimum Mounting Depth: 7" (17.78 cm) | | Dimensions (Diam. x Depth) | 7.58 x 11.02" (19.25 x 28.00 cm) | | Weight | 5.5 lb (2.50 g) | | | | Package Weight | 7.03 lb | | Box Dimensions (LxWxH) | 12.6 x 12.4 x 10.0" |
