User Manual for Speco Technologies VL62W Outdoor Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Speco Technologies VL62W Outdoor Bullet Camera
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies VL62W Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

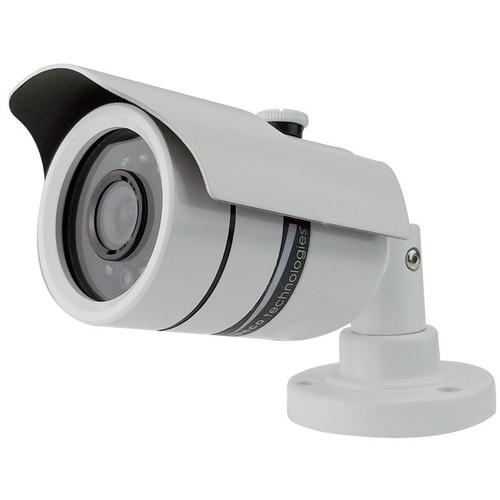

Product description The Speco Technologies VL62 Color Waterproof Camera is a monitoring solution for both day and night applications. To enhance its vision at night, the camera is equipped with 12 IR LEDs for recording in complete darkness. This makes the camera suitable for round-the-clock surveillance. Thanks to its 1/3" CCD image sensor, the camera can produce images at resolutions of up to 700 TVL. The waterproof casing makes the camera suitable for both indoor and outdoor use. In addition, the camera features a sunshield that protects it from direct sunlight. - 1/3" Sony Super HAD 960H II CCD sensor
- 12 IR LEDs with a 60' range
- IP67 weatherproof housing
- Operates on 12 VDC supply (included)
UPC: 030519408790 In the Box Speco Technologies VL62W Outdoor Bullet Camera with Night Vision Power Supply Sunshield Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies VL62W Outdoor Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies VL62 Specs | Image Sensor | 1/3" Sony Super HAD II 960H CCD | | Resolution | 700 TVL | | Minimum Illumination | 0 lux with IR on; 0.001 lux IR off | | Effective Pixels (H x V) | 976 x 494 | | IR LEDs | 12 at 850 nm | | IR Range | 60' (18 m) depending on scene reflection | | Electronic Shutter Speed | 1/60 to 1/1,000,000 sec | | S/N Ratio | >52 dB | | Gamma | 0.45 typical | | Video Signal Output | 1 V p-p; 75 Ohms | | Scanning System | 2:1 interlace | | Synchronization | Internal | | Backlight Compensation | Supported | | AGC | Supported | | Storage Temperature | -13 to 158°F (-25 to 70°C) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Humidity | 20 to 90% RH | | Power Supply | 12 VDC (power supply included) | | Power Consumption | LED Off: 90 mA
LED On: 160 mA | | Housing Material | Metal | | Dimensions | 4.37 x 3.98 x 2.46" (11.09 x 10.11 x 6.25 cm) | | Weight | 8.8 oz (249.5 g) |
