User Manual for Speco Technologies VLB2A 2MP Outdoor Multi-Format Analog HD Bullet Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies VLB2A 2MP Outdoor Multi-Format
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies VLB2A 2MP Outdoor Multi-Format contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|

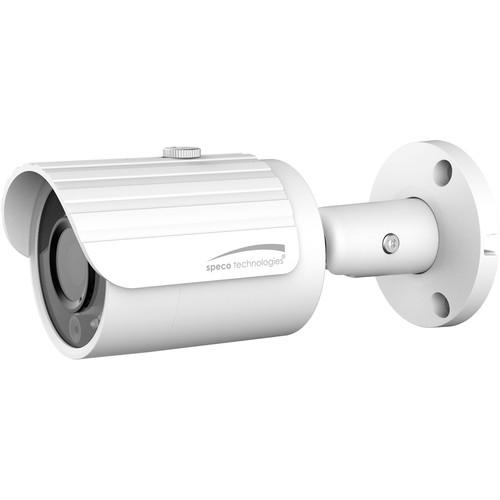

Product description The white VLB2A from Speco Technologies uses a 1/2.9" progressive scan sensor & a 2.8mm fixed lens to transmit 1920 x 1080 resolution video at 30 fps. The camera's 18 IR LEDs provide up to 98' of visibility in low-light conditions. This camera supports HD-TVI, AHD, HD-CVI, and standard analog signal outputs. The UTC (Up-the-Coax) connection enables full OSD control of the camera.
This device is housed in an IP67-rated enclosure that is suitable for outdoor use. A junction box is included for cable management. - Day and night functionality
- Adaptive IR LEDs reduce IR saturation
- Full OSD operation via UTC (up the coax) control
- Auto and manual white balance
- Wide dynamic range, backlight compensation, and highlight compensation
- FCC, UL, and RoHS certified
UPC: 030519023566 In the Box Speco Technologies VLB2A 2MP Outdoor Multi-Format Analog HD Bullet Camera Junction Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies VLB2A 2MP Outdoor Multi-Format Analog HD Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies VLB2A Specs | Image Sensor | 1/2.9" 2 MP progressive scan CMOS sensor | | Resolution | 1920 x 1080 at 30 fps | | Lens | 2.8mm fixed lens | | Minimum Illumination | 0.02 lux | | Number of IR LEDs | 18 | | IR Range | Up to 98' / 30 m (depending on scene reflection) | | White Balance | Auto, manual | | Compensation | WDR (BLC/HLC) | | Day/Night | Auto, manual | | Digital Noise Reduction | 2D-DNR | | Signals Supported | HD-TVI, HD-CVI, AHD, and standard analog | | Power | 12 VDC (power supply available separately) | | Maximum Power Consumption | 2.8 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% RH | | IP Rating | IP67 | | Certifications | FCC, UL, RoHS | | Dimensions (Diam. x L) | 2.8 x 6.5" / 71.1 x 165.1 mm | | Weight | 1 lb / 454 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 11.2 x 5.3 x 5.2" |
