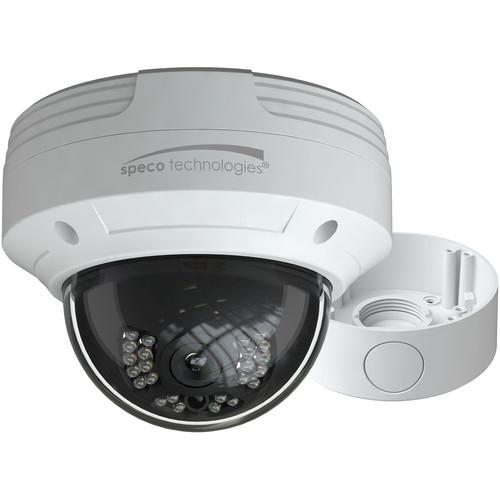

User Manual for Speco Technologies VLDT5W 2MP Outdoor HD-TVI Dome Camera Click to enlarge the picture
Contents of the user manual for the Speco Technologies VLDT5W 2MP Outdoor HD-TVI
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies VLDT5W 2MP Outdoor HD-TVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The VLDT5W 2MP Outdoor HD-TVI Dome Camera from Speco Technologies uses a 1/2.8" CMOS sensor to transmit 1920 x 1080 resolution video at 30 fps. Twenty-four IR LEDs provide up to 65' of visibility in low-light conditions. The camera's 2.8mm fixed lens delivers a 115.4° horizontal field of view. HD-TVI, HD-CVI, AHD, and CVBS signals are supported. The UTC (Up-the-Coax) connection enables full OSD operation of the camera.
This camera is housed in an IP66-rated enclosure that is suitable for outdoor use. A junction box is included for cable management. - True wide dynamic range (120 dB), backlight compensation, and highlight compensation
- Full OSD operation via UTC
- 12 VDC power (power supply available separately)
UPC: 030519023986 In the Box Speco Technologies VLDT5W 2MP Outdoor HD-TVI Dome Camera Junction Box Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies VLDT5W 2MP Outdoor HD-TVI Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies VLDT5W Specs | Image Sensor | 1/2.8" CMOS Sensor | | Video Standards | NTSC, PAL | | Maximum Resolution | 1920 x 1080 at 30 fps | | Lens | 2.8mm Fixed Lens | | Field of View | Horizontal: 115.4°
Vertical: 83.4° | | Minimum Illumination | Color: 0.001 Lux at f/1.2 | | Electronic Shutter Speed | 1/100,000 to 1/60 Seconds | | Number of IR LEDs | 24 | | IR Range | 65' / 19.8 m (Depending on Scene Reflection) | | S/N | >52 dB | | Compensation | True WDR (120 dB), BLC, HLC | | DNR | Yes | | Video Output | HD-TVI, HD-CVI, AHD, CVBS | | Signal Range | 1600' / 487.7 m | | Communication | UTC (Up-the-Coax) | | OSD Control | Full OSD Operation via UTC | | Power | 12 VDC (Available Separately) | | Power Consumption | IR Off: <1 w
IR On: <3 W | | Operating Temperature | -4 to 104°F / -20 to 40°C | | Dimensions (W x H) | 4.5 x 5" / 114.3 x 127 mm | | Weight | 1.1 lb / 0.5 kg | | | | Package Weight | 2.285 lb | | Box Dimensions (LxWxH) | 6.4 x 5.55 x 5.5" |
