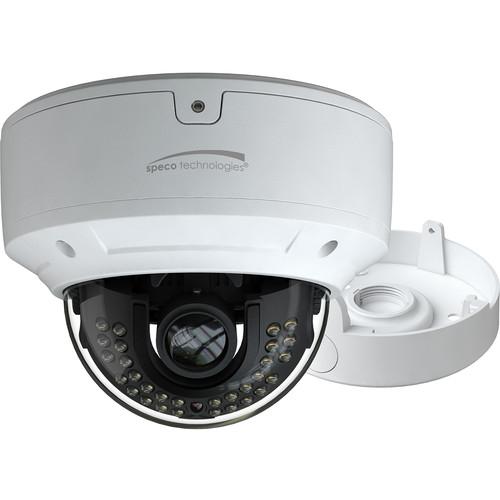

User Manual for Speco Technologies VLDT6M 2MP Outdoor Analog HD Turret Camera with Night Vision & Motorized 2.8-12mm Lens Click to enlarge the picture
Contents of the user manual for the Speco Technologies VLDT6M 2MP Outdoor Analog
- Product category: Wired Analog & HD Cameras Speco Technologies
- Brand: Speco Technologies
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speco Technologies Wired Analog & HD Cameras
|
User manual for the Speco Technologies VLDT6M 2MP Outdoor Analog contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speco Technologies product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speco Technologies user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speco Technologies product will considerably shorten its lifespan!
|
Product description The white VLDT6M 2MP Outdoor Analog HD Turret Camera with Night Vision & Motorized 2.8-12mm Lens from Speco Technologies has a 2MP 1/2.8" CMOS sensor, and a 2.8-12mm motorized varifocal lens to transmit 1920 x 1080 resolution video. 30 IR LEDs provide a night vision range up to 98'. The camera supports HD-TVI, AHD, HD-CVI, and CVBS signal outputs. The UTC (Up-the-Coax) connection allows for OSD control of the camera.
This camera is housed in an IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism. A junction box is included for cable management. - Supports HD-TVI, AHD, HD-CVI, and CVBS signal outputs
- Full OSD operation through UTC (up the coax) control
- IR cut filter for day and night functionality
- Signal distance up to 1600'
- 120 dB wide dynamic range
- Global and central exposure
- Backlight, highlight, and frontlight compensation
- IP66- and IK10-rated enclosure that is suitable for outdoor use in areas at risk of vandalism
UPC: 030519024006 In the Box Speco Technologies VLDT6M 2MP Outdoor Analog HD Turret Camera with Night Vision & Motorized 2.8-12mm Lens Junction Box Drill Template Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speco Technologies VLDT6M 2MP Outdoor Analog HD Turret Camera with Night Vision & Motorized 2.8-12mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeco Technologies VLDT6M Specs | Image Sensor | 1/2.8" CMOS | | Lens | 2.8-12mm motorized varifocal | | Lens Mount | D14 | | Resolution | 2 MP / 1920 x 1080 | | Video Output | HD-TVI, HD-CVI, AHD, CVBS | | Frame Rate | 60 Hz: 30 fps
50 Hz: 25 fps | | S/N Ratio | ≥52 dB (AGC off) | | Video Standards | NTSC, PAL | | Electronic Shutter Speed | NTSC: 1/100,000 to 1/60 seconds
PAL: 1/100,000 to 1/50 seconds | | Minimum Illumination | Color: 0.001 lux at f/1.2 with AGC on
B&W: 0 lux with IR | | Number of IR LEDs | 30 | | IR Range | Up to 98' / 30 m | | Function Controls | Full OSD operation via UTC | | Signal Range | Up to 1600' / 488 m | | Day/Night | IR cut filter | | WDR | 120 dB, on (low, middle, high) / off | | Digital Noise Reduction (DNR) | Yes | | Exposure | Global, central | | AGC (Automatic Gain Control) | Yes | | Auto White Balance | Yes | | Compensation | Backlight, highlight, frontlight | | Sharpness | Yes | | Smart IR | Yes | | Defogging | Yes | | Image Setting | Yes | | Defect Correction | Yes | | Power | 12 VDC ±10% (power supply not included) | | Power Consumption | Less than 1 W with IR off
Less than 4 W with IR on | | IP Rating | IP66 | | IK Rating | IK10 | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Operating Humidity | 10 to 90%, RH | | Dimensions | Ø5.9 x 4.5" / Ø150 x 114.3 mm | | Weight | 2.1 lb / 953 g | | | | Package Weight | 4.285 lb | | Box Dimensions (LxWxH) | 7.7 x 7.3 x 7.25" |
