User Manual for Spectra Cine C310 Candela IIA-SP Spot Photometer Click to enlarge the picture
Contents of the user manual for the Spectra Cine C310 Candela IIA-SP Spot
- Product category: Light Meters Spectra Cine
- Brand: Spectra Cine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spectra Cine Light Meters
|
User manual for the Spectra Cine C310 Candela IIA-SP Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spectra Cine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spectra Cine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spectra Cine product will considerably shorten its lifespan!
|

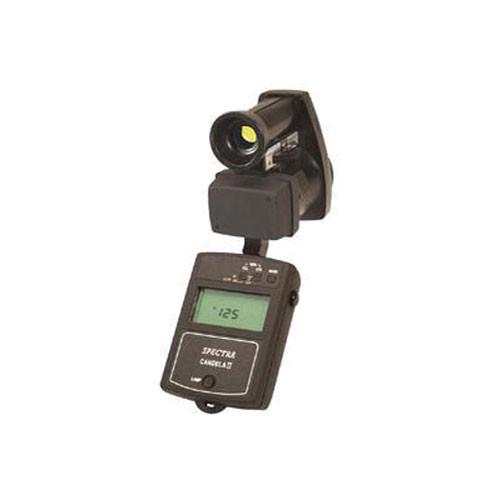

Product description The Spectra Candela IIA- SP Spot Photometer, Model 310 is a high-end illuminace meter designed to yield precise measurements in low light scenarios. The meter consists of hybrid integrated circuitry with its large back-lit LCD display. The meter is activated by depressing one button with the results being displayed on the easy-to-read LCD. These results read out from 0.1 to 70,000 foot-candles and 1 to 100,000 lux. This range encompasses light levels from low indoor lighting to very bright sunshine. The dual memory stores readings for future use. For the more demanding user, this meter can calculate contrast ration as well as the average of your given lighting scenario. By adding the 1° Spot Attachment (PS-305), the meter's capabilities are increased many fold. This easily mountable attachment adds a dimension to the system that other, simpler meters cannot provide. - Professional spotmeter for precise low-level readings
- Footcandles and lux measurements
- Silicon detectors with computer selected glass photopic filters
In the Box Spectra Cine C310 Candela IIA-SP Spot Photometer Spot Attachment Photodisc Soft Case Neck Strap 6-Volt Battery Manual Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spectra Cine C310 Candela IIA-SP Spot Photometer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpectra Cine Candela IIA- SP Specs | Measuring System | Hand-held spot photometer for measuring illumination intensity and luminance/brightness measurements with 1° PhotoSpot attachment; Electro-luminescent lamp for viewing displayed measurements at very low light levels | | Measuring Modes | Foot-candles and lux | | Receptor Head | Silicon Photodiode with filter | | Aperture/Shutter Priority | Not Applicable | | Display Readout | Illuminance Level: 0.1 to 70,000 fc and 1 to 100,000 lx Luminance: 0.1 to 700,000 fl or cd/m2 (with 1° PhotoSpot accessory) Accuracy: +/- 5% of the full-scale value, when measuring blackbody sources | | ISO Range | Not Applicable | | f/Stop Display Range | Not Applicable | | Shutter Speed - Ambient | Not Applicable | | Shutter Speed - Flash | Not Applicable | | EV Range (ISO-100) | Not Applicable | | Cine Speeds | Not Applicable | | Exposure Memory | Can store up to two readings in meter memory with store/recall switch | | Shadow/Highlight Calculation | Not Applicable | | Brightness Difference | Calculates ratio of two readings from l.0:l to 999:I. in fc or fl | | Flash to Ambient Ratio | Not Applicable | | Multiple Flash | Not Applicable | | Exposure Calibration | Calibration is traceable to the National Institute of Standard Technology (NIST); NIST traceable calibration certificate included | | Power Source | One 6 volt battery #A544, PX28L, PX28 | | Dimensions | 5.5 x 2.5 x 2" (14 x 6.4 x 5cm) | | Weight | 6oz (170g) | | | | Package Weight | 2.02 lb | | Box Dimensions (LxWxH) | 12.25 x 10.0 x 3.6" |
