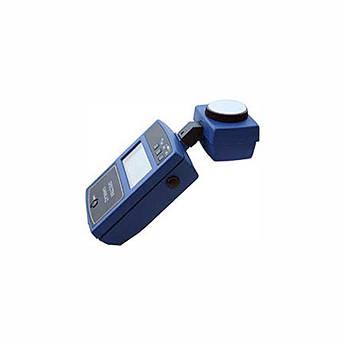

User Manual for Spectra Cine Candela SC-800 PhoRad IIIA Ambient Photometer Click to enlarge the picture
Contents of the user manual for the Spectra Cine Candela SC-800 PhoRad IIIA
- Product category: Light Meters Spectra Cine
- Brand: Spectra Cine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spectra Cine Light Meters
|
User manual for the Spectra Cine Candela SC-800 PhoRad IIIA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spectra Cine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spectra Cine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spectra Cine product will considerably shorten its lifespan!
|
Product description The Spectra-Cine Candela SC-800 PhoRad IIIA Photometer is designed for Radiologist and Radiographers application. However, the broad appeal of this meter is that it can be used by any photographer, industrialist, architect or planner wishing to achieve precise ambient light readings. This innovative, hand-held radiographic optical instrument has been specifically designed to measure ambient light intensity in footcandles or lux. Why is this meter critically important to the medical and business industry? Correct and accurate diagnosis in hospitals and doctors clinics greatly depends upon the conditions under which radiographs and images are viewed. For clinics and offices that maintain delicate and sensitive equipment (viewing boxes, image workstation monitors, image intensifier monitors), it is very important to know the precise ambient room illumination (the amount of light falling on the viewing surfaces) in lux. In addition, designers of office space often find it necessary to assure that all desk and work areas are evenly lit.
In an effort to reduce the rate of misdiagnosis (estimated to be as high as 30% by a number of research studies), the Federal Drug Administration, American College of Radiology (ACR), the American Cancer Society and the European community of radiologists have all adopted guidelines and standards for viewing lighting levels. The Spectra-Cine SC-800 PhoRad IIIA Ambient Photometer is an essential tool for quality assurance of medical imaging at Diagnostic Imaging departments in hospitals and clinics. - A high quality meter for radiologists or anyone needing precise ambient light readings (in footcandles and lux) at Diagnostic Imaging departments or in hospitals, clinics, offices and work areas
- Yields precise and consistent readings
- Can also be used by photographers or professionals in the construction industry to obtain exact light readings for work areas
In the Box Spectra Cine Candela SC-800 PhoRad IIIA Ambient Photometer Instruction Manual Foam-lined protective carrying case with space for accessories NIST traceable calibration and Certification 6v Battery One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spectra Cine Candela SC-800 PhoRad IIIA Ambient Photometer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpectra Cine SC-800 Specs | Measuring System | Ultra-stable silicon photodiode, together with computer selected glass filters to match the spectral response of the human eye | | Measuring Modes | Footcandles and Lux | | Receptor Head | Electroluminescent lamp for backlit display; Head rotates 270° | | Aperture/Shutter Priority | Not applicable | | Display Readout | 0.1 to 49.9" in 0.1 increments; 50 to 999 in 1 increments; 1,000 to,99,990 in 10 increments; Accuracy: Incandescent light source (CIE Illuminant A) +/- 2.5% of the measured value. Additional error when measuring non-blackbody sources +/- 3% Operating Temperature Range: 32°C to 130°F (0°C to 55°C) | | ISO Range | Not applicable | | f/Stop Display Range | Not applicable | | Shutter Speed - Ambient | Not applicable | | Shutter Speed - Flash | Not applicable | | EV Range (ISO-100) | Illuminance range: 1 to 100,000 lx; 0.1 to 70,000 fc | | Cine Speeds | Not applicable | | Exposure Memory | Memory store and recall (up to three readings) | | Shadow/Highlight Calculation | Not applicable | | Brightness Difference | Not applicable | | Flash to Ambient Ratio | Not applicable | | Multiple Flash | Not applicable | | Exposure Calibration | Not specified | | Power Source | One six (6) volt battery #A544, PX28L, PX28 | | Dimensions | 5.5 x 2.5 x 2" (140 x 63.5 x 50mm) | | Weight | 6 oz (168 g) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 12.1 x 9.4 x 3.5" |
