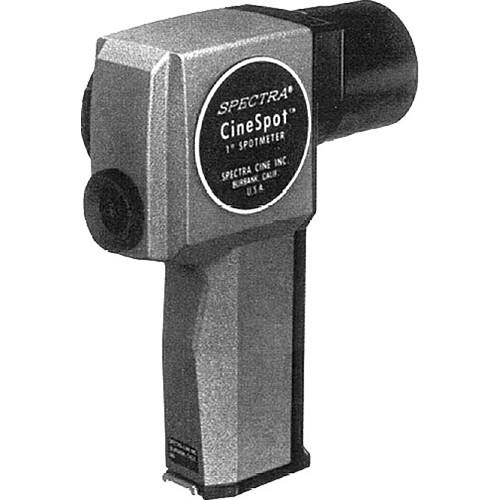

User Manual for Spectra Cine Cinespot One-Degree Spotmeter Click to enlarge the picture
Contents of the user manual for the Spectra Cine Cinespot One-Degree Spotmeter
- Product category: Light Meters Spectra Cine
- Brand: Spectra Cine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spectra Cine Light Meters
|
User manual for the Spectra Cine Cinespot One-Degree Spotmeter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spectra Cine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spectra Cine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spectra Cine product will considerably shorten its lifespan!
|
Product description Spectra CineSpot Spotmeter is exclusively designed to measure screen brightness and uniformity in theaters, review rooms. CineSpot has received one of the highest awards from the Academy of Motion Picture Arts and Sciences The economical, compact CineSpot 1° Spotmeter from Spectra Cine has been designed for easy use and for making simple yet accurate screen brightness measurements and other field measurements. The CineSpot features eye-level, magnified, thru-the-lens viewing of the 1° spot area in a large (21° diagonal) rectangular viewing field, with simultaneous display of the meter reading superimposed in the viewing field. For accuracy, each individually calibrated instrument uses an ultra-stable silicon photodetector, together with computer-selected glass filters to Readbility of the CineSpot extends from 0.5 to 300 foot-lamberts, with excellent resolution in the critical 10 to 30 foot-lambert region. Meaurement functions - Screen brightness and uniformity
- Stray light and surround bightness
Meter is particularly suited for - Movie and side projection systems
UPC: 860000641067 In the Box Spectra Cine Cinespot One-Degree Spotmeter Carrying case 9v battery One-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spectra Cine Cinespot One-Degree Spotmeter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpectra Cine SC600 Specs | Measuring System | Luminance (Specify choice of units: footLamberts or Candelas/sq. meter); Ultra-stable Silicon Photovoltaic Cell | | Measuring Modes | . | | Receptor Head | Eye-level, magnified, thru-the-lens viewing of the 1° spot area in a large (21° diagonal) rectangular viewing field, with simultaneous display of the meter reading superimposed in the viewing field; 1.6x magnification, erect system with focusing eyepiece; illuminated scale for low-light readability; Fixed 4' (1.2m) to infinity; Usable from 1' (.3m) to infinity | | Aperture/Shutter Priority | . | | Display Readout | . | | ISO Range | Low Range, 0 to 30 footLamberts (0 to 100 cd/m2 on metric version) readings legible to 0.5 footLamberts. High Range, 0 to 300 footLamberts (0 to 1,000 cd/m2 on metric version); accessory 10X and 100X Attenuators increase upper limit to 3,000 or 30,000 footLamberts (10,000 or 100,000 cd/m2). | | f/Stop Display Range | . | | Shutter Speed - Ambient | . | | Shutter Speed - Flash | . | | EV Range (ISO-100) | Matched to the human eye response (CIE 1931 photopic luminosity function), using computer-selected glass filters; Plus or Minus 1% of full scale or 5% of reading, which ever is greater, when measuring blackbody sources; traceable to the (NIST) National Institute Of Standards Technology | | Cine Speeds | . | | Exposure Memory | . | | Shadow/Highlight Calculation | . | | Brightness Difference | . | | Flash to Ambient Ratio | . | | Multiple Flash | . | | Exposure Calibration | . | | Power Source | Standard 9v battery (included) | | Dimensions | 5 x 2 x 6.4" (125 x 51 x 163 mm) | | Weight | 15oz (.42kg) | | Specialties | . | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 13.0 x 10.5 x 6.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
