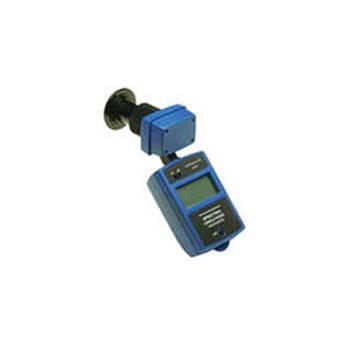

User Manual for Spectra Cine SC-810A PhoRad Luiminance Photometer Click to enlarge the picture
Contents of the user manual for the Spectra Cine SC-810A PhoRad Luiminance Photometer
- Product category: Light Meters Spectra Cine
- Brand: Spectra Cine
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spectra Cine Light Meters
|
User manual for the Spectra Cine SC-810A PhoRad Luiminance Photometer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spectra Cine product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spectra Cine user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spectra Cine product will considerably shorten its lifespan!
|
Product description The Spectra SC-810A PhoRad Luminance Photometer is an easy-to-use handheld meter designed to allow Radiologists and Radiographers to measure light from sources like medical diagnostic displays, film light boxes, monitors and collimator light fields. Just as in standard photography, the integrity of the viewing medium is paramount to accurate viewing of the image. In the case of Diagnostic Imaging (Radiology), for which the SC-810A was created, the stakes are considerably higher, insofar as correct readings can significantly reduce misdiagnosis. The SC-810A is in compliance with Standard Practice for Radiographic Examination requirements. It measures luminance in candelas per meter squared (nits) or foot-lamberts with its Luminance Probe. - Type
- Spectra PhoRad Photometer System is a completely portable hand-held, battery powered auto-ranging photometer for measuring luminance intensity in candelas per meter squared (cd/m²) or foot-lamberts (fl) with the Luminance Probe.
- Light Sensor
- Ultra-stable silicon photodiode, together with computer selected glass filters to match the spectral response of the human eye (the CIE 1931 photopic response function) V (λ)
- Measuring Principle
- Contact measurement with the Luminance Probe placed directly on the surface to be measured.
- Calibration
- Calibration is traceable to the National Institute of Standard Technology (NIST), Washington D.C. Certified for one year.
UPC: 860000641098 In the Box Spectra Cine SC-810A PhoRad Luiminance Photometer Carrying Case Attenuator Instruction Manual NIST Traceable Calibration and Certification Battery 1 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spectra Cine SC-810A PhoRad Luiminance Photometer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpectra Cine PhoRad Specs | Sensor | Ultra-stable silicon photodiode, 19 mm measuring surface (625 x 625 mm) | | Measuring System | Contact measurement with the Luminance Probe placed directly on the surface to be measured | | Measuring Modes | Candelas per meter squared (cd/m²) or foot-lamberts (fl) | | Receptor Head | Yes, Luminance Probe | | Luminance | Range: 1 - 100,000 cd/m2
2X attenuator extends upper range to 199,980 | | Accuracy | Repeatability: ±0.2%
Incandescent light source (CIE Illuminant A) ±2.5%
Non-blackbody sources ±3%. | | Resolution | 1 - 999 in 1 cd/m2
1,000 - 99,990 in 10 cd/m2 increments | | Display Readout | Digital LCD
Lamp: Electroluminescent lamp for backlit display | | Power Source | One 6 volt battery #A544, PX28L, PX28 | | Dimensions | 5.5 x 2.5 x 2" (139.7 x 65.5 x 50.8 mm) | | Weight | 6 oz (170g) | | Operating Conditions | Temperature: 32 - 130˚F (0 - 55˚C). | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 12.0 x 9.4 x 3.6" |
