User Manual for SpectraCal AVFoundry VirtualForge Software Pattern Generator Click to enlarge the picture
Contents of the user manual for the SpectraCal AVFoundry VirtualForge Software Pattern Generator
- Product category: Video & Audio Signal Generators SpectraCal
- Brand: SpectraCal
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SpectraCal Video & Audio Signal Generators
 |
User manual for the SpectraCal AVFoundry VirtualForge Software Pattern Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SpectraCal product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SpectraCal user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SpectraCal product will considerably shorten its lifespan!
|

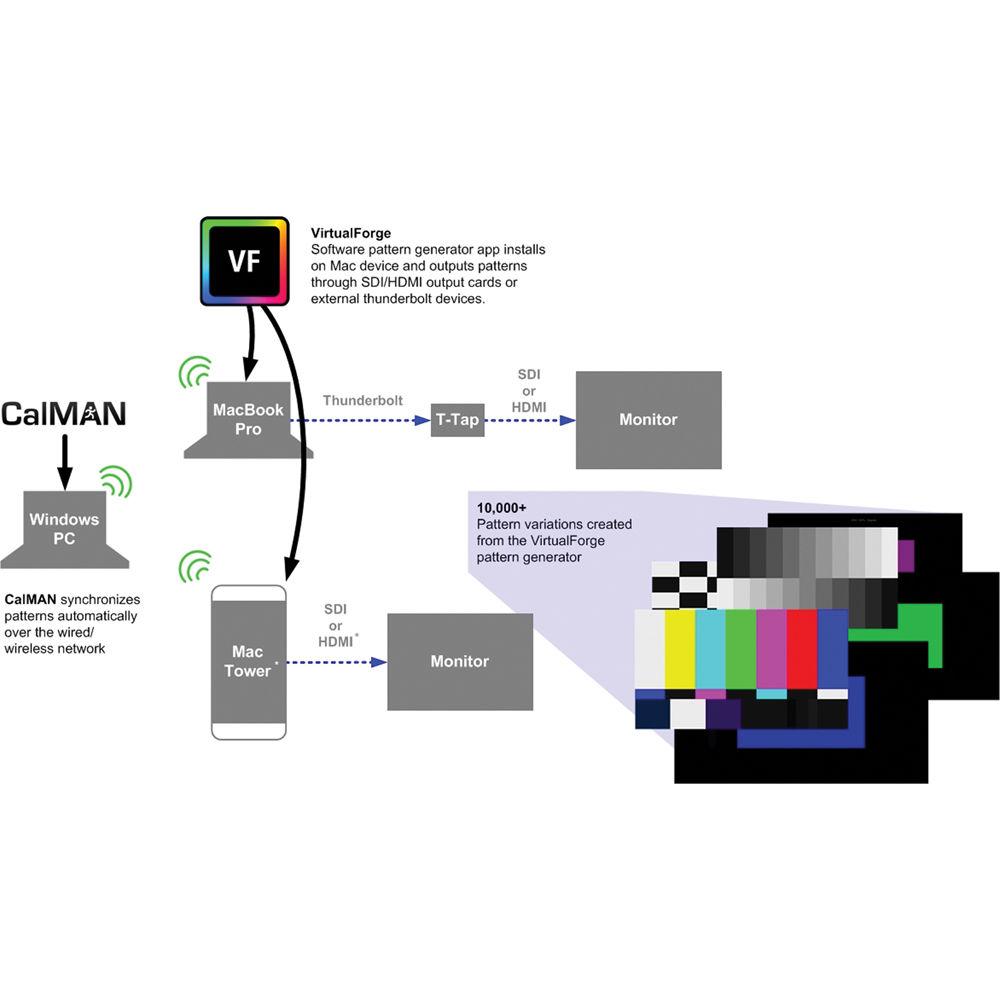

Product description The AVFoundry VirtualForge Software Pattern Generator (Download) from SpectraCal is a Mac-compatible application designed to work with the optional CalMAN calibration software to calibrate TV monitors that are driven via a video output device from a Mac workstation. It supports select AJA and Blackmagic Design output devices and is controlled by CalMAN to produce bit-accurate test patterns at any required triplet value for accurate grayscale, CMS, or 3D LUT calibration. It provides a convenient alternative to hardware-based calibration and can be used for plasmas, OLEDs, projectors, and other TV monitors. - Thousands of Patterns, Including:
-
- Basic optimization patterns
- Black to white gradient
- Grayscale with 1% increments
- CMS with variable stimuli
- Complete RGB triplets
- Luminance ramps
- Saturation sweeps
- ColorChecker patterns
- Skin tones
- APL, Constant APL
- VirtualForge Certified Video Output Devices
-
- AJA KONA 3G SDI and HDMI PCIe output device
- AJA KONA 3G in a Sonnet Thunderbolt expansion chassis
- AJA KONA LHi SDI and HDMI PCIe output device
- AJA KONA LHi in a Sonnet Thunderbolt expansion chassis
- AJA KONA LHe Plus SDI PCIe output device
- AJA KONA LHe Plus in a Sonnet Thunderbolt expansion chassis
- AJA KONA Io XT Thunderbolt I/O device
- AJA KONA Io 4K Thunderbolt 2 I/O device
- AJA T-TAP Thunderbolt SDI and HDMI output device
- Blackmagic DeckLink 4K Extreme Dual Link SDI, HDMI and analog PCIe output device
- Blackmagic DeckLink Quad SDI/HD-SDI PCIe output device
- Blackmagic DeckLink Studio SDI/HD-SDI, HDMI and analog PCIe output device
- Blackmagic DeckLink Optical Fiber SDI/HD-SDI PCIe output device
- Blackmagic DeckLink Duo SDI/HD-SDI PCIe output device
- Blackmagic DeckLink SDI SDI/HD-SDI PCIe output device
- Blackmagic DeckLink Mini Recorder 3G-SDI and HDMI PCIe output device
- Blackmagic DeckLink Mini Monitor 3G-SDI and HDMI PCIe output device
* DeckLink SDI support in CalMAN, for sourcing VirtualForge calibration signals, is limited to the default YCrCb 4:2:2 10-bit pixel format, which the DeckLink control app does not provide the option of changing. CalMAN does not support DeckLink HDMI outputs for sourcing. Table of Contents
|
Upload User Manual
Have you got an user manual for the SpectraCal AVFoundry VirtualForge Software Pattern Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpectraCal GENGPU Specs | System Requirements | Mac OSX version 10.8.1 or later
Either PCIe or Thunderbolt support |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
