Product description The VideoForge PRO Video Generator from SpectraCal outputs highly accurate, reference-level video test patterns via HDMI and supports resolutions up to 4096 x 2160/60 Hz. The generator supports HDR10, HLG, and Dolby Vision technology for advanced methods of calibration. The RGB triplet pattern renderers provide complete grayscale, CMS, and luminance sweeps. In addition to brightness, contrast, and sharpness control adjustments, the test patterns supplied include the following: SMPTE Bars, Gray Steps 16, CCRA, Multiburst, ANSI, and White Window.

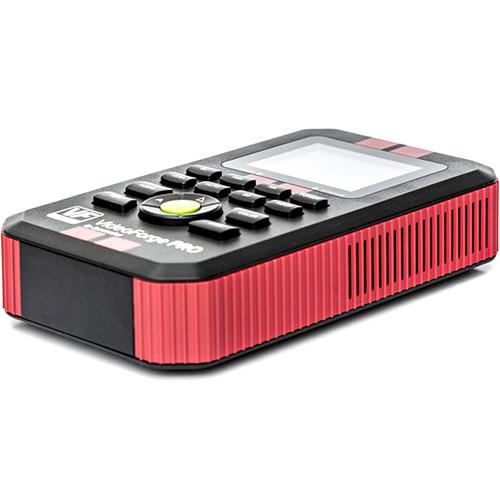

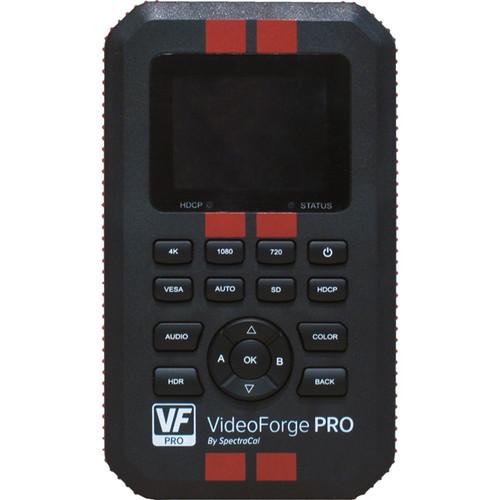

The generator supports timing resolutions of up to 576i/59.94 Hz in SD, 720P/60 Hz in 720, 1920 x 1200 in VESA, 1080i/60 Hz in 1080, and 4096 x 2160/60 Hz in 4K. The handheld VideoForge PRO features a rugged construction for daily use, yet is compact and lightweight. A 2.5" LCD monitor and simple menu makes it user-friendly. A mini-USB cable is included for CalMAN remote control and ISP firmware updates. - Up to 36-bit per pixel color depth
- Audio test tones for HDMI audio confidence testing
- A/B memories to store and recall preferred unit configurations
- Completely automated with CalMAN software for fast pattern generation

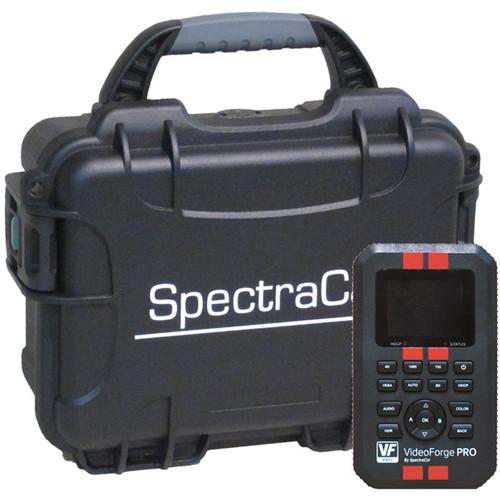

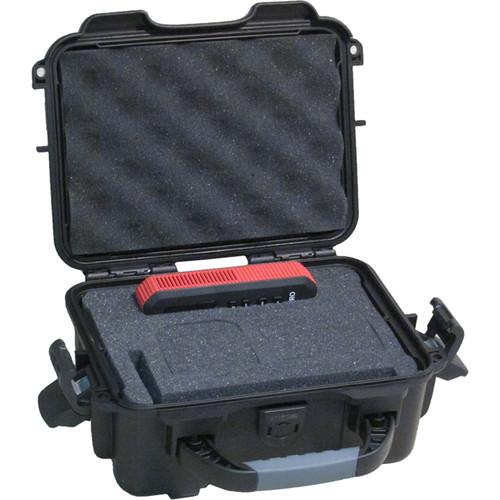

UPC: 635934439789 In the Box SpectraCal VideoForge PRO Video Generator with 4K/UHD HDR HDMI Output Rechargeable Battery Power Supply with Universal Adapters Mini-USB to USB Type-A Cable Carrying Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SpectraCal VideoForge PRO Video Generator with 4K UHD HDR HDMI Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpectraCal VideoForge PRO Specs | Supported Resolution | Up to 4K 4096 x 2160/60 Hz | | Supports | HDMI 2.0 a/b
HDCP 2.2 and 1.x
HDR10, HLG, and Dolby Vision | | Supported Clock Rates | 600 Mcsc (594 MHz) maximum | | Maximum Throughput | 6 Gb/s per channel
18 Gb/s total | | Encoding | RGB, YCbCr | | Video Sampling | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 | | Color | 8-, 10-, and 12-bit | | Audio | LPCM

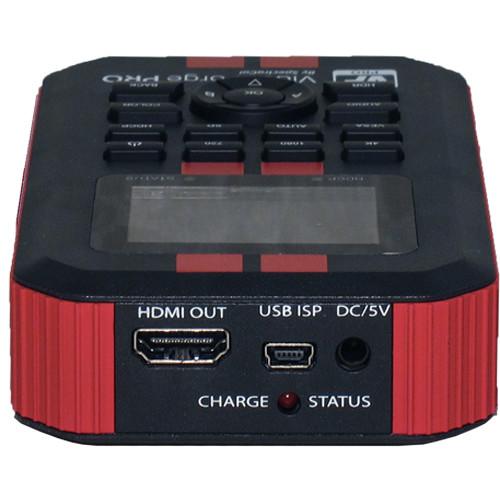

Source: Internal iKHz Test Tone (Sine Wave) | | Connectors | 1 x HDMI, video output
1 x mini-USB, ISP firmware update input
1 x DC, power input | | Power Supply | 100 to 240 VAC, 50/60 Hz, 0.5 A input to 5 VDC, 2 A output | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Compliance | FCC | | Dimensions | 5.3 x 3.0 x 1.0" / 13.3 x 7.6 x 2.5 cm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 12.2 x 12.1 x 5.5" |
