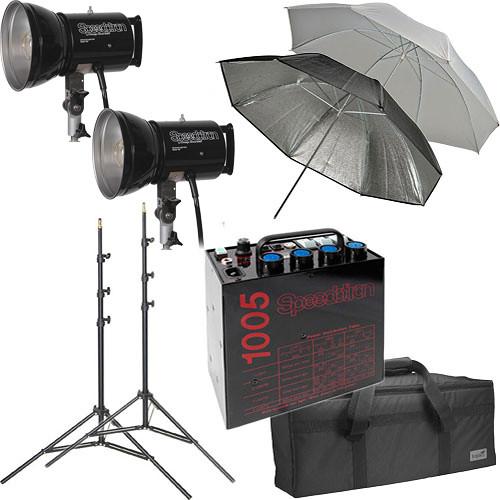

User Manual for Speedotron 1005 CC Digital Studio 2 Head Kit

• Product category: Power Packs Speedotron
• Brand: Speedotron
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Speedotron Power Packs

Product description

• Speedotron 1005 Power Supply (120VAC) Meet the youngest sibling in the Speedo family--the Speedotron 1005 Power Supply (120VAC). This rugged, dust-proof power pack can be dialed down from 1000 w/s to 44 w/s (22 w/s using two heads) in 1/4 f-stop stages to make subtle lighting changes quickly. Up to 4 flash heads can operate symmetrically or asymmetrically, giving you plenty of choices on location or in the studio. Low voltage trigger connection makes the 1005 safe for digital cameras. With a top recycling speed of 1.75 seconds at full power, the 1005 makes a great choice for corporate portraits, interiors, and much more. This kit is supplied for use with 120VAC.
  • Rugged construction for years of reliable use
  • Four arc-protected outlets in three power channels
  • Variable power control in 1/4-stop increments for subtle lighting effects
  • Built-in Optical Slave--can be automatically triggered by other strobes
  • Low-voltage trigger connection is safe for digital cameras
  • 2-year Limited Warranty, with an optional Plus-3 Protection Plan available
  UPC: 689670188807
• 2 x Speedotron 102 Lamphead with 7" Reflector This is the tried-and-true, standard flash head of the Speedotron Black Line. Each 102 head is consistent in power output, and ease of reflector, flash tube, and model light change.
  All Black Line light units utilize modular construction for easy storage and travel and are cabled with the new locking/quick-release power supply connector which is compatible with all older Black Line power supplies. A power supply for this flash head is required.
  Modular Construction
  • Aluminum, durable for years of studio and location use and abuse.
  Easy to Control
  • Sure-grip handle for precise aiming of light
  Easily Replaceable Flash Tube
  • 3200w plug-in vented UV coated quartz flash tube #14571. Flash tube may also be replaced with non-UV coated tube #14570.
  Fan Cooled
  • High-efficiency -- necessary for rapid firing, constant model light use, and use with a softbox
  Removeable Reflector
  • 7" grid reflector included, the 102 head will accept all of Speedotron's Blackline reflectors up to and including the 22" beauty light.
  Modeling Light
  • 250w quartz modeling lamp #14520, also known as a GBESS, included. Will also accept a 150W quartz bulb, for cooler running.
  Long-Reaching Cable
  • 20' cable included. Head extension cables are available for heads in use at longer distances from the power pack.
  UPC: 689670188838
• 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349
• Impact Beaded Silver Umbrella (33") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox. Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 33" Beaded Silver Umbrella is suggested for use in head-and-shoulders portraits for one or two persons. UPC: 847628013261
• Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292
• Impact Light Kit Bag #2 (34 x 13.5 x 12") The black Light Kit Bag #2 (34 x 13.5 x 12") from Impact makes transporting your lighting kit easy and secure. The bag is designed to hold three monolights along with their reflectors (such as Impact VC500LR), four stands, boom, umbrellas, cables and other support gear but can also be used to hold other lighting equipment instead. You'll have plenty of room to take along enough lighting gear for a portrait session - all packed in an organized and accessible way. A touch fastened divider tray separates the stands, boom and umbrellas from the lights preventing them from bumping together and causing scratches or damage. For additional smaller equipment such as cables and small accessories, there are three interior 10.5 x 8.0" zippered mesh pockets.The bag is made from soft, padded water-resistant nylon and contains six movable touch fastened interior dividers (6 large, 2 small) that will permit you to configure the bag to accommodate the gear you need that day. The Light Kit Bag is carried by its two 2" wide overlapping top carry handles that can easily be extended into dual shoulder straps. The contents are accessed via dual zippers that when placed together will accept a user-supplied lock. For even more protection, the bottom of the bag contains three rubber feet for when the bag is placed on the ground. And the bag folds down to a quarter of its height for convenient storage and easy setup. Whether for storage or transport, the Impact Light Kit Bag will serve both pro or amateur well.
  • The soft padded carry case is designed to hold three monolights with reflectors, four light stands, umbrellas, cables and other accessories
  • The interior has six movable, touch fastened dividers that permit you to configure the bag to suit your needs; dividers consist of six large and two smaller styles
  • 2" (5.1 cm) wide overlapping dual carry handles that convert to a shoulder strap
  • Interior has three zippered 10.5 x 8.0" mesh pockets (26.7 x 20.3 cm)
  • Touch fastened protective nylon tray separates light stands and umbrellas from monolights
  • Water-resistant padded nylon construction
  • Folds down to less then 4" for convenient storage and easy setup
  • Dual zippered opening; accepts user-supplied lock
  UPC: 847628030619

• 1005 Power Supply (120VAC) wqfazsrrzft
• 2-year Limited Warranty, with an Optional Plus-3 Protection Plan Available

• 2 x 102 Black Line - 2400 Watt/Second Lamphead with 7" Reflector and UV Coated Flashtube

• 2 x Impact - Air-Cushioned Light Stand (Black, 8')

• Impact - Umbrella - Beaded Silver (33")

• Impact - Umbrella - White Translucent (43")

• Impact - Light Kit Bag #2 (34 x 13.5 x 12")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Speedotron 1005 Power Supply (120VAC)

  Maximum Watt/Seconds	1000
  Voltage	120VAC
  Guide Number	408 at ISO 100
  Recycle Time	1.75 sec
  Flash Duration	1/360 - 1/1250 sec
  Distribution	Symmetrical/asymmetrical
  Head Outlets	Four outlets
  Sync	1/4" (6.35 mm) Phono
  Flash Ready Indicator	LED
  Operating Voltage	95-130V, 50-60Hz
  Built-in Slave Cell	Yes
  Dimensions	8 x 4.62 x 9.5" (20.3 x 11.7 x 24.1 cm)
  Weight	7.9 lbs (3.58 kg)

  Box Dimensions (LxWxH)	15.1 x 11.4 x 7.7"

• 2 x Speedotron 102 Lamphead with 7" Reflector

  Maximum Watt/Seconds	2400 w/s
  User Replaceable Flashtube	Yes, MW8QVC or MW8QV
  Changeable Reflector	Yes
  Circuit Protection	Circuit breaker on power pack
  Cable Length	20'
  Modeling Light Wattage	250W
  Modeling Light On/Off Switch	Yes
  Protective Glass Dome	Yes
  Fan Cooled	Yes
  Dimensions	8.5 x 7" with reflector
  Weight	8.5lbs with cord and reflector

  Box Dimensions (LxWxH)	18.0 x 12.0 x 12.0"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"

• Impact Beaded Silver Umbrella (33")

  Size	33.0" / 83.8 cm
  Interior	Silver
  Exterior	Black
  Shaft Diameter	8 mm
  Folded Size	L: 23.0" / L: 58.4 cm

  Box Dimensions (LxWxH)	22.95 x 2.75 x 2.4"

• Impact White Translucent Umbrella (43")

  Size	43.0" / 109.2 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 28.3" / L: 71.8 cm

  Box Dimensions (LxWxH)	29.0 x 2.7 x 1.65"

• Impact Light Kit Bag #2 (34 x 13.5 x 12")

  Interior Dimensions	34 x 13.5 x 12" / 86.4 x 34.3 x 30.5 cm

  Closure Type	Zipper
  Carry and Transport Options	2 x Connecting Handstrap
  Material of Construction	Nylon
  Exterior Dimensions (W x H x D)	34.5 x 14 x 13" / 87.6 x 35.6 x 33 cm
  Weight	5.8 lb / 2.6 kg

  Box Dimensions (LxWxH)	35.0 x 14.0 x 12.5"
