User Manual for Speedotron 1205CX 2 CC Head Air Travel Kit - Includes: 1205CX - 1200 W S Power Pack, 2-202VF Color Corrected Flash Heads, Umbrellas, Sync Cord, Stands, 3-Section Air Case Click to enlarge the picture
Contents of the user manual for the Speedotron 1205CX 2 CC Head Air
- Product category: Power Packs Speedotron
- Brand: Speedotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speedotron Power Packs
 |
User manual for the Speedotron 1205CX 2 CC Head Air contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speedotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speedotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speedotron product will considerably shorten its lifespan!
|

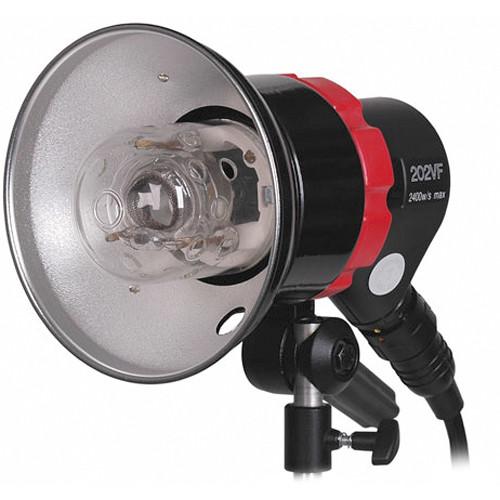

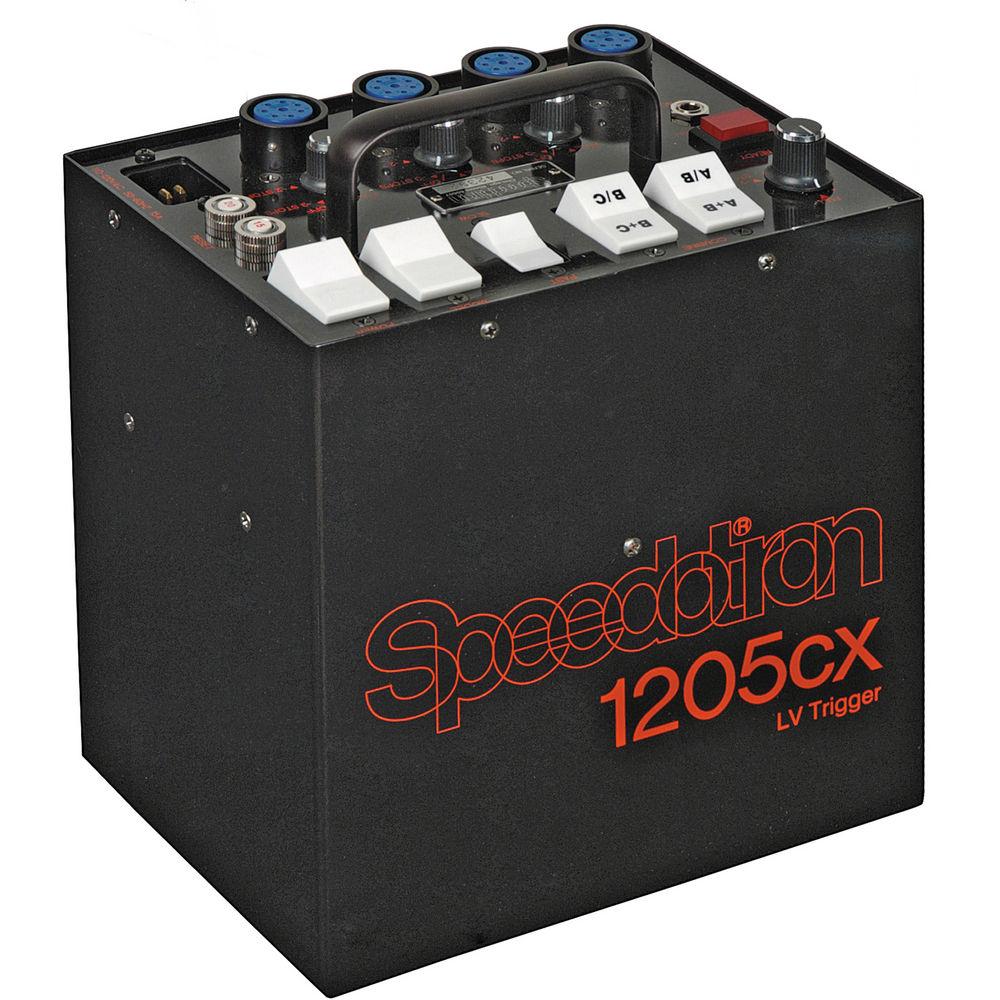

Product description The 1205CX power pack is Speedotron's workhorse. True power output ratioing, variable dial-down power and model lamp intensity give precise control over power distribution to the flash heads. Electronics are engineered for reliability and safety on location assignments, and are housed in a dust-proof and compact sealed case. The 202VF CC flash heads are compact, with 7" zoom reflectors. A focusing reflector mount permits variable narrow to wide-angle coverage with all Black Line reflectors and accessories. The heads are built for easy storage and travel,and are cabled with the new locking/quick-release power supply connector. The flash tubes are color corrected, to give a slightly warmer hue to the light output.This 2 head 1200 w/s kit is complete with 9' light stands for strong support, umbrellas for softening and broadening the light output, and a 3-section padded case that will endure airline shipping, and still protect your investment. - The pack and heads' compact design make this kit perfect for location photography.
- Very short recycling time, even at full power -- great for moving subjects.
- 3-Stop range Variable Power Control
Variable modeling light control on each channel - 4 arc-protected outlets in 3 power channels, and heavy-duty switches provide safety and durability.
- Acoustic signal "beeps" when power pack is fully recycled.
- Heads are high-efficiency -- necessary for rapid firing, constant model light use, and use with a softbox.
The heads have color-corrected flash tubes for a warmer hue of light. - Variable beam focus collar alters the light output, and accepts all of Speedotron's Black Line Reflectors.
- Head extension cables are available for heads in use at longer distances from the power pack.

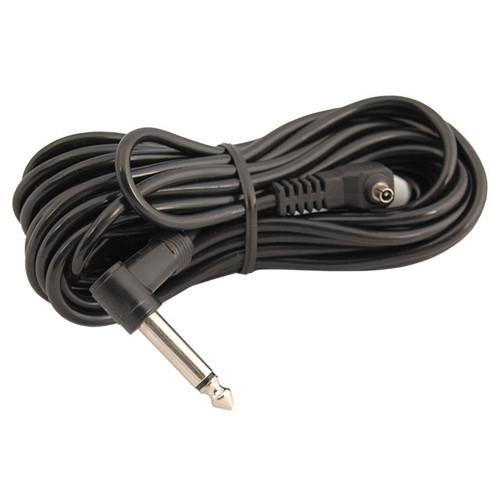

- 20' Phono to PC Sync Cord (13562) is included.
- A silver and a white umbrella are included to soften the light output to your particular needs.

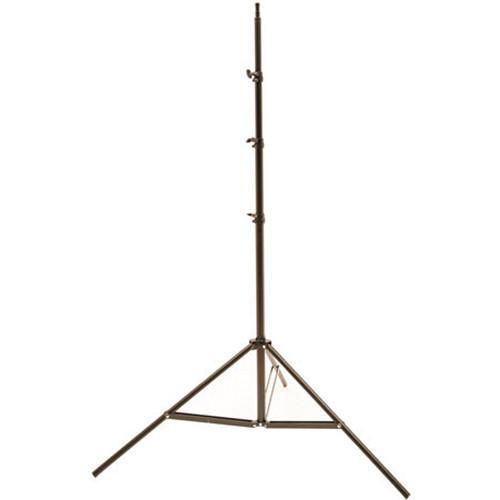

- The included light stands support the flash heads and accessories.

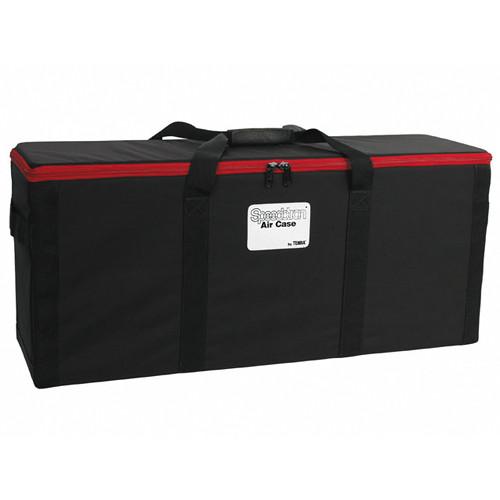

- The travel case is built by Tenba -- a name well known for stury, air-shippable equipment cases.

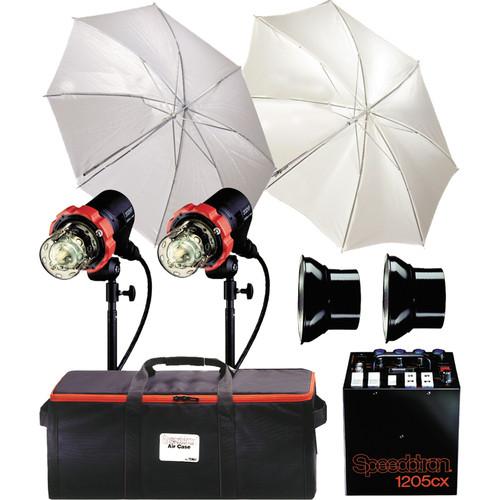

UPC: 689670188821 In the Box Speedotron 1205CX 2 CC Head Air Travel Kit - Includes: 1205CX - 1200 W/S Power Pack, 2-202VF Color Corrected Flash Heads, Umbrellas, Sync Cord, Stands, 3-Section Air Case 1205CX 1200 w/s power pack (11249) 2 x 202VF CC flash heads (12215) include:
flashtubes (14561), modeling lights (GBESS)

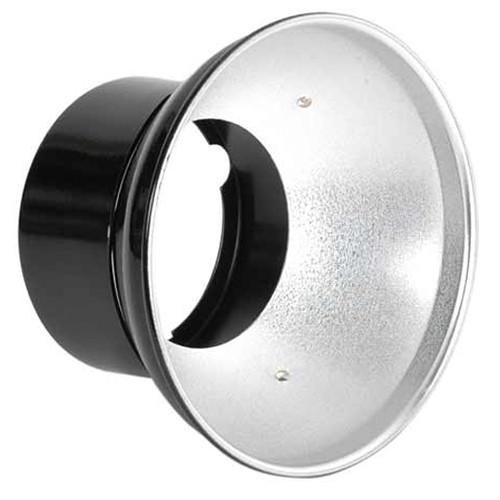

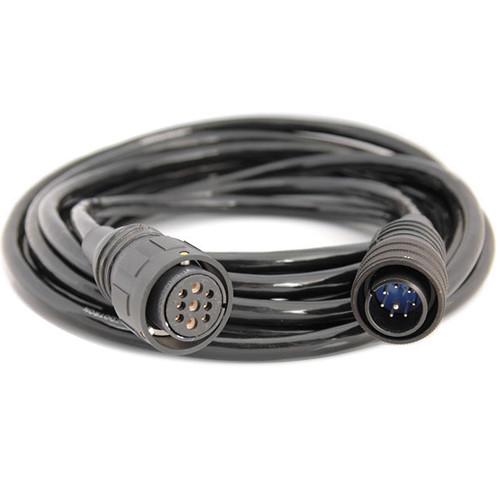

20' head cables (13200), 7" reflectors (14222)
Plastic tube covers (14256) 48" white reflective umbrella (24526) 48" silver umbrella (24535) 2 x 9' Stands (15510) 15' Phono to PC Sync Cord (13562) 3-Section travel case (15554) 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speedotron 1205CX 2 CC Head Air Travel Kit - Includes: 1205CX - 1200 W S Power Pack, 2-202VF Color Corrected Flash Heads, Umbrellas, Sync Cord, Stands, 3-Section Air Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeedotron 1205CX Specs | Maximum Watt/Seconds | Power Pack: 1200 w/s
Flash Heads: 3200 w/s | | Guide Number | 500-270 @ ISO 100, in feet w/202VF Light, 11.5" reflector forward (350) & back (900) positions | | Recycle Time | 0.9 second @ full power | | Flash Duration | In seconds, with 202VF: 1/500 @ full, 1/900 @ 1/2, 1/1425 @ 1/4 power | | Head Outlets | 4 | | Flash Ready Indicator | Audible, LED | | Built-in Slave Cell | None | | Circuit Protection | Circuit Breakers - Pack and Head | | Fan Cooled | Yes | | User Replaceable Flashtube | Yes, 14561 or 14560 | | Changeable Reflector | Yes | | Cable Length | 20', detachable | | Modeling Light Wattage | 250W (GBESS), switchable | | Protective Glass Dome | Yes | | Weight | Power Pack: 15lbs (6.8kg)
Flash Heads: 10.48lbs (23kg) with cord and reflector, each | | Dimensions | Power Pack: 6.4 x 8.8 x 10" (16.25 x 22.35 x 25.4cm) | | Kit Weight | 59.28lbs (27kg) | | | | Package Weight | 59.0 lb | | Box Dimensions (LxWxH) | 38.5 x 19.0 x 12.0" |
