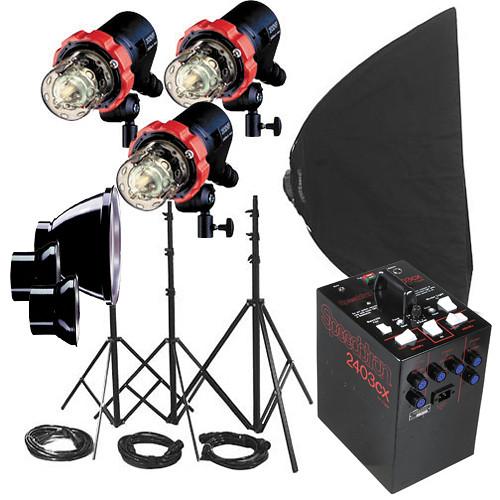

User Manual for Speedotron 2403CX 3-CC Head 2400Ws Flash Kit Click to enlarge the picture
Contents of the user manual for the Speedotron 2403CX 3-CC Head 2400Ws Flash
- Product category: Power Packs Speedotron
- Brand: Speedotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speedotron Power Packs
|
User manual for the Speedotron 2403CX 3-CC Head 2400Ws Flash contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speedotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speedotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speedotron product will considerably shorten its lifespan!
|
Product description This Speedotron 3 Head 2400Ws Kit includes a large softbox to soften and broaden the light output, and 3 heavy duty light stands to support the heads with any accessories. Add a travel case of your choice, and this becomes a high-powered location kit powerful enough for most applications. The 2403CX is a step up from a basic power pack, built for rapid, high-powered shooting. It offers true power output ratio, variable dial-down power control, and six quick release light unit outlets. This adds up to a range of 530 power options. Each 202VF UV flash head incorporates a focusing reflector mount which permits variable narrow to wide-angle coverage with all Black Line reflectors and accessories. It is fan-cooled, to protect it during long photo sessions with a softbox mounted to it. The UV coated flashtube warms the hue of the light output by 300°K. All Black Line light units utilize modular construction for easy storage and travel and are cabled with the new locking/quick-release power supply connector. 2400Ws Power Pack - Fast recycling: 2 second recycle @ full power
Faster recycling time at lower power levels allows shooting moving subjects - 1/3570 second flash duration with a 103 head @ low power freezes most action clearly
- Asymmetrical flash distribution for flexible control of power through each head
- Plug or unplug any of the 6 lampheads without shutting down the power pack
- Fan cooling protects circuits in the power pack, and in the flash head
Flash Heads - Variable beam focus collar accepts all of Speedotron's Black Line Reflectors
- Head extension cables are available for heads in use at longer distances from the power pack
Accessories - Large softbox provides broad, even, direct lighting.
36 x 48" (91.4 x 122cm) with mounting ring - Heavy duty light stands support the heads even with accessories
UPC: 689670188685 Table of Contents
|
Upload User Manual
Have you got an user manual for the Speedotron 2403CX 3-CC Head 2400Ws Flash Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeedotron 2403CX Specs | Maximum Watt/Seconds | Power Pack: 2400
Flash Head: 3200 | | Guide Number | 710-380 @ ISO 100, in feet with 202VF light | | Recycle Time | 2.0 seconds @ full power | | Flash Duration | In Seconds: with 202VF: 1/300 @ full, 1/500 @ 1/2, 1/900 @ 1/4 power | | Head Outlets | 6 | | Flash Ready Indicator | Audible, LED | | Built-in Slave Cell | None | | Circuit Protection | Circuit Breakers - Pack and Head | | Fan Cooled | Yes, Power pack and flash heads | | User Replaceable Flashtube | Yes, 14561 or 14560 | | Changeable Reflector | Yes | | Cable Length | 20', detachable | | Modeling Light Wattage | 250W (GBESS), switchable | | Protective Glass Dome | Yes | | Dimensions | Power Pack: 9 x 12 x 14" (22.86 x 30.48 x 35.56cm)
Flash Head: 9 x 7" (22.8 x 17.8cm) with 7" reflector | | Weight | Power Pack: 27 lbs (12.1kg)
Flash Head: 10.48 lbs (23kg) with cord and 7" reflector, each | | Kit Weight | 81 lbs (37kg) | | | | Package Weight | 81.0 lb | | Box Dimensions (LxWxH) | 37.0 x 29.0 x 14.0" |
