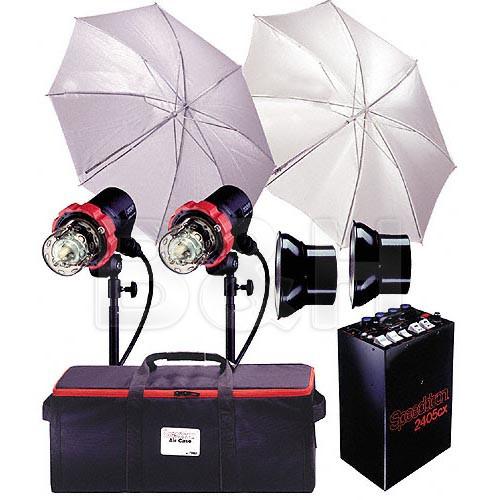

User Manual for Speedotron 2405 CX 2 CC Head Air Travel System - Includes: 2405CX - 2400 W S Power Pack, 2-202VF-CC Flash Heads, Reflectors, Light Stands, Umbrellas, Sync Cord, Case Click to enlarge the picture
Contents of the user manual for the Speedotron 2405 CX 2 CC Head
- Product category: Power Packs Speedotron
- Brand: Speedotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speedotron Power Packs
 |
User manual for the Speedotron 2405 CX 2 CC Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speedotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speedotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speedotron product will considerably shorten its lifespan!
|

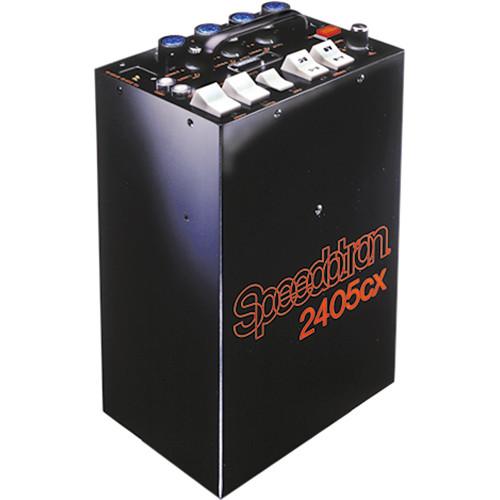

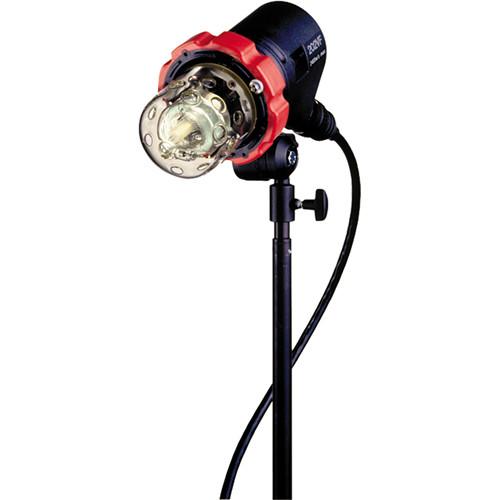

Product description The 2405CX offers true power output ratioing, variable dial-down power and model lamp dimmer dials give absolute control. Electronics in this unit are engineered for reliability and safety on location shoots, and are housed in a dust-proof, compact, sealed case.The 202VFUV flash heads are compact, universal light units with 7" reflectors. The head incorporate a focusing reflector mount which permits variable narrow to wide-angle coverage with all Black Line reflectors and accessories.This 2 head 2400 w/s kit includes umbrellas for softening the light output, and light stands to support the heads and accessories. Add a travel case of your choice to complete this kit. - Fast Recycling: 2 seconds recycle at full power allows action shooting.
- Asymmetrical Selector multiplies head power combinations
- Output range of 100-2400 w/s through a single head
- Independently variable modeling light control (stepless) on each channel from off to full output
- High-efficiency -- necessary for rapid firing, constant model light use, and use with a softbox
- Head extension cables are available for heads in use at longer distances from the power pack
- Variable beam focus collar accepts all of Speedotron's Black Line Reflectors
- The included umbrellas soften and broaden the light output.
- The included light stands support the flash heads and accessories.

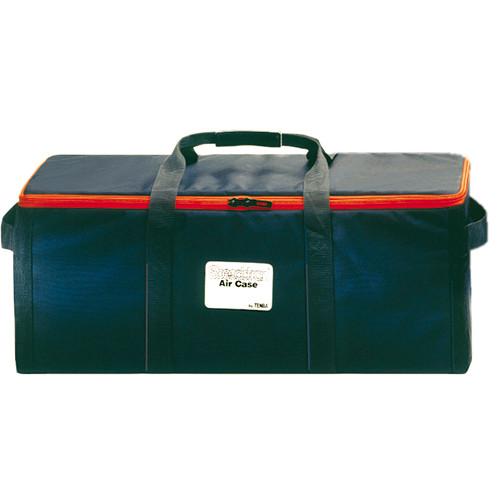

- The travel case can withstands the rigors of air shipping.
UPC: 689670188968 In the Box Speedotron 2405 CX 2 CC Head Air Travel System - Includes: 2405CX - 2400 W/S Power Pack, 2-202VF-CC Flash Heads, Reflectors, Light Stands, Umbrellas, Sync Cord, Case 2405CX Power Pack with 15' Phono to PC Sync cord (11254, 13562) 2 x 202VFUV7 Flash Heads with 7" Umbrella Reflectors (122157) The flash heads listed above include:
UV flashtubes (14561), modeling lights (GBESS), power cables (13200), tube covers (14256) 48" Silver Umbrella (24535) 48" White Umbrella (24526) 2 x 9' Stands (15510) 3-Section Air Case (15554) 2 Year warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speedotron 2405 CX 2 CC Head Air Travel System - Includes: 2405CX - 2400 W S Power Pack, 2-202VF-CC Flash Heads, Reflectors, Light Stands, Umbrellas, Sync Cord, Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeedotron 2405CX Specs | Maximum Watt/Seconds | Power Pack: 2400 w/s | | Guide Number | 710-380 @ ISO 100, with 202VF Head, 11.5" reflector forward (350) & back (900) positions | | Recycle Time | 2.0 seconds @ full power | | Flash Duration | With 202VF: 1/300 sec. @ full, 1/500 @ 1/2, 1/900 @ 1/4 power | | Head Outlets | 4 | | Flash Ready Indicator | LED | | Built-in Slave Cell | None | | Circuit Protection | Circuit Breakers - Pack and Head | | Fan Cooled | Yes | | User Replaceable Flashtube | Yes | | Changeable Reflector | Yes | | Cable Length | 20', detachable | | Modeling Light Wattage | 250W (GBESS), switchable | | Protective Glass Dome | Yes | | Dimensions | Power Pack: 6.4 x 8.8 x 13" (16.25 x 47.75 x 45.7cm)
Flash Head: 9 x 7" (22.8 x 17.8cm) with 7" reflector | | Weight | Power Pack: 23lbs (10.35kg)
Flash Head: 10.48lbs (23kg) with cord, 7" reflector, each | | Kit Weight | 67.5lbs (30.6kg) | | | | Package Weight | 64.0 lb | | Box Dimensions (LxWxH) | 39.0 x 19.0 x 12.0" |
