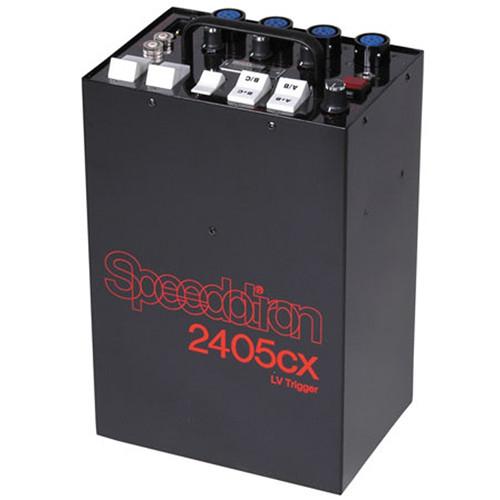

User Manual for Speedotron 2405CX Power Supply Click to enlarge the picture
Contents of the user manual for the Speedotron 2405CX Power Supply
- Product category: Power Packs Speedotron
- Brand: Speedotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speedotron Power Packs
|
User manual for the Speedotron 2405CX Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speedotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speedotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speedotron product will considerably shorten its lifespan!
|
Product description True power output ratio capability; variable dial-down power and model lamp dimmer dials give absolute control. Electronics in this unit are engineered for reliability and safety on location shoots, and are housed in a dust-proof, compact, sealed case. - Fast Recycling
- 2 seconds recycle at full power
- Variable Power
- 3 f/stop range Variable Power Control
- Flash Distribution
- Asymmetrical selector multiplies head power combinations
- Variable Output
- Output range of 100-2400W/s through a single head
- Proportional Modeling Light
- Independently variable modeling light control (stepless) on each channel from off to full output
- Arc Proof Outlets
- Plug or unplug any of the 4 lamp heads without shutting down the power pack.
Heavy-duty switches UPC: 689670188777 In the Box Speedotron 2405CX Power Supply AC Power Cable 15' Sync Cable (13562) 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speedotron 2405CX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeedotron 2405CX Specs | Maximum Watt/Seconds | 2400W/s | | Guide Number | 710-380 @ ISO 100, with 202VF Head, 11.5" reflector forward (350) & back (900) positions | | Recycle Time | 2.0 seconds @ full power | | Flash Duration | In Seconds:
w/103B: 1/450 @full, 1/770 @half, 1/1300 @quarter power
w/102: 1/225 @full, 1/400 @half, 1/670 @quarter power
w/202VF: 1/300 @full, 1/500 @half, 1/900 @quarter power
w/105: 1/1175 @full, 1/2000 @half, 1/3570 @quarter power | | Flash Variability | 100 - 2400w/s | | Distribution | Symmetrical/Asymmetrical | | Head Outlets | 4 | | Flash Ready Indicator | LED | | Operating Voltage | 110-120V AC, 50/60Hz, 15A draw @ full power, fast recycle | | Built-in Slave Cell | None | | Circuit Protection | Circuit Breakers - One for flash, one for model light | | Dimensions | 6.4 x 8.8 x 13" (16.25 x 47.75 x 45.7cm) | | Weight | 23lbs (10.35kg) | | | | Package Weight | 24.0 lb | | Box Dimensions (LxWxH) | 19.6 x 12.0 x 9.8" |
