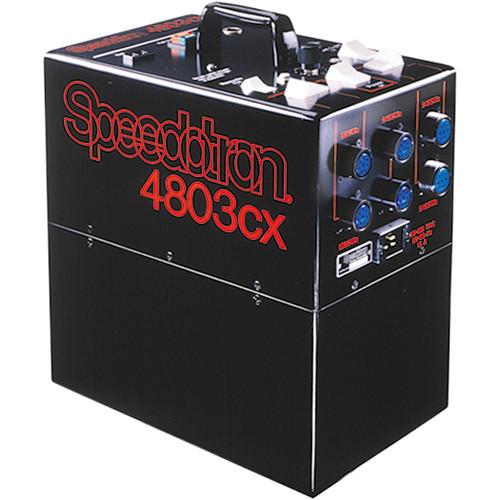

User Manual for Speedotron 4803CX - 4800 Watt Second Power Supply Click to enlarge the picture
Contents of the user manual for the Speedotron 4803CX - 4800 Watt Second
- Product category: Power Packs Speedotron
- Brand: Speedotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speedotron Power Packs
|
User manual for the Speedotron 4803CX - 4800 Watt Second contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speedotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speedotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speedotron product will considerably shorten its lifespan!
|
Product description The Speedotron 4803CX 4800 Watt/Second, 120 volt AC power supply provides the studio photographer with the maximum in sophisticated lighting versatility. This pack offers true power output ratio, variable dial-down power control, and six quick release light unit outlets. This adds up to an incredible range of an unparalleled 530 power options. - Fast Recycling
- 4 second recycle at full power
- Variable Power
- 3 f/stop Variable Overall Power Control
- Flash Distribution
- Asymmetrical Selector multiplies head power combinations over the 6 head outlets, including 2 special high power outlets capable of providing 4800 w/s to 206VF light unit.
- Arc Proof Outlets
- Plug or unplug any of the 6 lampheads without shutting down the power pack.
Heavy-duty rocker switches UPC: 689670188692 In the Box Speedotron 4803CX - 4800 Watt/Second Power Supply (120V) AC Power Cord 15' Sync Cable (13562) 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speedotron 4803CX - 4800 Watt Second Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeedotron 4803CX Specs | Maximum Watt/Seconds | 4800 | | Guide Number | 1000-540 @ ISO 100 in feet, with the SP206VF head, with reflector in forward, and back positions | | Recycle Time | 4.0 seconds @ Full Power | | Flash Duration | In Seconds:
w/206VF: 1/175 @full, 1/300 @half, 1/500 @quarter power, w/14202 adapter cable
w/105 (2 & 4 cable): 1/1175 @full, 1/2000 @half power | | Distribution | Symmetrical/Asymmetrical | | Head Outlets | 6 | | Flash Ready Indicator | Audible, LED | | Operating Voltage | 105-125V AC, 50/60Hz | | Built-in Slave Cell | None | | Circuit Protection | Circuit Breakers - One for flash, one for model light | | Dimensions | 9 x 14 x 14" (2.28 x 35.5 x 35.5 cm) | | Weight | 43 lb (17.2 kg) | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 18.4 x 17.7 x 11.2" |
