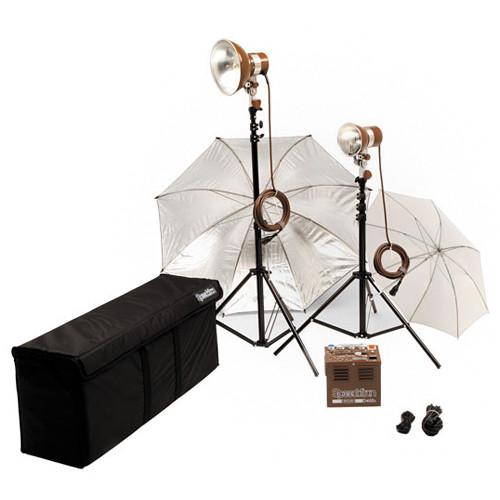

User Manual for Speedotron DM402 2 CC Head Kit - Includes: D402 - 400 W S Power Pack, 1 M90CC, 1 MW3UCC Flash Head, Umbrellas, Sync Cord, Light Stands, Case Click to enlarge the picture
Contents of the user manual for the Speedotron DM402 2 CC Head Kit
- Product category: Power Packs Speedotron
- Brand: Speedotron
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Speedotron Power Packs
 |
User manual for the Speedotron DM402 2 CC Head Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Speedotron product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Speedotron user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Speedotron product will considerably shorten its lifespan!
|

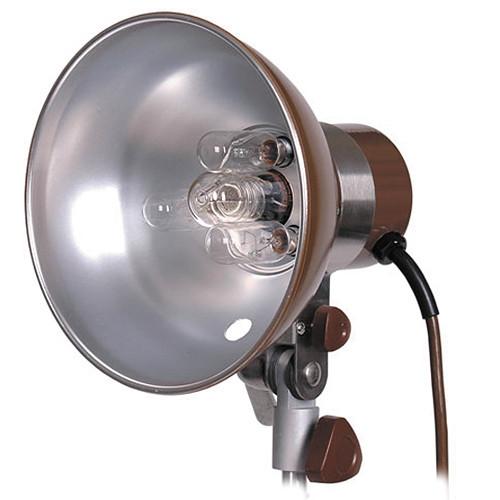

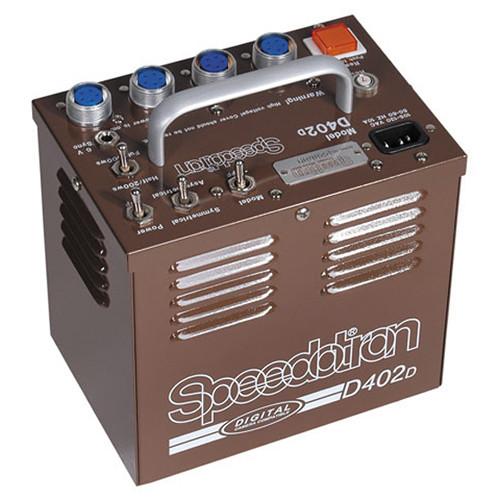

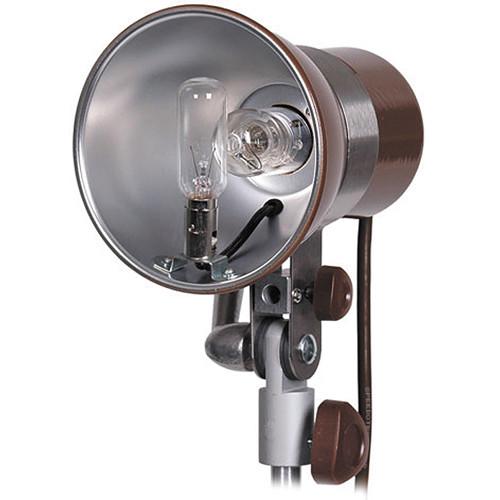

Product description The D402 power pack is at home in the studio or on the road. 400 w/s of power can be channeled symmetrically or asymmetrically to up to 4 heads. A half power switch is provided for even greater versatility. The D402 recycles in a quick 1.7 seconds. The M90CC flash head is equipped with a fixed 8.5" reflector. Accepts snoots, diffusers, gel holders, barndoors, and umbrellas for versatile light control. As an added plus for portrait work, the M90 uses three 25W lamps. This allows the models to look into the light without squinting and helps cut down on the amount of heat on the set. The MW3U flash head is designed to be used primarily as a hair light or background light; its small size makes it ideal for hiding on the set. Adapted for use with an umbrella. It can handle up to 400 w/s, and makes an excellent, affordable fill light. Since this head utilizes a bright 150W quartz halogen light, snoots and diffusers should not be used with this unit.This 2 head 400 w/s kit also includes a snoot, light stands and soft, padded travel case. - Excellent for location work.
- A circuit breaker is incorporated to ensure safe, trouble-free operation. The flash trigger circuit utilizes an extremely low current of approximately 45 microamps.
- 400 w/s of power can be channeled symmetrically, or asymmetrically to up to four heads. A 1/2 power switch is provided for even greater versatility.
The D402 recycles in a quick 1.7 seconds. - The flash heads are specifically designed without a fan with a small profile for easy positioning as a hair or background light
- Flash heads will accept umbrellas and barn doors.
- The "Plug-and-Play" UV coated flashtubes are inexpensive and easy to replace.

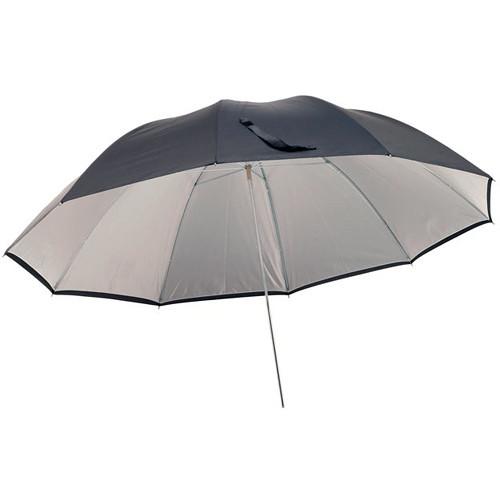

- The included umbrellas soften and broaden the light output.

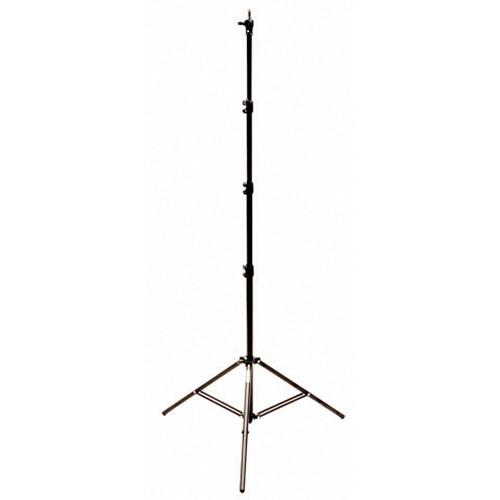

- The included light stands support the flash heads and accessories.
UPC: 689670189873 In the Box Speedotron DM402 2 CC Head Kit - Includes: D402 - 400 W/S Power Pack, 1 M90CC, 1 MW3UCC Flash Head, Umbrellas, Sync Cord, Light Stands, Case DM402 400 w/s power pack (21240), AC power cable M90CC Flash Head with: 8.5" Reflector (22212), includes:
UV corrected flashtube (24556), 3- 25W modeling lights (GBML25W) MW3UCC Flash Head With 5.5" Reflector (22208), includes:

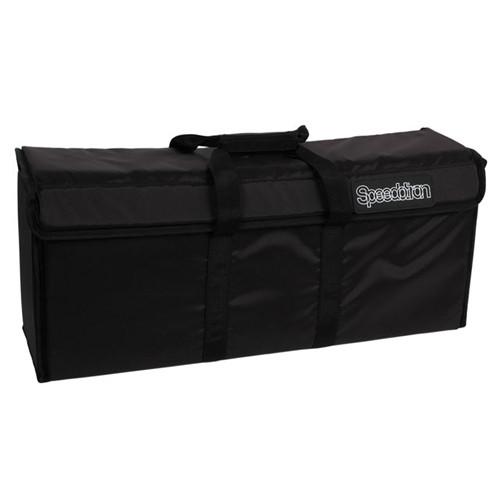

UV corrected flashtube (24556), 60W modeling light (GBML60W) 15' Sync Cord (13562) 34" Silver Umbrella (24536) 34" White Umbrella (24527) 2 x 7.5' Travel Light Stand (25562) 3 Section Soft Carrying Case (25533) 2 Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Speedotron DM402 2 CC Head Kit - Includes: D402 - 400 W S Power Pack, 1 M90CC, 1 MW3UCC Flash Head, Umbrellas, Sync Cord, Light Stands, Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpeedotron D402 Specs | Maximum Watt/Seconds | Power Pack and Flash Heads: 400 w/s | | Guide Number | 270 @ ISO 100 | | Recycle Time | 1.7 seconds @ full power | | Flash Duration | 1/715 sec. | | Head Outlets | 4 | | Flash Ready Indicator | Audible/LED | | Built-in Slave Cell | No | | Circuit Protection | Circuit Breaker | | Fan Cooled | No | | User Replaceable Flashtube | Yes, both flash heads: (24556) or (24555) | | Changeable Reflector | No | | Cable Length | 20' | | Modeling Light Wattage | M90CC Flash Head: 3- 25W (GBML25W)
MW3UCC Flash Head: 150W (GBETC) | | Protective Glass Dome | No | | Dimensions | Power Pack: 7.9 x 5.6 x 7.3" (20 x 14 x 18.5cm)
M90CC Flash Head: 6.5 x 8" (16.5 x 20.3cm) with built-on reflector
MW3UCC Flash Head: 6.5" x 5.5" (16.5 x 14cm) with reflector | | Weight | Power Pack: 11.4lbs (5.2kg)
M90CC Flash Head: 4.4lbs (2kg) with cord and reflector
MW3UCC Flash Head: 3.4lbs (1.5kg) with cord and reflector | | Kit Weight | 35.75lbs (16.25kg) | | | | Package Weight | 42.0 lb | | Box Dimensions (LxWxH) | 22.0 x 14.0 x 12.0" |
