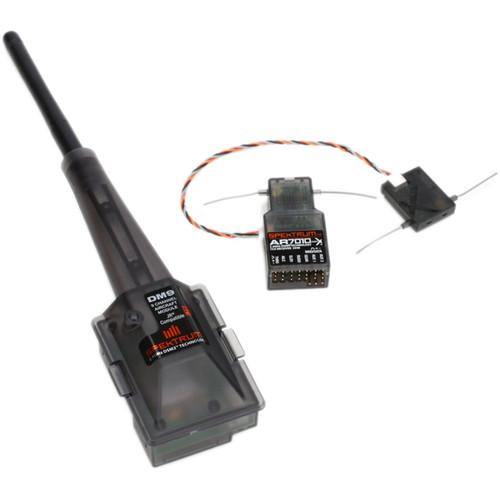

User Manual for Spektrum DSM2 AIRMOD with AR7010 7-Channel Receiver for JR Radios Click to enlarge the picture
Contents of the user manual for the Spektrum DSM2 AIRMOD with AR7010 7-Channel
- Product category: Remote Control Components Spektrum
- Brand: Spektrum
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spektrum Remote Control Components
|
User manual for the Spektrum DSM2 AIRMOD with AR7010 7-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spektrum product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spektrum user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spektrum product will considerably shorten its lifespan!
|
Product description With the DSM2 AIRMOD with AR7010 7-Channel Receiver for JR Radios from Spektrum you can upgrade an existing module-based JR radio to utilize Spektrum's DSM2 wireless technology. DSM2 utilizes a wideband 2.4 GHz signal that's meant to be received above the usual 2.4 GHz noise, helping to provide you with a more stable and reliable signal to your aircraft.
A full-range AR7010 7-channel receiver is also included, which is designed to be an ideal solution for helicopters and other remote aircraft. The one-piece integrated design makes for an easier installation, and a built-in button helps to simplify the binding process so you can get in the air quickly. - Additional Features
-
- Fail-safe system drives the throttle to preset position at loss of signal
- Rejects all outside RF sources such as cell phones, Wi-Fi systems, other transmitters, and more
- Impervious to model-generated RF signals such as those generated from noisy electric motors, metal-to-metal noise, or ignition systems
In the Box Spektrum DSM2 AIRMOD with AR7010 7-Channel Receiver for JR Radios AR7010 Receiver Remote Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spektrum DSM2 AIRMOD with AR7010 7-Channel Receiver for JR Radios in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpektrum SPMMSJR720 Specs | Number of Channels | 7 | | Modulation | DSM2 | | Wireless Band Used | 2.4 GHz (2.400 to 2.483 GHz) | | Gain | DSSS Coding Gain: 18 dB | | Current | Module: 200 mA
Receiver: 70 mA | | Voltage | Receiver Voltage Range: 3.5 to 9.0 VDC | | Servo | Channels: 9 x JR and 8 x Futaba
Channel Resolution: 1024 with 4x Oversampling |
