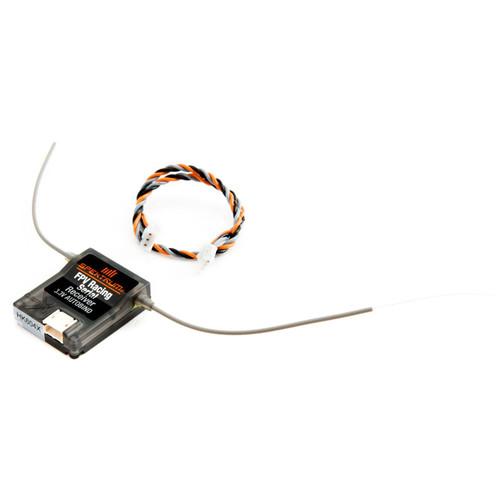

User Manual for Spektrum DSMX Quad Race Receiver Click to enlarge the picture
Contents of the user manual for the Spektrum DSMX Quad Race Receiver
- Product category: Remote Control Components Spektrum
- Brand: Spektrum
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spektrum Remote Control Components
|
User manual for the Spektrum DSMX Quad Race Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spektrum product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spektrum user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spektrum product will considerably shorten its lifespan!
|
Product description The DSMX Quad Race Receiver from Spektrum provides a high speed serial data connection with up to 20 channels. It is lightweight at 1.3 oz, suitable for even the smallest of applications. It also features Auto-Bind so you no longer need to carry a separate receiver to bind. Dual antennas provide receiver diversity for solid signal and the long coax antennas help to provide maximum signal strength in all orientations for challenging installations where carbon fiber, metal, and batteries shield the antenna. With the Spektrum DSMX 2.4GHz RF protocol, the receiver provides unsurpassed range and interference-free performance for quad racing. -
- Antenna diversity
- Auto-bind
- Serial port supports SRXL or Remote/Satellite Receiver
- 11 ms speed with exceptional range and interference-free operation
- Works with most flight controllers including the Naze32, CC3D, SP F3, and more (requires SRXL or Remote/Satellite connection)
UPC: 605482614372 In the Box Spektrum DSMX Quad Race Receiver Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spektrum DSMX Quad Race Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpektrum DSMX Specs | Type | Micro Serial Receiver | | Number of Channels | Up to 20 | | Modulation | DSM2/DSMX | | Band | 2.4 GHz | | Voltage Range | 3.3 V | | Antenna Length | 2.4" (62 mm) | | Dimension (L x W x H) | 1.0 x 0.8 x 0.3" (26 x 21 x 8 mm) | | Weight | 1.3 oz (3.6 g) | | | | Package Weight | 0.01 lb | | Box Dimensions (LxWxH) | 0.8 x 0.4 x 0.02" |
