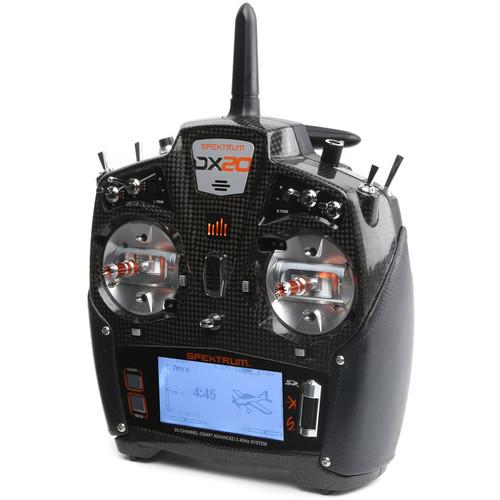

User Manual for Spektrum DX20 20-Channel DSMX Mode 2 Transmitter with AR9020 Receiver Click to enlarge the picture
Contents of the user manual for the Spektrum DX20 20-Channel DSMX Mode 2
- Product category: Remote Control Components Spektrum
- Brand: Spektrum
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spektrum Remote Control Components
|
User manual for the Spektrum DX20 20-Channel DSMX Mode 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spektrum product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spektrum user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spektrum product will considerably shorten its lifespan!
|
Product description The Spektrum DX20 20-Channel DSMX Mode 2 Transmitter features AirWare software that gives expert pilots all the programming features they require. The software’s intuitive SimpleScroll interface helps you to easily navigate menus and change settings. The airplane programming includes a multi-engine control option that, when activated, allows you to independently adjust and control up to 4 engines or motors. You could use it to make individual run-up checks on the ground or sync propeller speeds in flight. It also enables the usage of asymmetric thrust to tighten the turning radius of large models during ground operations. When active, the ProTrim function allows you to make small dual rate, expo, mix, and differential adjustments in flight.
With voice alerts, you can keep tab on important functions without ever taking your eyes off what you’re flying. They can be programmed to call out what flight mode you’ve chosen or report telemetry information on demand. If an alarm goes off, you won’t have to look at the transmitter display to see what’s happening.
In addition to extensive airplane and heli programming, the DX20 offers a host of sailplane programming features such as 10 flight modes, 5 wing types, 3 tail types, 2 motor types, and flap delay with elevator compensation. You even have the ability to adjust individual servo characteristics (end points, travel, center, etc.) for all 20 channels. Built-in Sequencer allows you to program a sequence of switch-activated events with time delays between each event.
Built-in Servo Balancer allows you to precisely balance the output of swashplate servos or multiple servos on a single control surface with the transmitter using a 7-point curve mix.
The Wireless Trainer Link technology gives DX20 users the ability to wirelessly link up with other Spektrum transmitters and Spektrum FPV headsets. Once bound to another transmitter or component, the ModelMatch technology will allow the DX20 to re-link without having to go through the binding process again.
With Wireless Trainer Link, you can wirelessly ''buddy box'' with another DSM2/DSMX transmitter when teaching someone to fly. You can assign gimbal functions to a 2nd ‘camera’ transmitter when flying a camera drone so you can focus on avoiding obstacles and maintaining visual contact while someone else lines up the shot. In addition, you can also link with specially-equipped Spektrum FPV headsets to wirelessly control head tracking and remotely change video frequencies on the fly.
With 250-model memory capacity, you don’t have to frequently juggle models between transmitter memory and your SD card. The model memory menu is easier to navigate and only memory slots with model settings saved to them will appear. You won't have to scroll through empty slots or move models around if one is deleted. Thanks to the AirWare software, you can share model setups across platforms with any Spektrum pilot. You can register your DX20 and receive alerts whenever Spektrum Airware software updates are available.
You can also gain access to a growing library of pre-set model setups for Horizon Hobby aircraft. The DX20 system comes with a variety of programming functions to fly everything from collective pitch helis and multi-rotor aircraft, to competition sailplanes and giant-scale jets. In addition, the system also includes the AR9020 receiver with X-Plus technology. The X-Plus allows you to add up to eight extra channels with the SPMXP8000 X-Plus channel expansion module (sold separately). Just plug the module into the receiver, bind it, and then assign the extra channels to any function you want.
Built-in telemetry gives you real-time information on things like your model's battery voltage, signal quality, engine or motor temperature, airspeed, altitude and more. You can have the DX20 recite this information on demand using programmable voice alerts. You also have the option of logging telemetry data to the transmitter’s SD card for review after the flight.
To use the telemetry function, your model must be equipped with a Spektrum telemetry module and telemetry sensors (all sold separately). You can use the Spektrum telemetry sensors for tracking any model function with new functions being added in future. Design and Performance - Machined-aluminum, quad-bearing gimbals
- Interchangeable leather side grips
- 20 fully-proportional channels
- Includes aluminum dual air transmitter stand-up case
- Independent multi-engine control for airplanes
- ProTrim in-flight adjustment of rates, expo, mixes, and differential
- 11 ms frame rates with capable receivers
- Built-in telemetry with vibe or voice alerts
- Throttle start or switch start timer
- 4000mAh LiPo transmitter battery
- X-Plus technology with expandability up to 20 channels
- Large, backlit LCD screen
- Includes AR9020 9-channel DSMX receiver
- Includes 3 stick end sets
- 5 Menu Languages - EN, DE, FR, IT and ES
- Selectable language options
- Region settings for global compliance
- User-adjustable mode configurations (1, 2, 3 or 4)
- User-assigned switch functions
- Intuitive SimpleScroll programming interface
- Adjustable stick length and tension
Programming Features Airplane - 11 Wing Types: 1 Aileron, 2 Aileron, Flaperon, 1 Aileron + 1 Flap, 1 Aileron + 2 Flap, 2 Aileron + 1 Flap, 2 Aileron + 2 Flap, Elevon, Elevon B, 4 Aileron, and 6 Aileron
- 6 Tail Types: Normal, V-Tail A, V-Tail B, 2 Elevator, 2 Rudder, 2 Rudder + 2 Elevator
- 2 Canard Options with Elevon Wing Types: Canard + 1 Rudder, Canard + 2 Rudder
- Independent multi-engine control for up to 4 engines or motors
- ProTrim in-flight adjustment of rates, expo, mixes, and differential
- Flap delay and elevator compensation
Helicopter - Active gyro and governor trim
- 7 Swash Plate Types: Normal, 3-Servo 120°, 3-Servo 135°, 3-Servo 140°, 3-Servo 90°, 4-Servo 90°, and 2-Servo 180°
- ProTrim in-flight adjustment of rates, expo, mixes, and differential
Sailplane - 5 Wing Types: Single Aileron, Dual Aileron, Dual Aileron + Single Flap, Dual Aileron + Dual Flap, Quad Aileron + Dual Flap
- 3 Tail Types: Normal, V-Tail A, V-Tail B
- Motor throttle switch assignment
- Aileron and V-tail differential
- ProTrim in-flight adjustment of rates, expo, mixes, and differential
- Flap delay and elevator compensation
Multirotor - Multirotor Channel Inputs: ALT (Altitude), ROL (Roll), PIT (Pitch), and YAW
- Multirotor checklists, warnings and voice alerts
- Simplified multirotor flight mode setup and switch assignment
UPC: 605482626641 In the Box Spektrum DX20 20-Channel DSMX Mode 2 Transmitter with AR9020 Receiver 3 x Stick End Set (Short, Medium, and Long) AR9020 9-Channel DSMX X-Plus Receiver awfbvqadwxyswutxbd Aluminum Dual Air Transmitter Stand-Up Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Spektrum DX20 20-Channel DSMX Mode 2 Transmitter with AR9020 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpektrum DX20 Specs | Band | 2.4 GHz | | Channels | 20 | | Frame Rate | 11 ms with capable receivers | | Model Memory | 250 | | Model Type | Multirotor, Sailplane, Helicopter, and Airplane | | Modes | Mode 3, Mode 4, Mode 1, Mode 2 | | Modulation | DSMX | | Range | Full | | Receiver | AR9020 9-channel DSMX | | Resolution | 2048 | | Memory Slots | SD | | Compatibility | Airware and telemetry | | Battery Type | Transmitter: 4000 mAh LiPo | | Dimensions | Not specified by the manufacturer | | Weight | Not specified by the manufacturer | | | | Package Weight | 11.875 lb | | Box Dimensions (LxWxH) | 14.9 x 14.3 x 10.75" |
