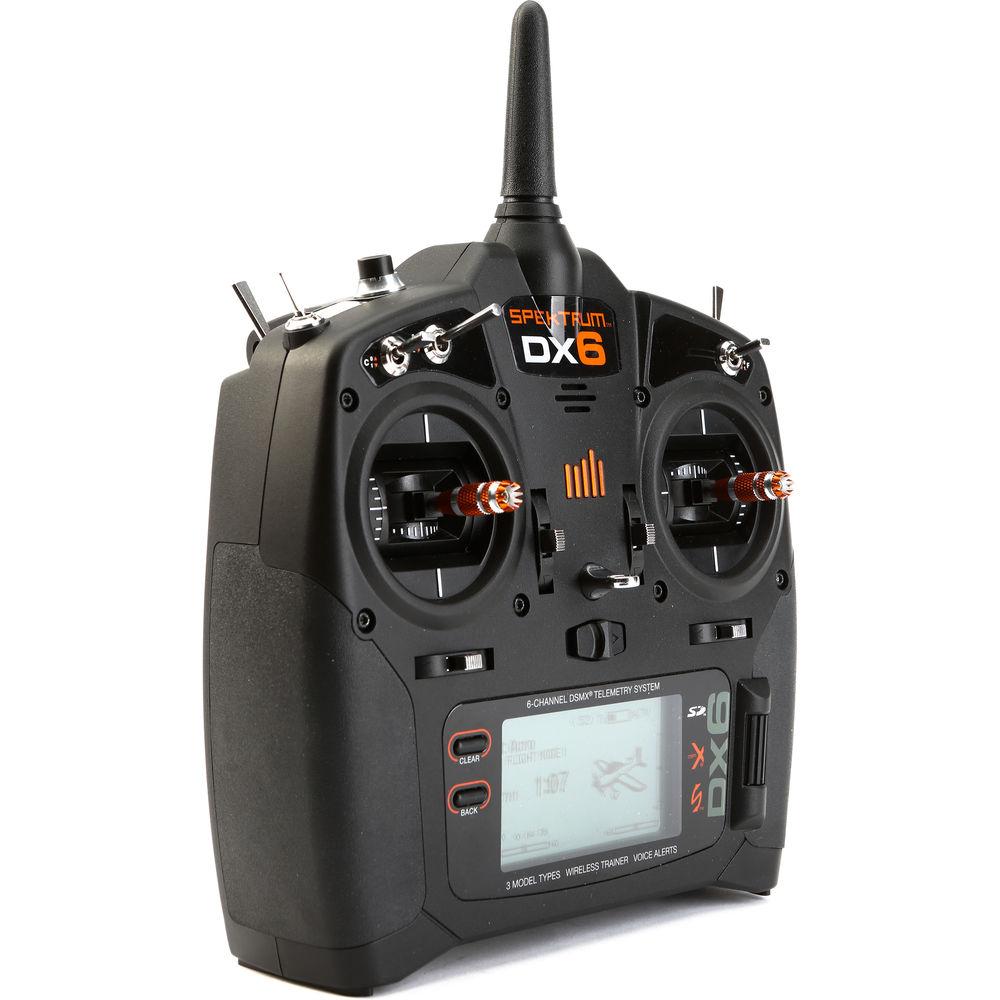

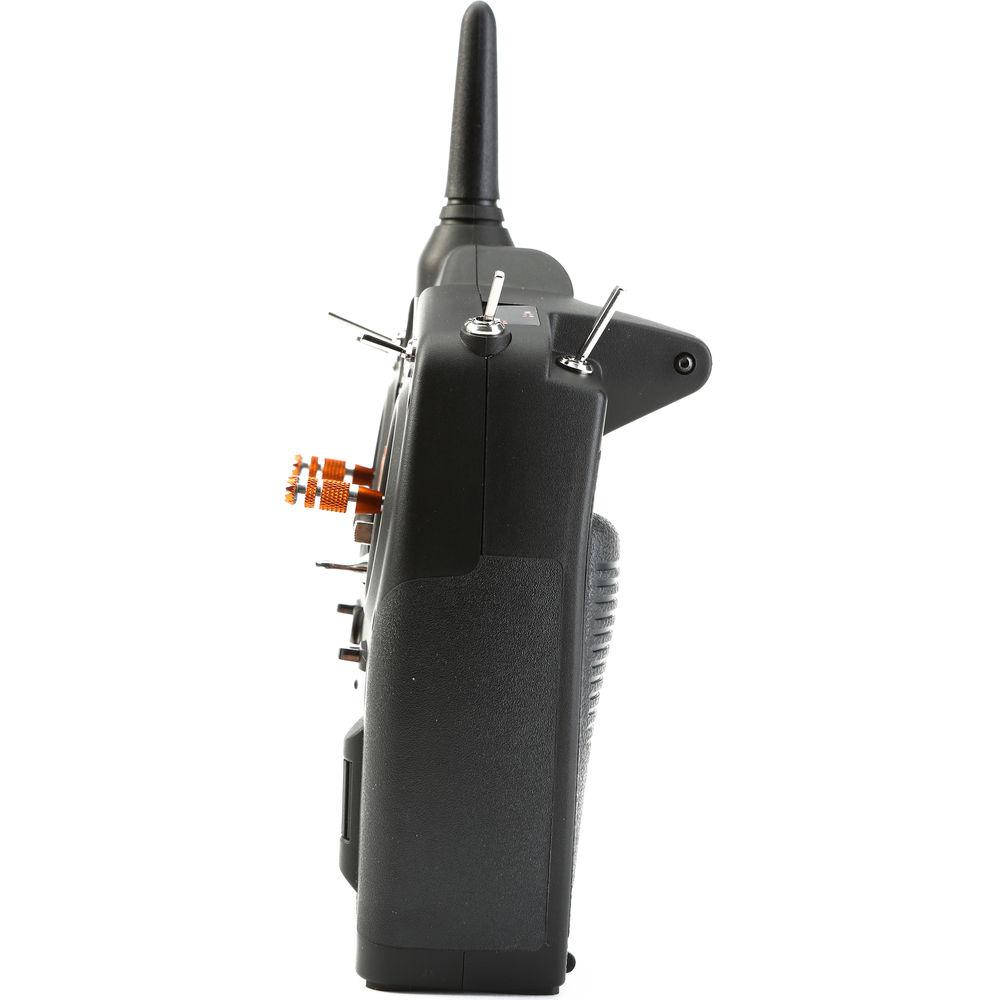

User Manual for Spektrum DX6 6-Channel DSMX Transmitter for RC Aircraft Click to enlarge the picture
Contents of the user manual for the Spektrum DX6 6-Channel DSMX Transmitter for
- Product category: Remote Control Components Spektrum
- Brand: Spektrum
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Spektrum Remote Control Components
 |
User manual for the Spektrum DX6 6-Channel DSMX Transmitter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Spektrum product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Spektrum user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Spektrum product will considerably shorten its lifespan!
|
Product description The Spektrum DX6 6-Channel DSMX Transmitter is a radio controller designed primarily for RC aircraft, including helis, airplanes, and sailplanes. It can also be used to operate some terrestrial RC vehicles as well as certain 2- and 3-axis gimbal stabilizers for video cameras. The transmitter supports control Mode 2 only, which is the most widely used mode in the U.S., putting the throttle on the left. It features memory spaces for 250 models, and there is an SD card slot for increasing memory capacity, transferring settings from other transmitters or a computer, and updating the firmware (card available separately). A wireless trainer link allows the DX6 to be bound with a second transmitter so that an instructor can quickly take over when necessary during a class. The transmitter is DSMX/DSMX-compatible and uses a 2.4 GHz-band radio.
Four AA batteries are included, or you can use a rechargeable battery pack (available separately) to power the transmitter. - Programmable Voice Alerts
- With voice alerts, the DX6 will allow you to keep tabs on important functions without ever taking your eyes off the aircraft. They can be programmed to call out what flight mode you're in, or report telemetry information – such as remaining battery power – on demand
- Airplane, Helicopter, and Sailplane Programming
- In addition to its extensive airplane and heli programming, the DX6 includes number of programming features for sailplanes as well. These include five available flight modes, four wing types, three tail types, a flap-to-elevator curve mix, and more. The SimpleScroll programming interface helps make accessing and changing programming settings fast and intuitive
- Wireless Trainer Link
- The wireless trainer link gives instructors the option to wirelessly "buddy box" with another DSM2/DSMX transmitter. Once bound to another transmitter, ModelMatch technology will allow the DX6 to re-link without having to go through the bind process again
- 250 Model Memory
- Save settings for up to 250 models within the DX6 – and if you ever run out of space or need to import settings from elsewhere, you can use an SD memory card (available separately). Navigation has been simplified to make settings easier to find – only memory slots with model settings saved to them will appear. You won't have to scroll through empty slots or move models around if one is deleted
- Built-In Telemetry with Voice Alerts
- The DX6 is equipped with a built-in telemetry feature that gives you real-time information on flight parameters, including your aircraft's battery voltage, signal quality, engine or motor temperature, airspeed, altitude, and more
Using the voice alert system, you can program the DX6 to tell you when specific telemetry values reach or exceed limits you define. You can also have it call out a sequence of telemetry values on demand with the flip of a switch. If you want to review telemetry after a flight, the DX6 can be set up to record the data to an SD card (available separately) Additional Features - Ergonomically designed case with rubber grips
- Direct System Menu Access means there is no need to power off the transmitter to access all menus
- Features AirWare programming software

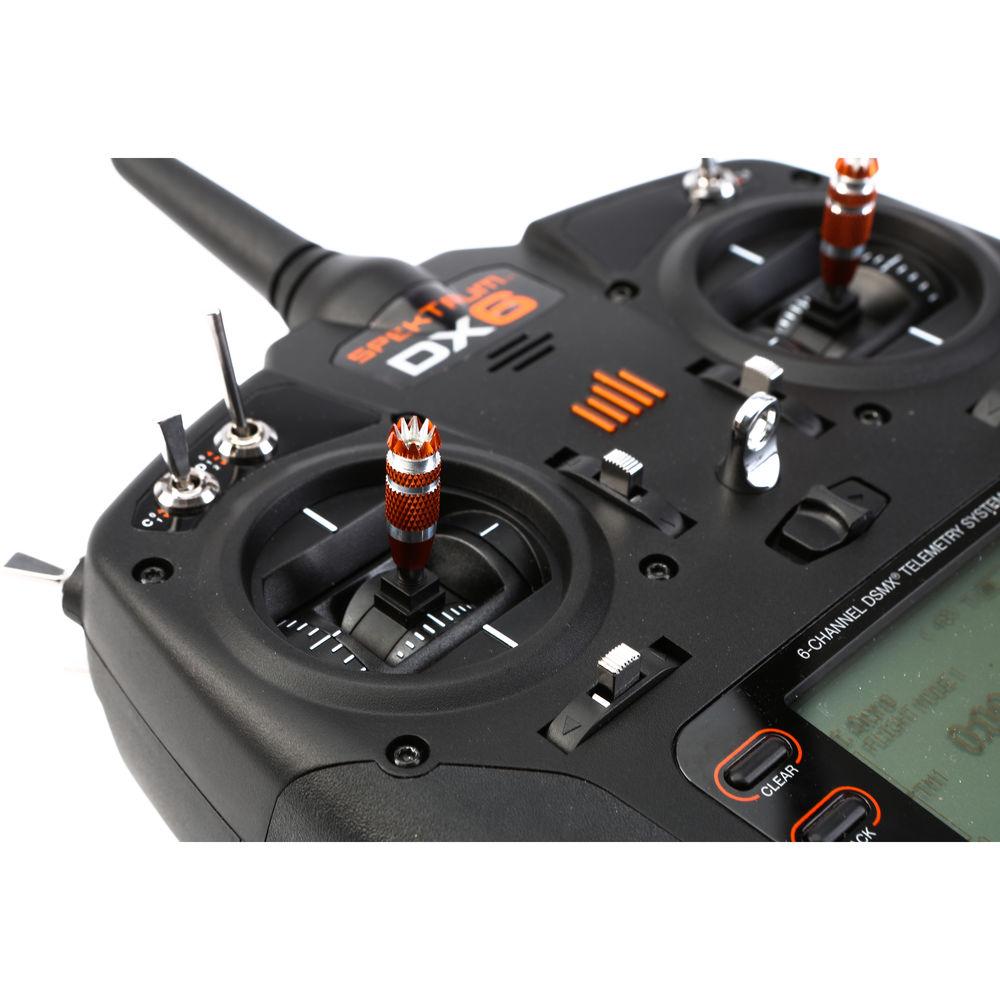

- Four bearing gimbals for smoother, more precise piloting
- Supports most Spektrum Telemetry sensors
- Five programmable mixes - all mixes are selectable to be normal or 7-point curve multi-point mixes
- Dual aileron, elevon, and V-tail differential
- Seven aircraft wing types and six tail types
- 7-point throttle (air and heli) and pitch curves (heli) adjustable for smooth maneuvering
- Supports DSMX and DSM2 radio technology
- Activate bind mode from the menu or a button without having to power OFF
- Includes 4 AA Alkaline batteries; optional lithium-ion battery and charger are available separately
UPC: 605482611357 In the Box Spektrum DX6 6-Channel DSMX Transmitter for RC Aircraft (Mode 2 Only) 4 x AA Alkaline Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Spektrum DX6 6-Channel DSMX Transmitter for RC Aircraft in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSpektrum DX6 Specs | Modulation | DSM2 / DSMX | | Band | 2.4 GHz | | Number of Channels | 6 | | Model Memory | 250 models | | Expansion Slot | 1 x SD card slot for firmware updates, expanding memory, and sharing setups | | Control Modes | Mode 2 only | | Experience Level | Intermediate | | Power Requirements | 4 x AA batteries | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 12.1 x 9.4 x 5.6" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 72 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Spektrum DX6 6-Channel DSMX Transmitter for RC Aircraft
| Subject: looking for DX6 spectrum manual | | Date: 16.02.2021 23:09:08 | Name: Elton Palmer | | cant find my manual and cant get a new plane spectrum twin otter to bind to it. I tried to find it on my computer and had no success. | | Post reply |
